DeviceNet is a kind of network protocols based on the CAN bus and mainly used for the embedded network of machine control, such as industrial machine control, aircraft engines monitoring, factory automation, medical equipments control, remote data acquisition, environmental monitoring, and packaging machines control, etc.

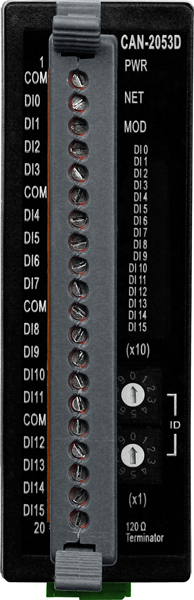

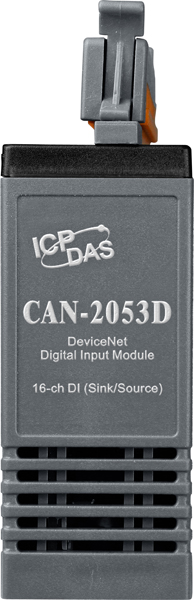

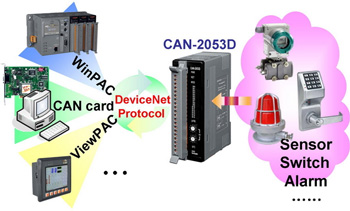

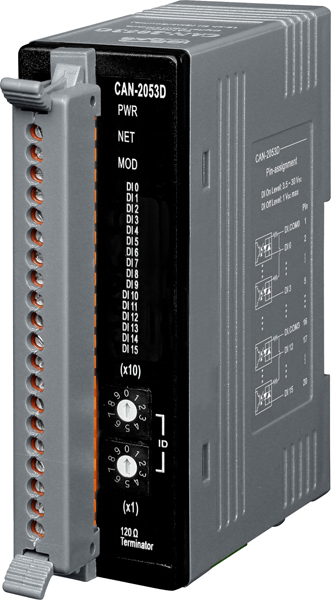

The CAN-2053D follows DeviceNet specification Volume I/II, Release 2.0. Users can get access to the digital input status and configure via DeviceNet EDS file. CAN-2053D has 16-channel isolated sink/source input and it can be used for various applications, such as PNP, NPN, TTL, relay contact and so forth. Using the DeviceNet master devices of ICP DAS, you can quickly build a DeviceNet network to approach your requirements.
DeviceNet Interface |
|
DeviceNet Specification |
Volume I, Release 2.0 & Volume II, Release 2.0, Errata5 |
DeviceNet subscribe |
Group 2 Only Server |
Connection supported |
1 connection for Explicit Messaging 1 connection for Polled I/O 1 connection for Bit-Strobe I/O |
Baud Rate Setting by Rotary Switch |
125 kbps, 250 kbps, 500 kbps |
Node ID Setting by Rotary Switch |
0 ~ 63 |
Heartbeat message |
Yes |
Shutdown message |
Yes |
Terminator Resistor |
Switch for 120 Ω terminator resistor |
Connector |

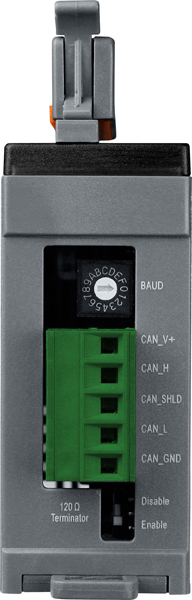

5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
EDS file |
Yes |
LED |
PWR/NET/MOD |
Digital Input |
|
Channels |
16 (Sink/Source) |
ON Voltage Level |
+3.5 ~ +30 VDC |
OFF Voltage Level |
+1 VDC Max. |
Input Impedance |
3 kΩ, 0.3 W |
Intra-module Isolation |
3750 Vrms |
ESD Protection |
4 kV contact for each channel |
LED |
|
DeviceNet Status |
3 LEDs for PWR/NET/MOD |
Terminal Resister |
1 LED as terminal resister indicators |
DI LED |
16 LEDs as digital input indicators |
Power |
|
Power Supply |
Unregulated +10 ~ +30 VDC |
Power Consumption |
1.5 W |
Mechanism |
|
Installation |
DIN-Rail |
Dimensions |
32.3 mm x 99 mm x 77.5 mm ( W x L x H ) |
Environment |
|
Operating Temp. |
-25 ~ 75 ℃ |
Storage Temp. |
-30 ~ 80 ℃ |
Humidity |
10 ~ 90% RH, non-condensing |
