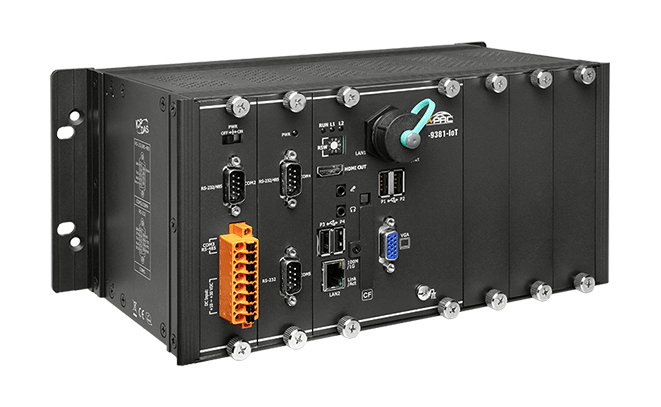

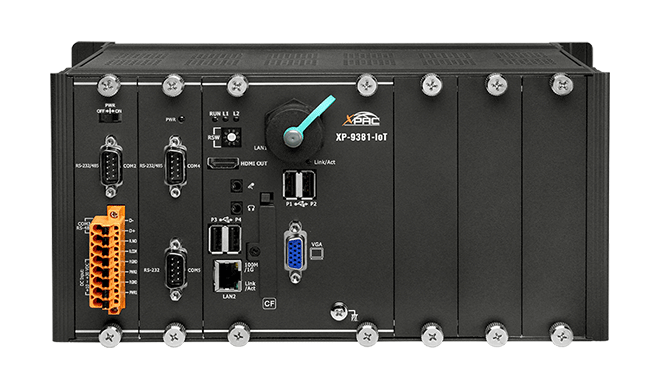

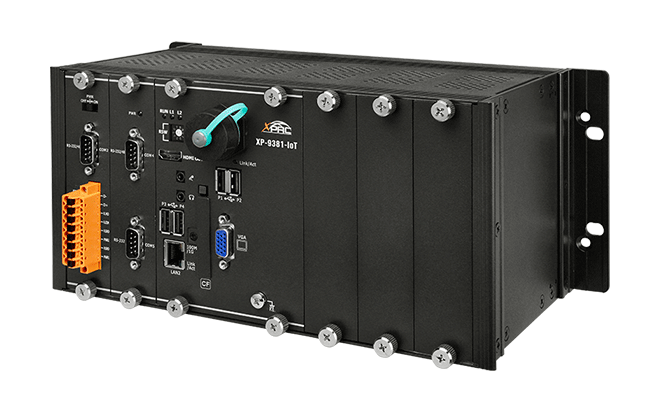

The XP-9381-IoT are Windows 10 IoT Enterprise based PACs that combine computing, I/O, and operator interface into a single unit, and provide a perfect solution to integrate HMI, data acquisition and control in an individual PAC. It is equipped with an Intel E3845 CPU, 7 I/O expansion slots and a variety of connectives including dual Gigabit Ethernet, VGA , USB port, RS-232 and RS-485 interfaces. Local I/O slots are available for use with our I-9K and I-97K series I/O modules. And remote I/O expansions are available for use with Ethernet I/O modules or RS-485 I/O modules.
| Software | |
| OS | Windows 10 IoT Enterprise (64-bit) |
| Service | IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script) |
| Framework Support | .Net Framework 3.5 ~ 4.8 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net |
| Main Unit | |
| CPU | E3845, 1.91 GHz, 64-bit quad core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 4 GB DDR3 SDRAM, 64 GB Flash |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Storage | 64 GB SSD, 32 GB CF card |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
| Signal | VGA, HDMI |
| Resolution | VGA 1280 x 1024 ~ 1920 x 1080 (16 : 9), 640 x 480 ~ 1024 x 768 (4 : 3) HDMI 2560 x 1600 @ 24bpp |
| LED Indicators | |
| Status | 1 x System, 2 x Power, 2 x Programmable |
| I/O Expansion | |
| I/O Type | I-9K, I-97K series |
| Slots | 3 |
| COM Ports | |
| Ports | 1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated) |
| HMI | |
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
| Cable | Microphone-in and Earphone-out |
| Ethernet | |
| Ports | 2 x RJ-45, 10/100/1000 Base-TX |
| USB | |
| Ports | 4 x USB 2.0 |
| Power | |
| Input Range | +10 VDC ~ +30 VDC |
| Redundant Power Inputs | Yes |
| Consumption | 18.7 W |
| Mechanical | |
| Dimensions (mm) | 300 x 164 x 133 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environmental | |
| Operating Temperature | -25 ~ +60°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
