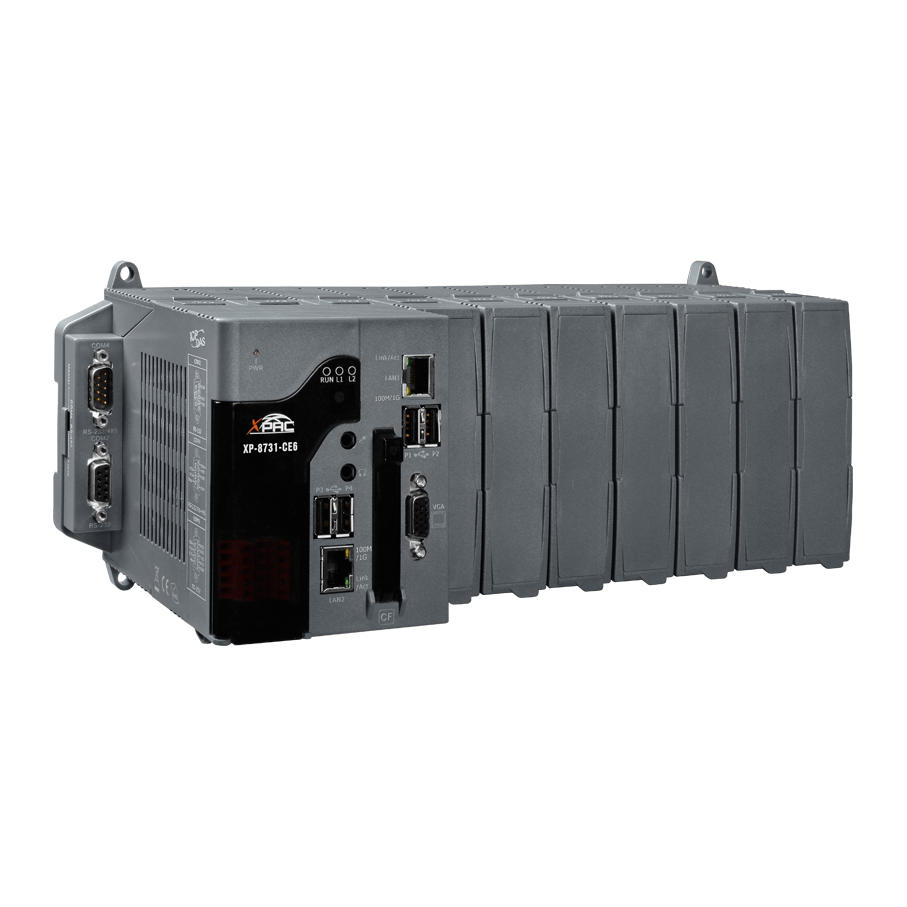

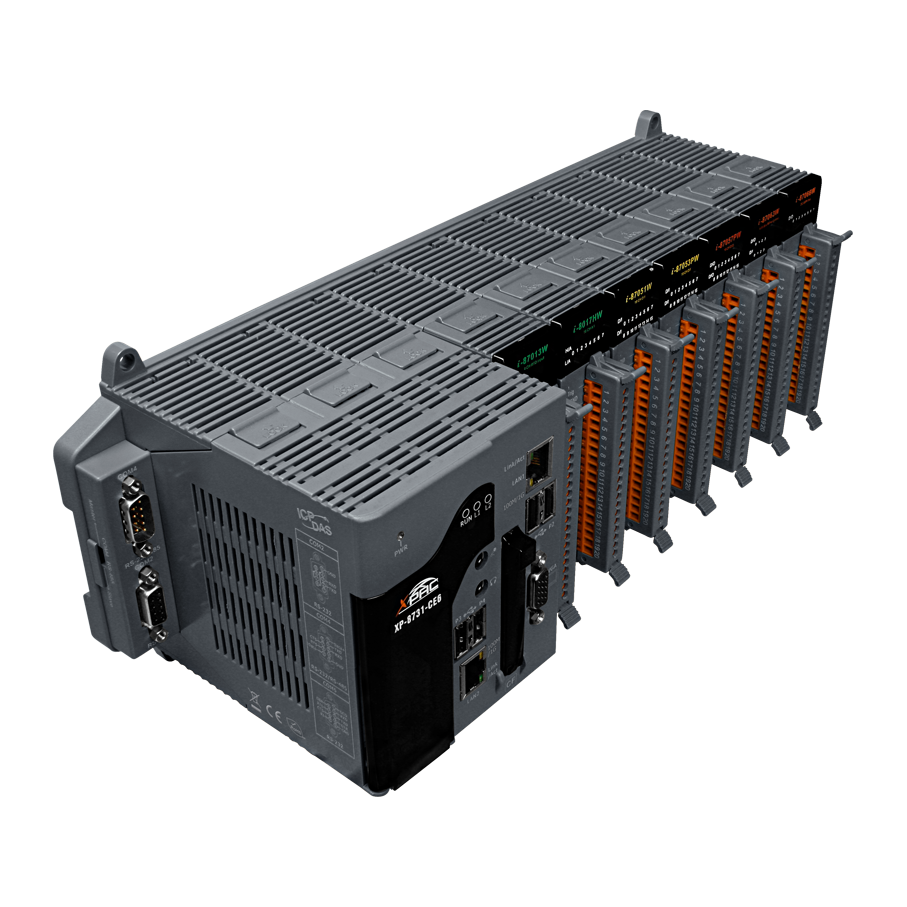

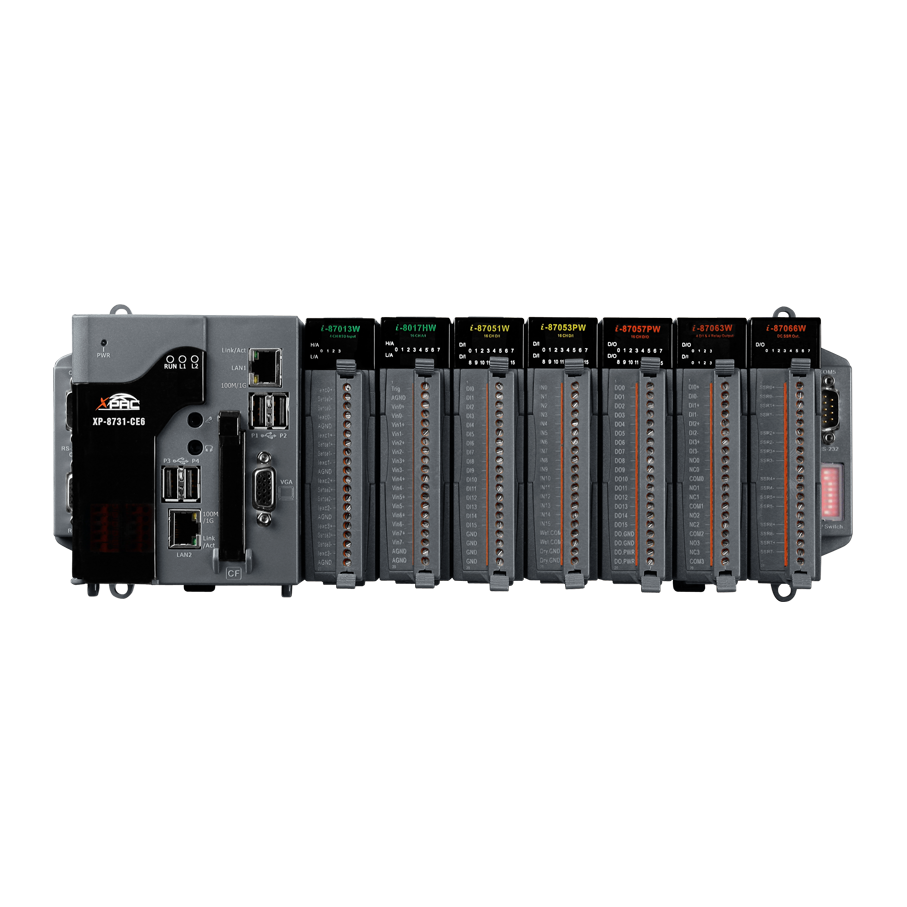

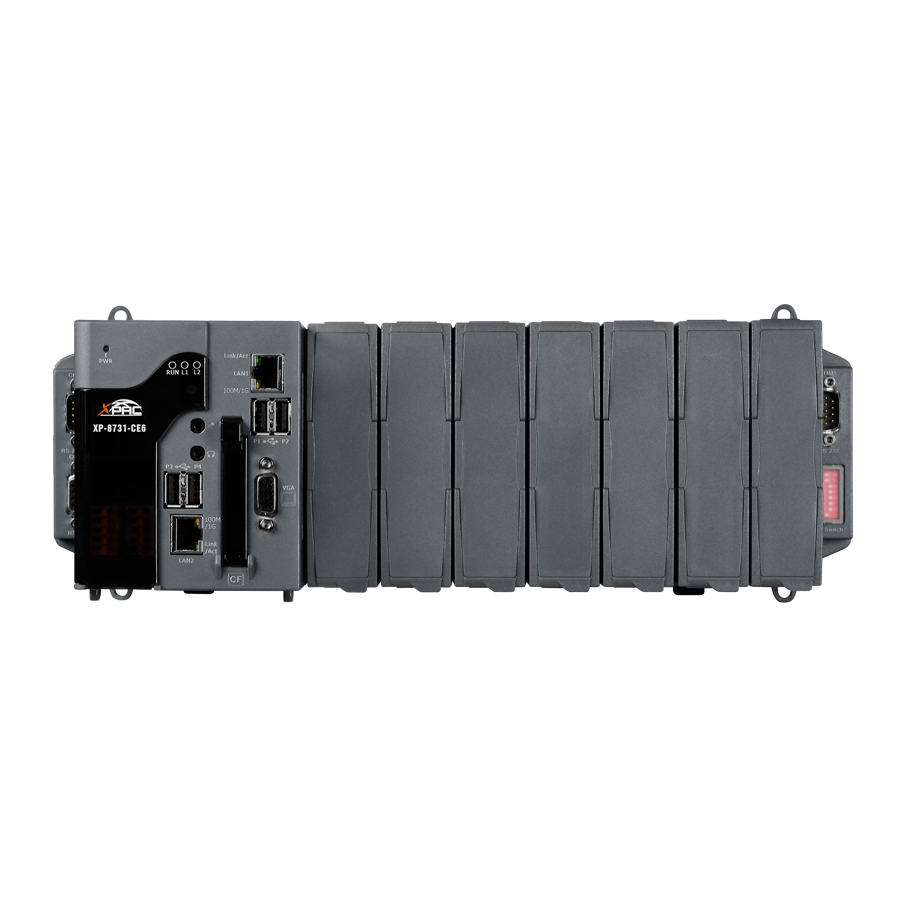

XP-8731-CE6 is the new generation Windows CE 6.0 based PACs of ICP DAS. It is equipped with an x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet RS-232/485) and 7 I/O slots for high performance parallel I/O modules (high profile I-8K Series) and serial I/O modules (high profile I-87K series). The benefits of running Windows CE 6.0 on XPAC include hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level and achievable deterministic control. XPAC is also capable of running PC-based control software such as Visual Basic .NET, Visual C#, …. etc. It has all of the best features of both traditional PLCs and Windows capable PCs.
System Software
OS
Windows CE 6.0
.Net Compact Framework
3.5
Embedded Service
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5
SDK Provided
Dll for Visual Studio .NET 2005/2008
Multi-Language Support
English, German, French, Spanish, Russian, Italian, Japanese, Simplified Chinese, Traditional Chinese
CPU Module
CPU
x86 CPU, 1 GHz, dual-core
SDRAM
2 GB DDR3 SDRAM
Non-volatile Memory, MRAM
512 KB (retain memory without battery support)
Flash
32 GB
EEPROM
16 KB
Data Retention: 40 years; 1,000,000 erase/write cycles
CF Card
8 GB (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator
2
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes
Rotary Switch
Yes (0 ~ 9)
DIP Switch
Yes (8 bits)
Audio
Microphone-In and Earphone-Out
VGA & Communication Ports
VGA
Yes, (resolution: 1024 x 768, 800 x 600, 640 x 480)
Ethernet (Giga bit)
RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0
4
COM 1
Internal communication with the high profile I-87K series modules in slots
COM 2
RS-232 (RxD, TxD and GND); non-isolated
COM 3
RS-485
D2+, D2-; self-tuner ASIC inside
Isolation
3000 VDC
COM 4
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number
7
Mechanical
Dimensions (W x L x H), unit: mm
355 mm x 132 mm x 125 mm
Installation
DIN-Rail or Wall Mounting
Environmental
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH,non-condensing
Power
Input Range
+10 ~ +30 VDC
Isolation
1 kV
Redundant Power Inputs
Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity
4.0 A, 5 V supply to CPU and backplane, 3.0 A, 5 V supply to I/O expansion slots, 35 W in total
Consumption
18 W (0.75 A @ 24 VDC)
