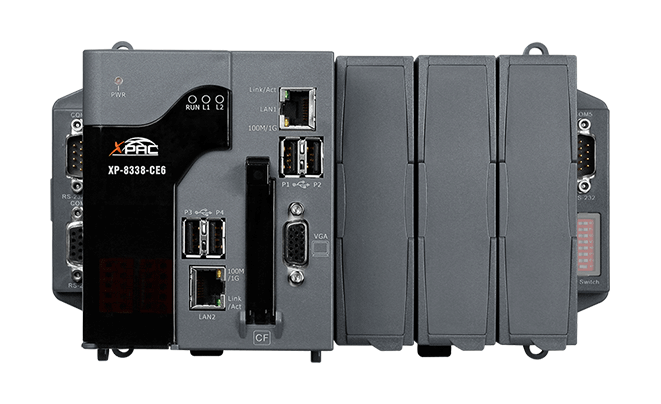

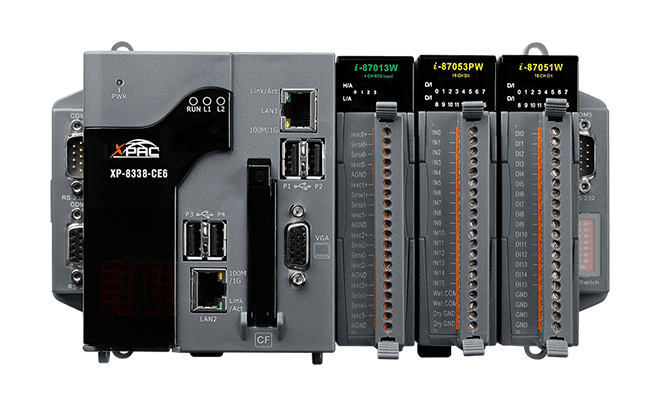

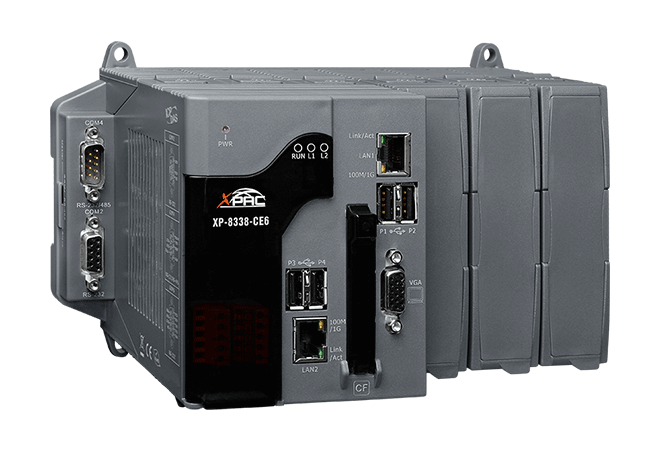

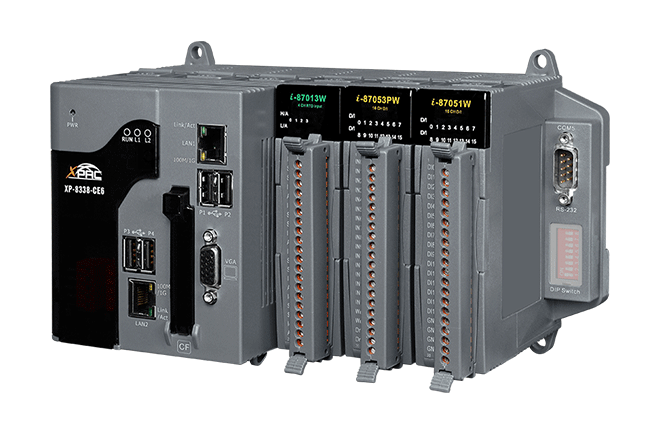

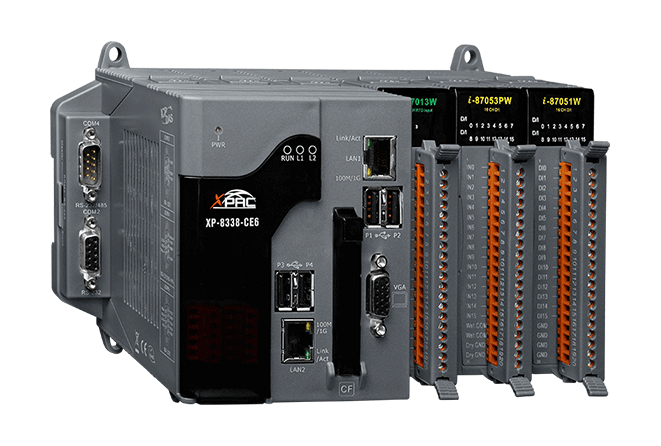

The Win-GRAF XPAC-8000-CE6 Series, XP-8338-CE6, is the new generation WinCE 6.0 based Win-GRAF XPAC-CE6 (Programmable Automation Controller) from ICP DAS. The XP-8338-CE6 is equipped with (1 GHz) dual-core running Windows CE 6.0 operating system, a variety of input/output ports (VGA, USB, Ethernet, RS-232/485), and a 1 I/O slot that can be used to integrate high performance parallel I/O modules (high profile I-8K Series) or serial I/O modules (high profile I-87K series)
The benefits of running Windows CE 6.0 on a XPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications.
Win-GRAF is a powerful, PLC-like, softlogic development software. It is installed on PC with windows 7 or 8. It supports the international PLC language standard - IEC 61131-3 - Ladder Diagram (LD), Function Block Diagram (FBD), Sequential Function Chart (SFC), Structured Text (ST), Instruction Set (IL), suitable to develop applications for the full range of Win-GRAF PACs from ICP DAS.
| Software | |
|---|---|
| OS | Windows CE 6.0 |
| Protocol | NET ID Redundancy Solution eLogger HMI Modbus TCP/IP Master Modbus TCP/IP Slave Modbus RTU/ASCII Master Modbus RTU Slave DCON Protocol User-defined Protocol I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O Local I/O Modules Application Protection Data Binding On Line Change HART Master Protocol Schedule Control Retain Variables File Access and Data Log |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Japanese, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2005/2008 |
| Main Unit | |
|---|---|
| CPU | x86 CPU, 1.0 GHz, dual-core |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 2 GB DDR3 SDRAM |
| Storage | 32 GB Flash, 8 GB CF card (up to 32 GB) |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB MRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 640 480, 800 480, 800 600, 1024 768 |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485 |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| DIP Switch | 8-bit for address |
| Audio | |
|---|---|
| Cable | Microphone-in and Earphone-out |
| Ethernet | |
|---|---|
| Ports | 2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB | |
|---|---|
| Ports | 4 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Redundant Power Inputs | Yes |
| Consumption | 16.8 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 231 x 132 x 125 (W x L x H) |
| Installation | DIN-Rail, Wall mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -30 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
