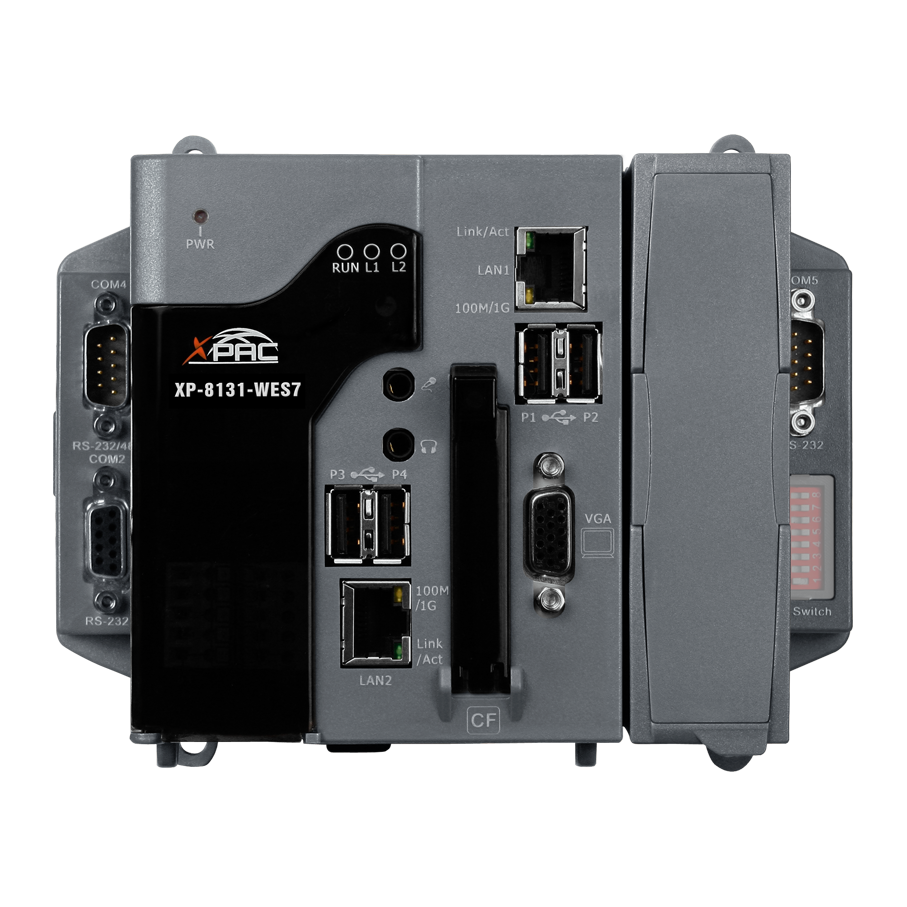

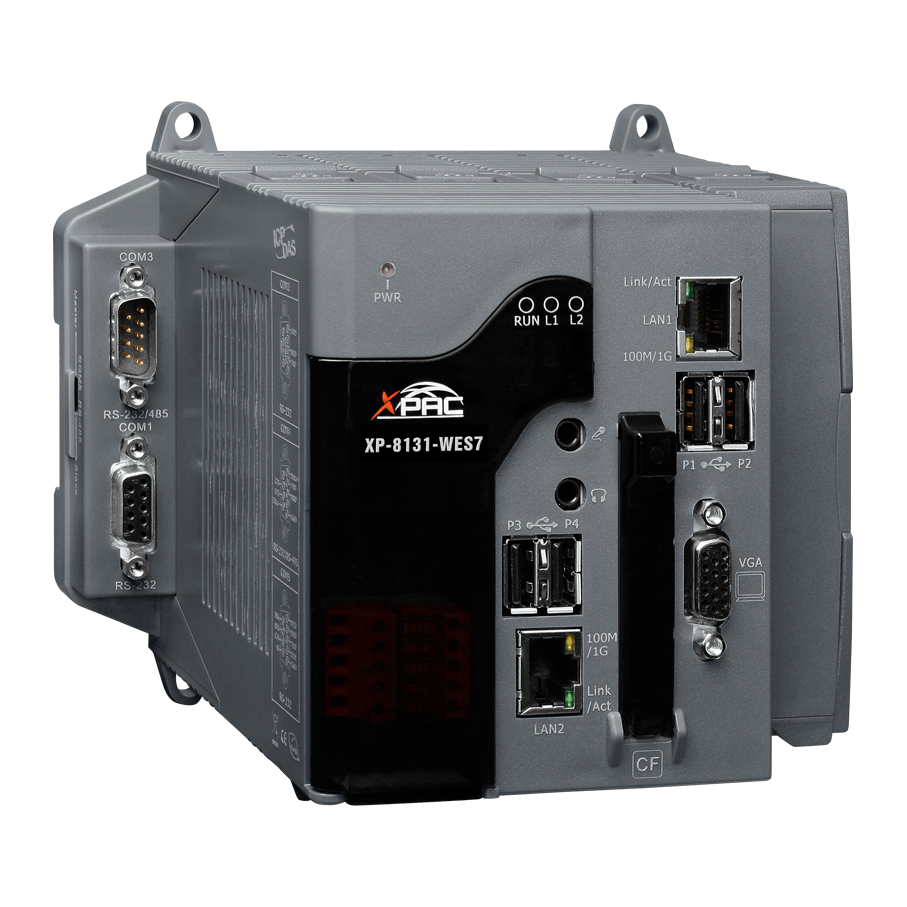

XP-8131-WES7 is a Windows Embedded Standard based PACs developed by ICP DAS. XP-8131-WES7 is equipped with a x86 CPU (1 GHz, dual-core), various connectivity (VGA, USB, Ethernet, RS-232/485) and 1 I/O slot for high performance parallel I/O modules. The operating system is pre-installed in the built-in mSATA SSD, and the storage can be expanded via a Compact Flash slot. XPAC is capable of running PC-based control software such as Visual Basic .NET, Visual C#,etc. The XP-8131-WES7 has all of the best features of both traditional PLCs and Windows capable PCs.
System Software
OS
Microsoft Windows Embedded Standard 7
.Net Compact Framework
4.5
Embedded Service
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
SDK Provided
Dll for VC, Dll for Visual Studio.Net
Multi-Language Support
English, German, French, Spanish, Russian, Italian, Portuguese, Korean, Japanese, Simplified Chinese, Traditional Chinese
CPU Module
CPU
x86 CPU, 1 GHz, dual-core
SDRAM
2 GB DDR3 SDRAM
Non-volatile Memory, MRAM
512 KB (retain memory without battery support)
Flash
32 GB
EEPROM
16 KB
Data Retention: 40 years; 1,000,000 erase/write cycles
CF Card
CF socket with one 16 GB CF card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
Programmable LED Indicator
2
64-bit Hardware Serial Number
Yes, for Software Copy Protection
Dual Watchdog Timers
Yes
Rotary Switch
Yes (0 ~ 9)
DIP Switch
Yes (8 bits)
Audio
Microphone-In and Earphone-Out
VGA & Communication Ports
VGA
Yes, (resolution: 1600 x 1200, 1024 x 768, 800 x 600, 640 x 480)
Ethernet (Giga bit)
RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators)
USB 2.0
4
COM 1
Internal communication with the high profile I-87K series modules in slots
COM 2
RS-232 (RxD, TxD and GND); non-isolated
COM 3
RS-485
D2+, D2-; self-tuner ASIC inside
Isolation
3000 VDC
COM 4
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated
COM 5
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated
I/O Expansion Slots
Slot Number
1
Mechanical
Dimensions (W x L x H), unit: mm
169 x 132 x 125
Installation
DIN-Rail or Wall Mounting
Environmental
Operating Temperature
-25 ~ +75°C
Storage Temperature
-30 ~ +80°C
Ambient Relative Humidity
10 ~ 90% RH,non-condensing
Power
Input Range
+10 ~ +30 VDC
Isolation
1 kV
Redundant Power Inputs
Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity
3.7 A, 5 V supply to CPU and backplane, 1.3 A, 5 V supply to I/O expansion slots, 25 W in total
Consumption
16.6 W (0.69 A @ 24 VDC)
