| Models |
XP-8041-Atom-CE6 |
XP-8141-Atom-CE6 |

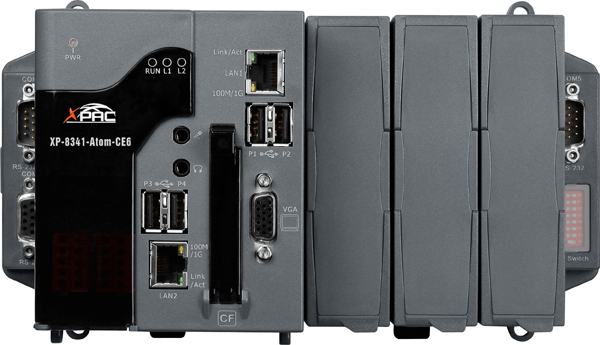

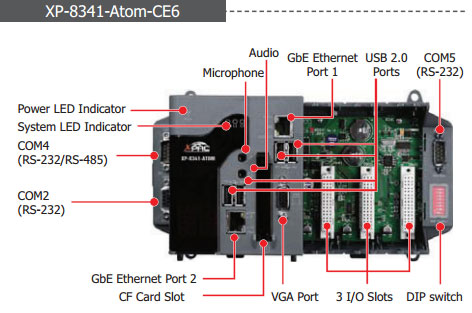

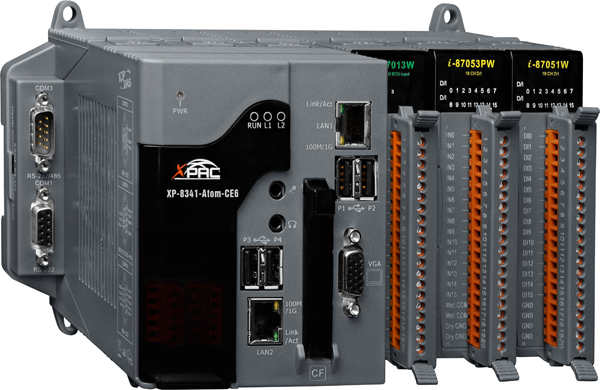

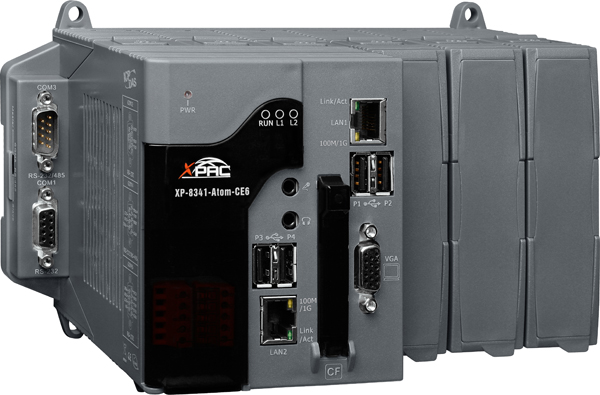

XP-8341-Atom-CE6 |
XP-8741-Atom-CE6 |
| System Software |
| OS |
Windows CE 6.0 core version |
| .Net Compact Framework |
3.5 |
| Embedded Service |
FTP Server, ASP (Java Script, VB Script), SQL Compact Edition 3.5 |
| SDK Provided |
Dll for Visual Studio .NET 2005/2008 |
| Multilang uage Support |
English, German, French, Spanish, Russuan, Italian, Japanese, Simplified Chinese, Traditional Chinese |
| CPU Module |
| CPU |
Intel Atom Z510 CPU (1.1 GHz) |
| System Memory |
512 MB DDR2 SDRAM |
| Dual Battery Backup SRAM |
512 KB (for 5 years data retain while power off) |
| Flash |
1 GB as IDE Master |
| EEPROM |
16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles |
| CF Card |
2 GB (support up to 32 GB) |
| RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
| Programmable LED Indicator |
2 |
| 64-bit Hardware Serial Number |
Yes, for Software Copy Protection |
| Dual Watchdog Timers |
Yes |
| Rotary Switch |
Yes (0 ~ 9) |
| DIP Switch |
- |
Yes (8 bits) |
| Audio |
Microphone-In and Earphone-Out |
| VGA & Communication Ports |
| VGA |
Yes, (640*480, 800*600, 1024*768,1152*864 and 1280*1024 resolutions ) |
| Ethernet (Giga bit) |
RJ-45 x 2, 10/100/1000 Base-T (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 2.0 |
4 |
| COM 1 |
RS-232 (RxD, TxD and GND); non-isolated |
Internal communication with the high profle I-87K series modules in slots |
| COM 2 |
RS-232 (RxD, TxD and GND); non-isolated |
| COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
| Isolation |
3000 VDC |
| COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
| COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
| I/O Expansion Slots |
| Slot Number |
0 |
1 |
3 |
7 |
| Hot Swapv* Will be available |
- |
For High Profle I-87K Modules Only |
| Mechanical |
| Dimensions (W x L x H) |
137 mm x 132 mm x 125 mm |
169 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
| Installation |
DIN-Rail or Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75°C |
| Storage Temperature |
-30 ~ +80°C |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
| Power |
| Input Range |
+10 ~ +30 VDC |
| Isolation |
1 kV |
| Redundant Power Inputs |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
| Capacity |
| 3.6 A, 5 V supply to CPU and backplane, |
| 25 W in total |
| |
|
| 3.7 A, 5 V supply to CPU and backplane, |
| 1.3 A, 5 V supply to I/O expansion slots, |
| 25 W in total |
|
| 3.8 A, 5 V supply to CPU and backplane, |
| 3.2 A, 5 V supply to I/O expansion slots, |
| 35 W in total |
|
| 4.0 A, 5 V supply to CPU and backplane, |
| 3.0 A, 5 V supply to I/O expansion slots, |
| 35 W in total |
|
| Consumption |
16.3 W (0.68 A @ 24 VDC) |
16.6 W (0.69 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
18 W (0.75 A @ 24 VDC) |
