WP-8841

$0.00

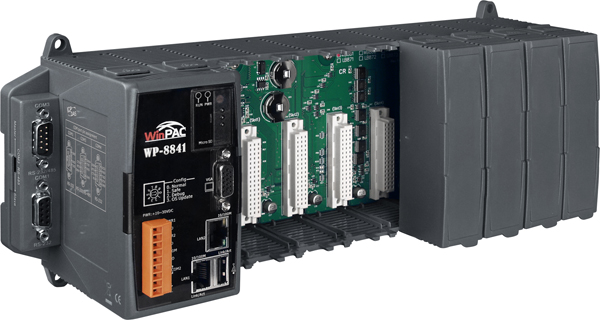

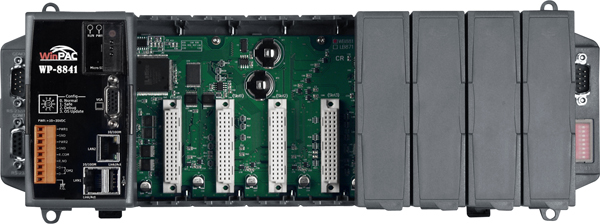

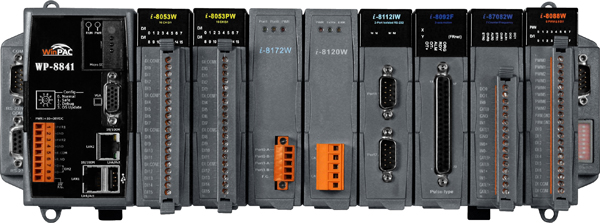

Standard WinPAC-8000 Controller with 8 Slots and Windows CE.NET 5.0. Programmable in Visual Basic.NET, Visual C#, Visual C++. Comes with free eLogger data logging, control and monitoring software. This item has been replaced with WP-8821-CE7.

Product Unavailable

Share On:
Categories:	WinPAC Windows CE PAC
Review:	Write your review
Resources:	3D Drawing User's Manual Data Sheet Quick Start Download Center WinPAC & DCON Utility Video I-8000W High Performance Modules I-87KW High Performance I/O Modules NAPOPC Server

The WP-8841 has officially been phased out and will no longer be available. It has now been replaced by WP-8821-CE7.

WinPAC-8841 is the second generation PAC of ICP DAS. It equips PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).

Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC, etc.

Software Features

Windows CE.Net 5.0
Remote Maintenance via FTP Server and VCEP Software
Built-In OPC Server (NAPOPC_CE5)
Rich Software Solutions (VS.Net 2003/2005/2008 and eVC)
Upgrading applications from WinCon to WinPAC Just Copy and Play

Hardware Features

Built-in VGA Port
I/O Module Hot Swap Ability (Will be available)
(For High Profile I-87K Modules Only)
Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
Dual Watchdog Timer
Dual Battery-Backup SRAM (512KB)
Dual Ethernet Ports
Redundant Power Input
Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃

Specifications

System Software
OS		Windows CE 5.0
.Net Compact Framework		2.0
Embedded Service		FTP server, Web server (supports VB script, JAVA script), Embedded SQL server
SDK Provided		Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008
CPU Module
CPU		PXA270 or compatible (32-bit and 520 MHz)
SDRAM		128 MB
Dual Battery Backup SRAM		512 Kbytes (for 5 years data retain)
Flash		WP-8x31: 128 MB (64, 63, 1)
		WP-8x41: 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
EEPROM		16 Kbytes
		Data Retention: 40 years; 1,000,000 erase/write cycles
microSD		WP-8x31: with one 2 GB microSD card (can support 16 GB microSD card)
		WP-8x41: with one 1 GB microSD card (can support 16 GB microSD card)
RTC (real time clock)		Year-2000 compliance; seconds, minutes, hours, date of the month; month, year, valid up from 1980 to 2079
64-bit Hardware Serial Number		Yes
Dual Watchdog Timer		Yes
Programmable LED Indicator		1
Rotary Switch		Yes (0 ~ 9)
DIP Switch		Yes (8 bits)
VGA & Communication Ports
VGA		WP-8x31: resolution: 1024 x 768, 800 x 600, 640 x 480; with one extra GPU.
		WP-8x41: resolution: 800 x 600, 640 x 480; without extra GPU.
Ethernet		RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, LED indicators)
USB 1.1 (host)		WP-8x31: 2 ports
		WP-8x41: 1 port
COM 0		Internal communication with I-87K modules in slots
COM 1		RS-232 (to update firmware) (RXD, TXD and GND); Non-isolation
COM 2	RS-485	D2+, D2-; self-tuner ASIC inside
	Isolation	3000 VDC
COM 3		RS-232/RS-485 (RXD, TXD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); Non-isolation
COM 4		RS-232 (RXD, TXD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation
I/O Expansion Slots
Slot Number		8 slots
		(For High Profile I-8K and I-87K Modules Only)
*Hot Plug Will be available**		I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
Mechanical
Dimensions (W x L x H)		355 mm x 132 mm x 111 mm
Installation		DIN-Rail or Wall Mounting
Environmental
Operating Temperature		-25 °C ~ +75 °C
Storage Temperature		-30 °C ~ +80 °C
Ambient Relative Humidity		10% ~ 90% RH, non-condensing
Power
Input Range		+10 VDC ~ +30 VDC
Isolation		1 kV
Redundant Power Inputs		Yes, with one power relay (1 A @ 24 VDC) for alarm
Capacity		1.2A, 5V supply to CPU and backplane, 4.8A, 5V supply to I/O expansion slots, total 30 W
Consumption		9.6 W (0.4 A @ 24 VDC)
