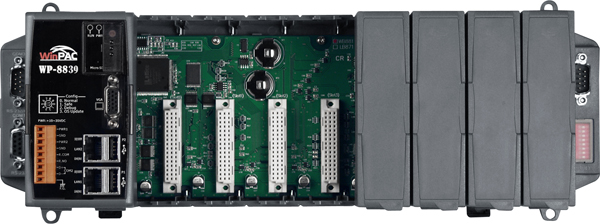

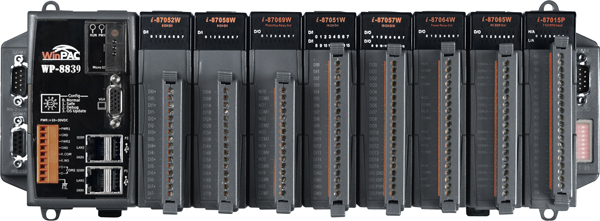

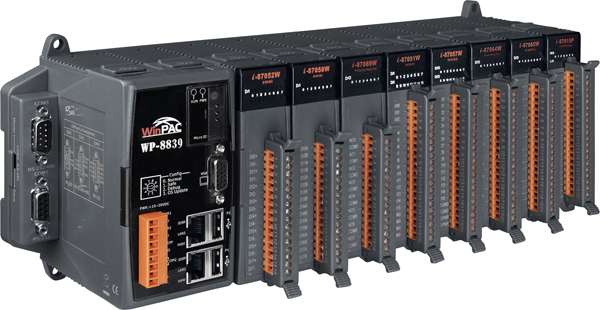

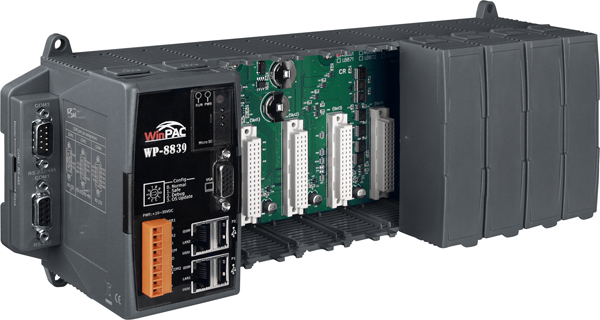

WP-8839

This product is phased out and replaced by WP-8849

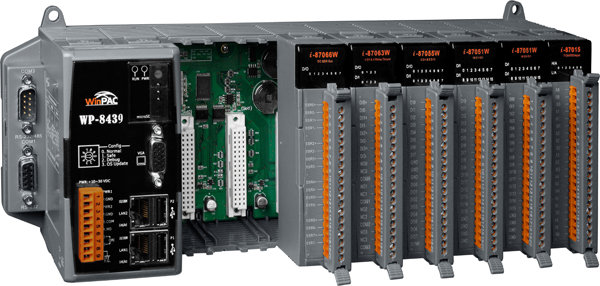

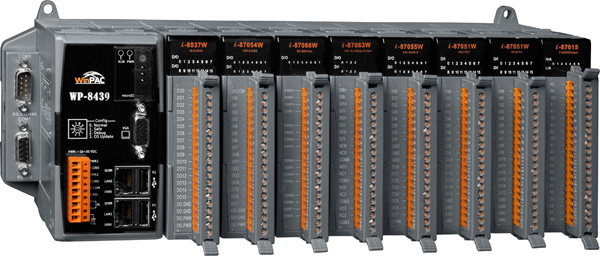

WinPAC-8xx9 Series (WP-8139/8439/8839, WP-8149/8449/8849) is the second generation Windows CE based InduSoft PAC of ICP DAS. It equips PXA270 CPU (520MHz) running a Windows CE .NET 5.0 operating system, variant connectivities (VGA, USB, Ethernet, RS-232/485) and 1/4/8 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).

Its operating system,Windows CE 5.0, has many advantages, including hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Using Windows CE 5.0 in the WinPAC-8000 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC …etc.

Software Features

InduSoft Web Studio General Features

IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

InduSoft Integrated with WinPAC-8000

• Easy steps to accomplish your system.
• Communication drivers are provided by ICP DAS.
• Monitor and control system from both sites (WinPAC) and control room (PC)

Communication Protocol

• DCON Protocol for ICP DAS embedded controllers or I/O modules is provided.
• Supports more than 200 Communication drivers such as Siemens, Omron and so forth.
• InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server.

Access Database Easily

• Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc.
• Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway.
• Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data.

Web Thin Clients

• Use a regular WEB Browser (Internet Explorer) to host the application.
• Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data.
• Provide Multi-level security for applications, including the Internet and Intranet.

Useful Package Tool is Provided

ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc.

• By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application.
• Reduce the number of used drivers.
• To integrate with GSM/GPRS external modem easily.

• Provide an easy way to exchange data between InduSoft and other Programs.

Hardware Features

1. Built-in VGA Port
2. I/O Module Hot Swap Ability (Will be available)
   (For High Profile I-87K Modules Only)
3. Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
4. Built-In Flash Disk (31 MB for WP-8x4x, 63 MB for WP-8x3x)
5. Dual Watchdog Timer
6. Dual Battery-Backup SRAM (512KB)
7. Dual Ethernet Ports
8. Redundant Power Input
9. Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
