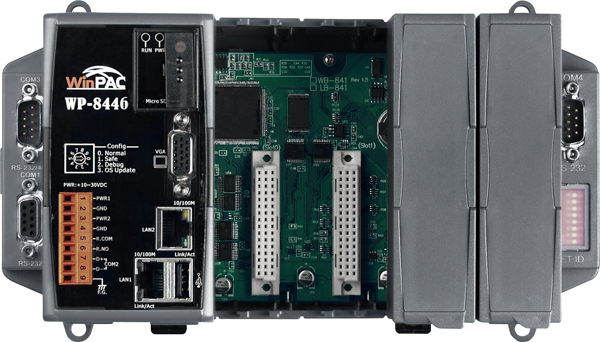

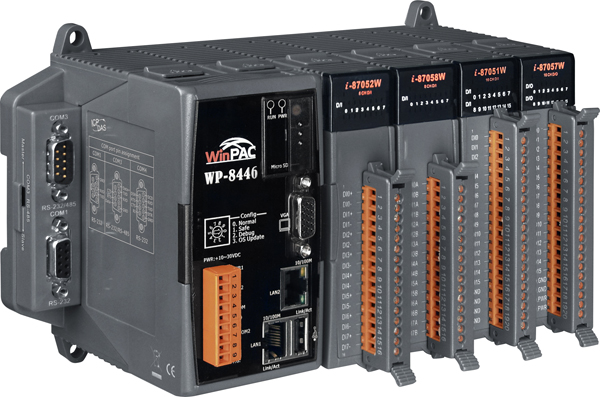

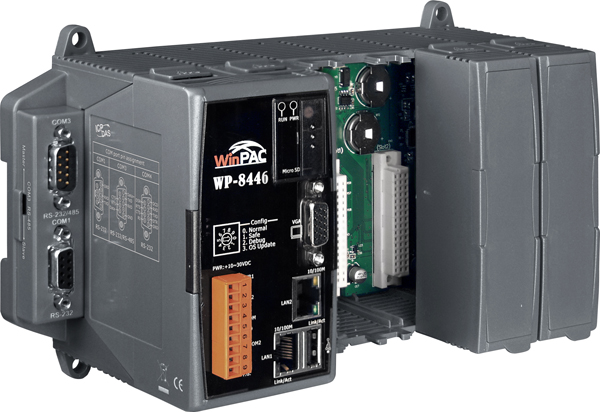

WP-8446

$0.00

Windows CE.NET 5.0 based Programmable Automation Controller with InduSoft Web Studio and ISaGRAF

Product Unavailable

Share On:
Categories:	WinPAC Windows CE PAC
Review:	Write your review
Resources:	Hardware Manual Indusoft User Guide ISaGRAF User's Manual WinPAC & DCON Utility Video I-8000W High Performance Modules I-87KW High Performance I/O Modules ISaGRAF Demo Programs NAPOPC Server

ICP DAS WinPAC-8x46 Series (WP-8146/8446/8846) is the new generation WinCE based PAC (Programmable Automation Controller). It features the powerful InduSoft Web Studio and ISaGRAF. InduSoft is a powerful integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Super-visory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages (LD, ST, FBD, SFC, and FC). WinPAC-8x46 equips a PXA270 CPU (520MHz) running a Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1/4/8 slots for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & 16 GB microSD are included. For redundant support: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, and dual Ethernet Ports are provided. WinPAC-8x47 Series will definately upgrade your system!

WinPAC Indusoft & ISaGRAF Total Solution
Windows CE Total Solution

WinPAC-8000 Software Features
- Windows CE.NET 5.0
- Remote Maintenance via FTP Server and VCEP software
- Built-in OPC Server (Quicker)
- Rich Software Solutions (VS.NET 2003/2005/2008 and eVC)
- Upgrading applications from WinCon-8000 to WinPAC-8000 just Copy and Play
WinPAC-8000 Hardware Features
- Built-in VGA Port
- I/O Module Hot Swap Ability (only for high profile I-87K modules)
- Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
- Built-in Flash Disk (96MB)
- Dual Watchdog Timer, Battery-Backup (512KB), and Ethernet Port
- Redundant Power Input
InduSoft Web Studio General Features
IWS applications run on microcomputers connected to real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, application tags databases, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and security systems.

Intuitive scripting language with more than 100 standard functions is provided.
Conform to industry standards such as Microsoft.NET, OPC, DDE, ODBC, XML
Full-Featured WinCE-based run-time environment (CE View).
Dynamic library of symbols - customizable.
ActiveX container (Windows NT/2000/XP/CE).
Automatic e-mail (SMTP) and dial-up connection interface supported.
Provides multi-level security for applications, including the Internet and Intranet

ISaGRAF General Features
- Support five IEC61131-3 languages, LD, ST, FBD, SFC, IL plus FC.
- Modbus RTU/TCP protocol to integrate to SCADA software and HMI
- Controller to Controller Data Exchange via Ethernet: Ebus.
- All I-7000 & I-87K series I/O modules can be integrated as remote I/O modules.
- Auto-scan I/O : Automatically scan I/O boards & declare I/O variables.
- Motion: Motion control is available when I-8091 boards integrated.
- Web HMI: Monitoring and control the local or remote controller via the Internet Explorer running on your PC

Specifications

System Software
OS	Windows CE 5.0
.Net Compact Framework	2.0
Embedded Service	FTP Server, Web Server
Development Software
InduSoft Software	InduSoft Web Studio v6.1 Service Pack 3
ISaGRAF Software	ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC
Others	Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008)
Web Service
Web HMI	Support Web HMI function, PC running Internet Explorer can access to the WP-8x46 via Local Ethernet or Internet or dial Modem, monitoring and control.
Security	Web HMI supports three levels user name and password protection
Power Supply
Input Range	+10 ~ +30 VDC (unregulated)
Isolation	1 kV
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Protection	WP-8146: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W WP-8446: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W WP-8846: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W
Consumption	WP-8146: 7.3 W (0.3 A @ 24 V); WP-8446: 9.1 W (0.38 A @ 24 V); WP-8846: 9.6 W (0.4 A @ 24 V);
General Environment
Temperature	Operating: -25 °C ~ +75 °C ( -13 ° F ~ +167 ° F) , Storage : -30 °C ~ +85 °C ( -40 ° F ~ +176 ° F)
Humidity	5 % ~ 95 % RH (non-condensed)
System
CPU	CPU: PXA270, 32-bit and 520 MHz or compatible
Dual Watchdog Timer	Watchdog: Dual Watchdog Timer
RTC (Real Time Clock)	Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079
SRAM	128 MB
Dual Battery Backup SRAM	512 KB (for 5 years data retain while power off)
FLASH	96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
Expansion Flash Memory	microSD socket with 1 GB flash card. Supports up to 16GB.
EEPROM	16 KB, Data retention: 40 years. 1,000,000 erase/write cycles
I/O Slots	WP-8146: 1 slot (slot0); WP-8446: 4 slots (slot0 ~ slot3); WP-8846: 8 slots (slot0 ~ slot7); Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards I/O Module Hot Swap Ability: for High Profile I-87K only
Rotary Switch	Yes (0~9)
DIP Switch	WP-8446 & WP-8846: Yes, 8 bits DIP Switch; WP-8146 : no DIP Switch
LED, NET ID	1 programmable LED indicator. NET ID: From 1 ~ 255, set by software
Unique Serial Number	Yes,64-bit hardware unique serial number
Serial Ports
VGA Port	1 VGA port (800 x 600 resolution)
USB Port	one USB 1.1 Host ports for USB mouse, keyboard or USB drive
COM0	Internal communication with the I-87K High Profile modules in slots
COM1	RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max.
COM2	RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDC isolation for 4/8 slots controller; Speed: 115200 bps max.
COM3	RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, DATA+ and DATA- for RS-485); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.)
COM4	RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.)
Dual Ethernet Ports	2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller (Auto-negotiating, Auto MDI/MDI-X, LED indicator) Please use NS-205/NS-208 Industrial Ethernet Switch.
