Windows CE Embedded PAC with InduSoft inside, communicates over RS-485, RS-232, Modbus RTU, Modbus TCP and Ethernet. Supports operating temperatures from -25°C ~ +75°C

Product Unavailable

Share On:
Categories:	WinPAC Windows CE PAC
Review:	Write your review
Resources:	User's Manual Indusoft DCON Utility Data Sheet I-87KW High Performance I/O Modules I-8000W High Performance Modules NAPOPC Server CE Certification FCC Certification

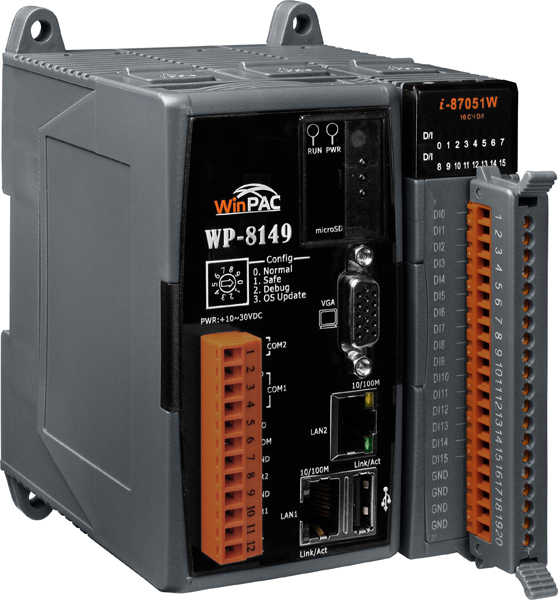

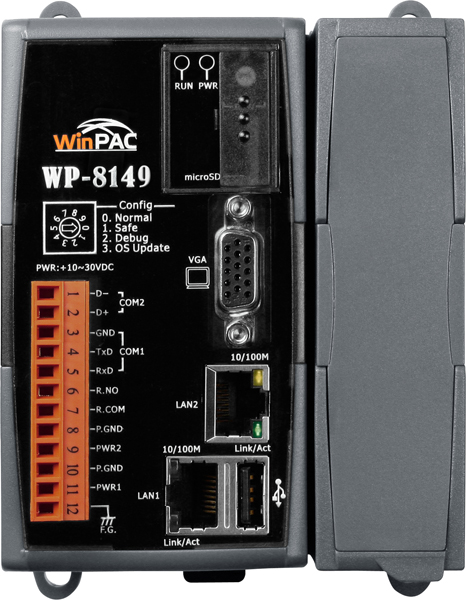

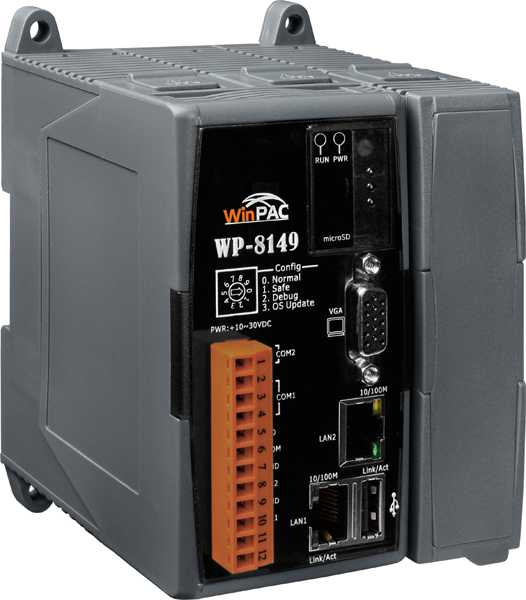

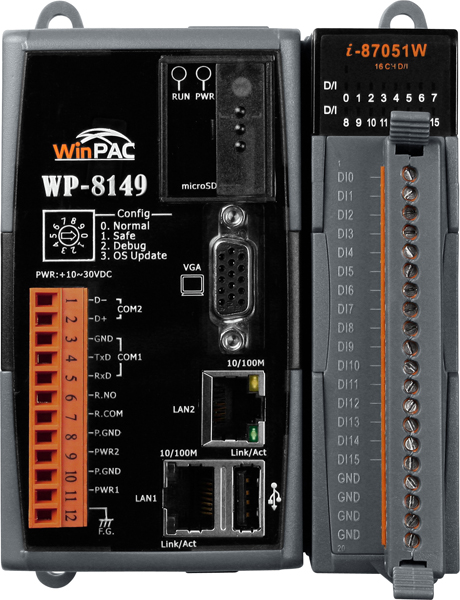

WinPAC-8149 is the new generation WinCE based InduSoft PAC (Programmable Automation Controller) from ICP DAS. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 Operating System, variant connectivity (10/100 Base-TX dual Ethernet Ports, 2 or 4 RS-232/485 ports, 1 VGA, 1 USB port) and 1 slot for high performance Parallel-type I/O modules (High Profile I-8K series) and Serial-type I/O modules (Hot-Swap High Profile I-87K I/O modules). Comes with 128 MB SRAM, 512 KB dual battery backup SRAM, 96 MB FLASH & a 1 GB microSD (supports up to 16GB microSD). For redundant supporting: dual Watchdog Timers, redundant power inputs, dual battery backup SRAM, dual Ethernet Ports. WinPAC-8x47 Series will be a great upgrade for your system!

InduSoft Web Studio General Features

IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

InduSoft Integrated with WinPAC-8000

Easy steps to accomplish your system.
Communication drivers are provided by ICP DAS.
Monitor and control system from both sites (WinPAC) and control room (PC)

Communication Protocol

DCON Protocol for ICP DAS embedded controllers or I/O modules is provided.
Supports more than 200 Communication drivers such as Siemens, Omron and so forth.
InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server.

Access Database Easily

Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc.
Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway.

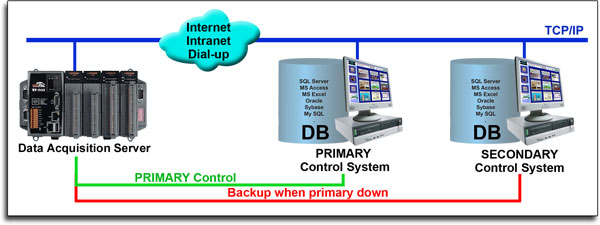

Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data.

WP-8149 database

SNMP Protocol Supported

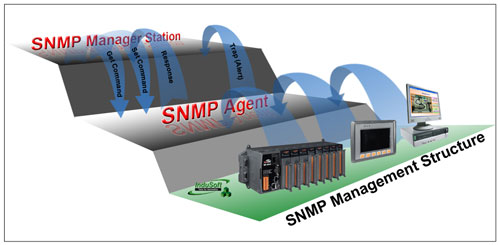

I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station.
WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP manager station.
Integrating I/O and Network information in SNMP manager station.

SNMP

Web Thin Clients

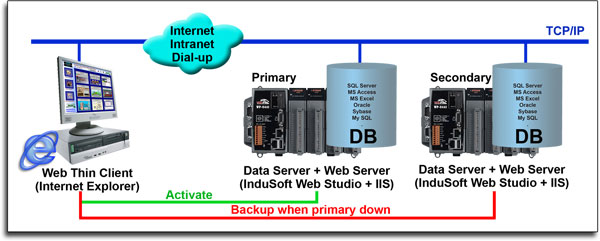

Use a regular WEB Browser (Internet Explorer) to host the application.
Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data.
Provide Multi-level security for applications, including the Internet and Intranet.

web thin clients

Useful Package Tool is Provided

ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc.

By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application.
Reduce the number of used drivers.

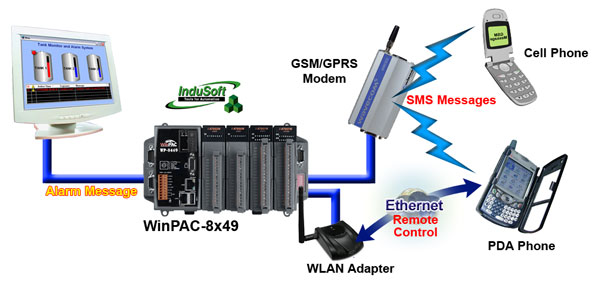

To integrate with GSM/GPRS external modem easily.

GSM

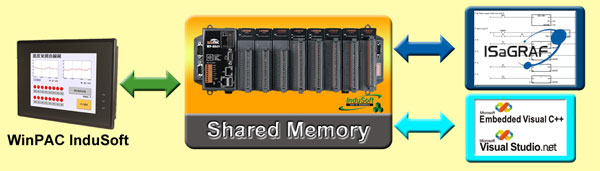

Provide an easy way to exchange data between InduSoft and other Programs.

Shared Memory

Specifications

System Software
OS	Windows CE 5.0
.Net Compact Framework	2.0
Embedded Service	FTP Server, Web Server
Development Software
InduSoft Software	InduSoft Web Studio v6.1 Service Pack 3
Non-InduSoft	Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008)
Web Service
Web HMI	Support Web HMI function, PC running Internet Explorer can access to the WP-8x49 via Local Ethernet or Internet or dial Modem, monitoring and control.
Security	Web HMI supports three levels user name and password protection
Power Supply
Input Range	+10 ~ +30 VDC (unregulated)
Isolation	1 kV
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Protection	WP-8149: 1.0 A, 5 V supply to CPU and backplane; 0.6 A, 5 V supply to I/O expansion slots, total 8 W WP-8449: 1.1 A, 5 V supply to CPU and backplane; 4.9 A, 5 V supply to I/O expansion slots, total 30 W WP-8849: 1.2 A, 5 V supply to CPU and backplane; 4.8 A, 5 V supply to I/O expansion slots, total 30 W
Consumption	WP-8149: 7.3 W (0.3 A @ 24 V); WP-8449: 9.1 W (0.38 A @ 24 V); WP-8849: 9.6 W (0.4 A @ 24 V);
General Environment
Temperature	Operating: -25 °C ~ +75 °C ( -13 ° F ~ +167 ° F) , Storage : -30 °C ~ +85 °C ( -40 ° F ~ +176 ° F)
Humidity	5 % ~ 95 % RH (non-condensed)
System
CPU	CPU: PXA270, 32-bit and 520 MHz or compatible
Dual Watchdog Timer	Watchdog: Dual Watchdog Timer
RTC (Real Time Clock)	Gives hour, minute, sec, day of week, day of month, month & year, valid up from 1980 ~ 2079
SRAM	128 MB
Dual Battery Backup SRAM	512 KB (for 5 years data retain while power off)
FLASH	96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry)
Expansion Flash Memory	microSD socket with 1 GB flash card
EEPROM	16 KB, Data retention: 40 years. 1,000,000 erase/write cycles
I/O Slots	WP-8149: 1 slot (slot0); WP-8449: 4 slots (slot0 ~ slot3); WP-8849: 8 slots (slot0 ~ slot7); Accept High Profile I-8K Parallel & High Profile I-87K Serial I/O boards I/O Module Hot Swap Ability: for High Profile I-87K only
Rotary Switch	Yes (0~9)
DIP Switch	WP-8449 & WP-8849: Yes, 8 bits DIP Switch; WP-8149 : no DIP Switch
LED, NET ID	1 programmable LED indicator. NET ID: From 1 ~ 255, set by software
Unique Serial Number	Yes,64-bit hardware unique serial number
Serial Ports
VGA Port	1 VGA port (800 x 600 resolution)
USB Port	one USB 1.1 Host ports for USB mouse, keyboard or USB drive
COM0	Internal communication with the I-87K High Profile modules in slots
COM1	RS-232 (RxD, TxD, and GND); Non-isolation; Speed: 115200 bps max.
COM2	RS-485 (D2+, D2-; self-tuner ASIC inside); 2500 VDC isolation for 1 slot controller and 3000 VDCisolation for 4/8 slots controller; Speed: 115200 bps max.
COM3	RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, DATA+ and DATA- for RS-485); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.)
COM4	RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolation; Speed: 115200 bps max. (WP-8149 has no COM3 & COM4.)
Dual Ethernet Ports	2 Ethernet Ports: LAN1 & LAN2, 10/100 Base-TX Ethernet Controller (Auto-negotiating, Auto MDI/MDI-X, LED indicator) Please use NS-205/NS-208 Industrial Ethernet Switch.
