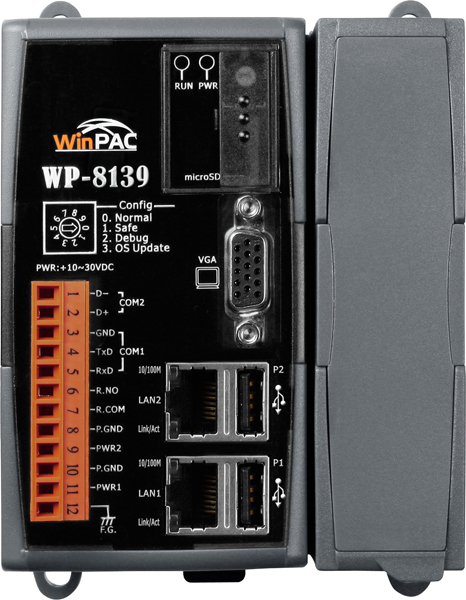

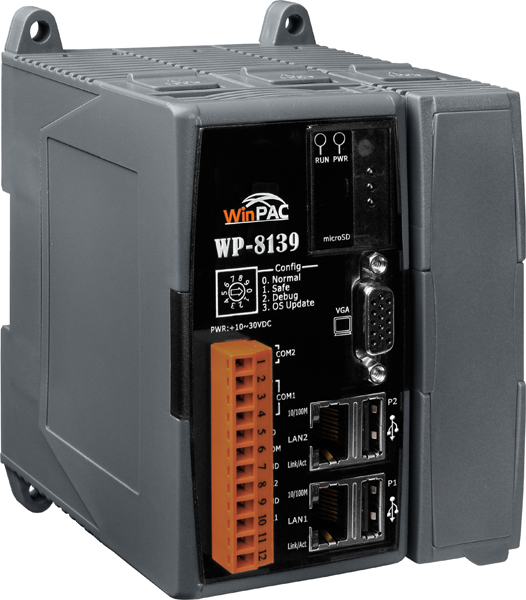

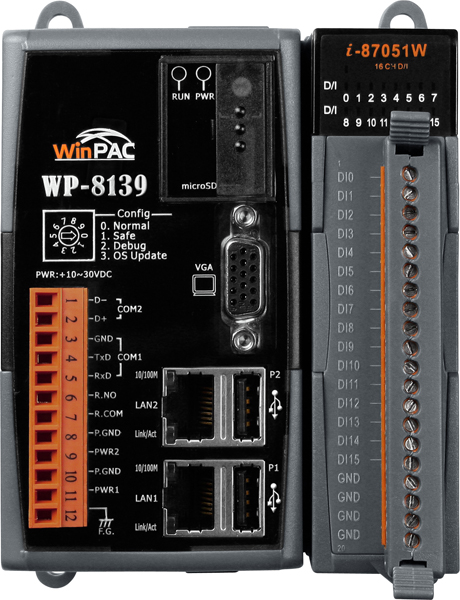

WP-8139

This product is phased out and replaced by WP-8149

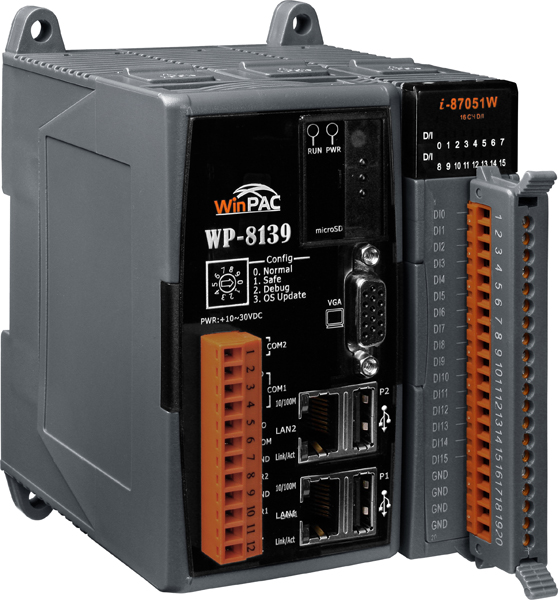

Powered by a PXA270 CPU at 520MHz and Windows CE .NET 5.0 operating system running under the hood, the WinPAC WP-8139 is the second generation Windows CE based InduSoft PAC device of ICP DAS USA. It has multiple connectivity interfaces (VGA, USB, Ethernet, RS-232/485) and 1 single slots fit for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules).

Windows CE 5.0 operating is what the WP-8139 is powered by, which offers quite a few advantages, such as hard real-time capability, fast boot speed, small core size, , achievable deterministic control, interrupt handling at a deeper level, and low cost. Using Windows CE 5.0 on the WinPAC-8139 gives it the ability to run PC-based Control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC and many other compatible programming languages.

• Built-in VGA Port
• I/O Module Hot Swap Ability (For High Profile I-87K Modules Only)
• Rich I/O Expansion Ability (RS-232/485, Ethernet, FRnet, CAN)
• Built-in Flash Disk
• Dual Watchdog Timer
• Dual Battery-Backup SRAM (512KB)
• Dual Ethernet Ports
• Redundant Power Input
• Ventilated Hosuing Design Allows Operationg Between +25°C ~ +75°C (-13°F ~ +167°F)

Software Features

InduSoft Web Studio General Features

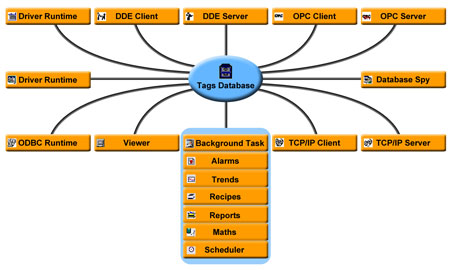

IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.

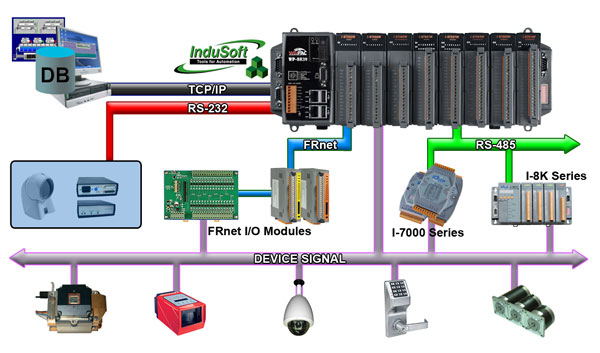

InduSoft Integrated with WinPAC-8000

• Easy steps to accomplish your system
• Communication drivers are provided by ICP DAS USA
• Monitor and control system from both sites (WinPAC) and control (PC)

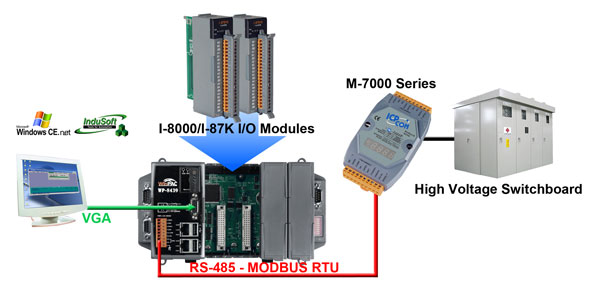

Communication Protocol

• DCON Protocol for ICP DAS USA embedded controlelrs or I/O modules is provided
• Supports more than 200 Communication drivers such as Siemens, Omron and so forth
• InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server

Easy Access to Database

• Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle and others
• Database connectivity from any platform support by IWS or CEView, through the unique Studio Database Gateway

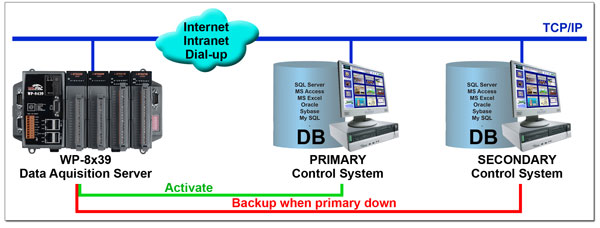

• Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data

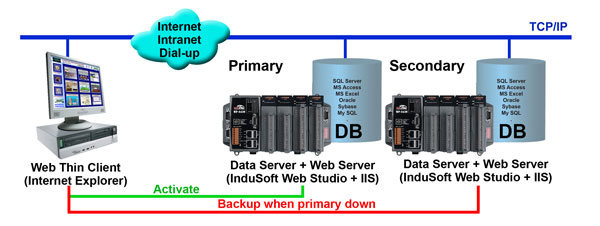

Web Thin Clients

• Use a regular WEB Browser Inter Explorer) to host the application
• Requests online and history data from the SErver wehre InduSoft Web Studio is running, becoming a CLIENT for the data
• Provide Multi-level security for applications, including the internet and intranet

Useful Package Tools is Provided

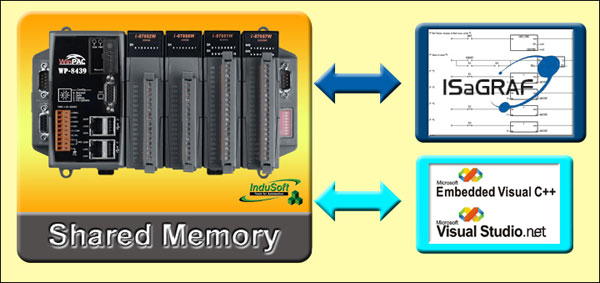

ICP DAS USA has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tools".

• By using ActiveX objects provided by ICP DAS USA in InduSoft, user can easily develop multi-function application
• Reduce the number of used drivers

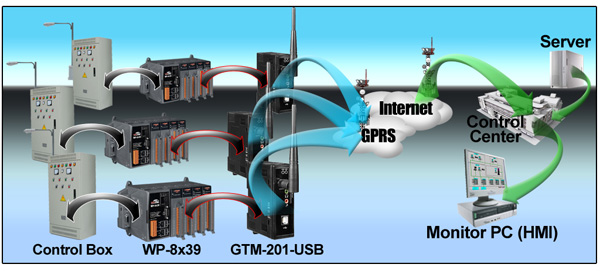

• To integrate with GSM/GPRS external modern easily

• Provided an easy way to exchange data between InduSoft and other Programs
