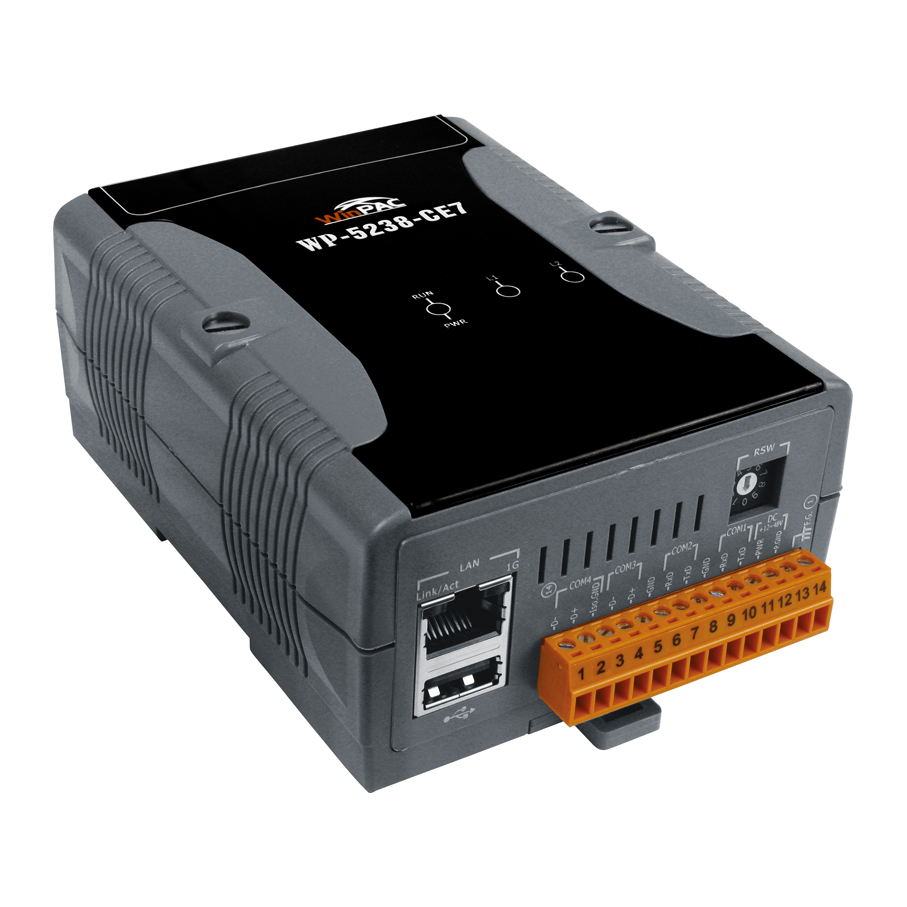

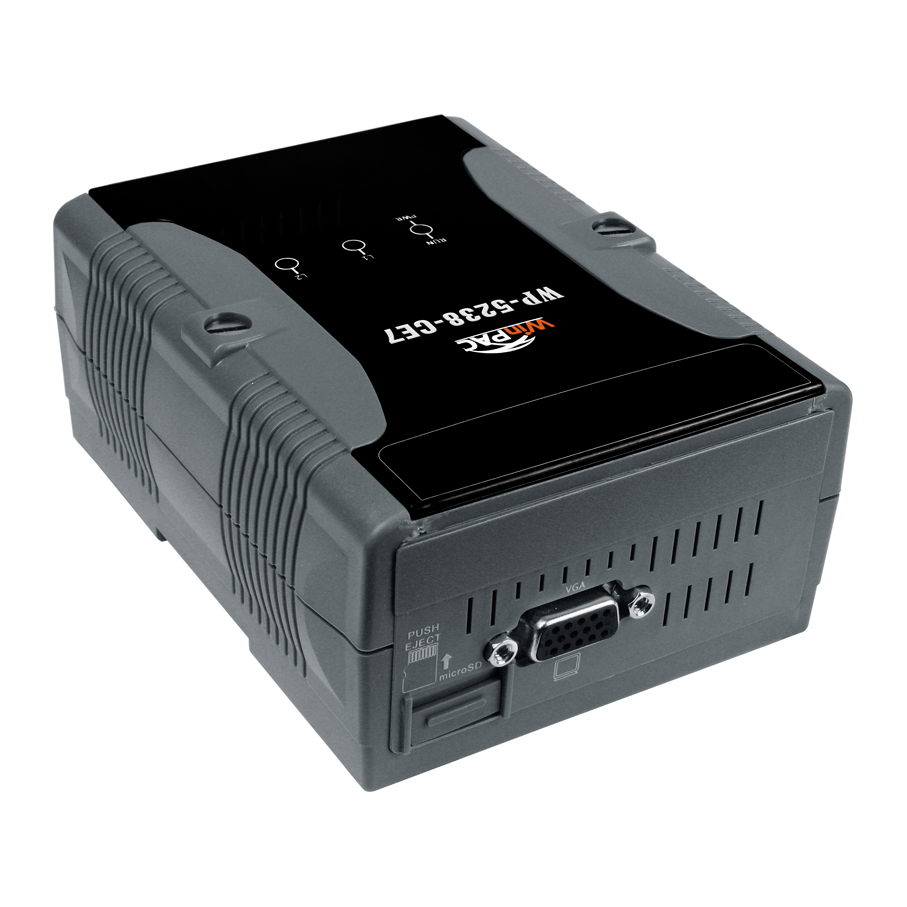

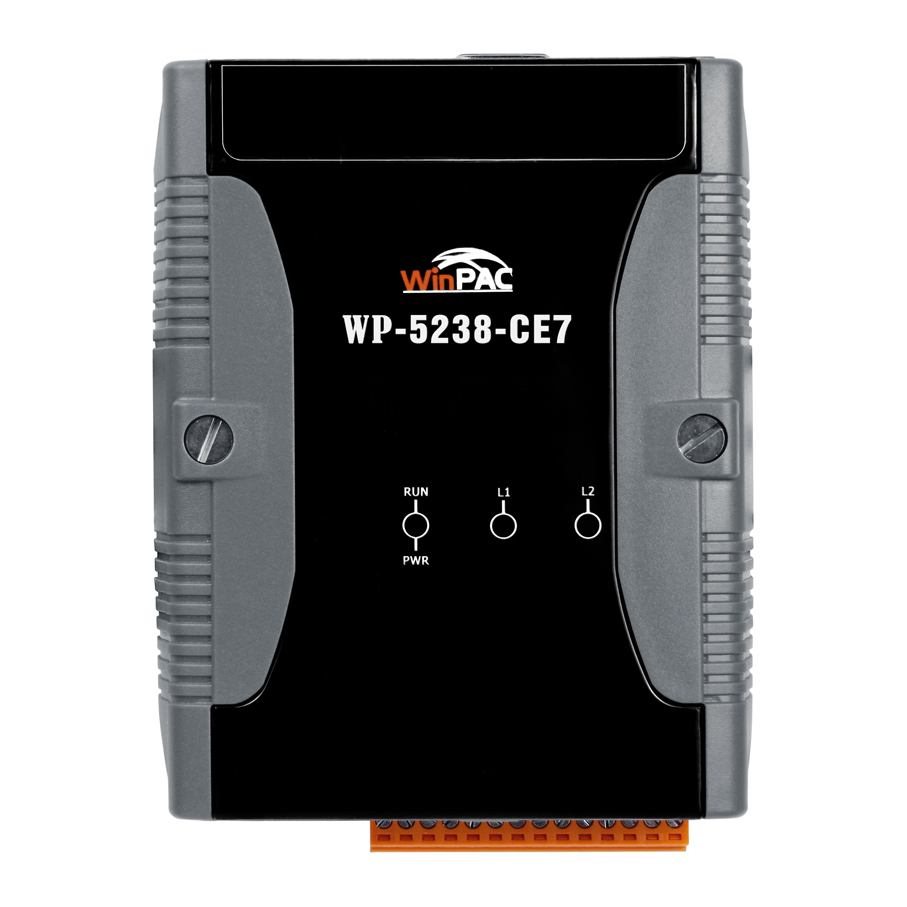

The Win-GRAF based WP-5238-CE7 is a Windows CE 7.0 based Programmable Automation Controller (PAC). The PAC is equipped with an AM352 CPU (720 Mhz) and running a Windows CE .NET 7.0 operating system. The optional I/O expansion board (XV-board) provides high-protection. Using the built-in micro SD, the Win-GRAF WP-5238 device can save application program, image file, and data.
The WP-5238-CE7 offers hard real-time capability, achievable deterministic control and provides a PC-like Windows display and operating environment. The WP-5238-CE7 is capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications. It also supports MS VS 2008 or 2010 software (VB.NET, C#) and can run HMI and data management applications that can exchange data with Win-GRAF applications. It can run multiple programs at one time which make application design flexible and convenient.
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Protocol | OPC UA Server Modbus TCP/IP Master/Slave Modbus RTU Master/Slave Modbus ASCII Master DCON Protocols User-Defined Communication Protocols |
| Development | Embedded Win-GRAF SoftLogic (IEC 61131-3) |
| Service | FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server |
| Function | eLogger HMI Application Protection Data Binding On Line Change Schedule Control Retain Variables File Access and Data Log |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 1.0 GHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM |
| Storage | 256 MB Flash, 4 GB microSD card (up to 32 GB) |
| Non-Volatile Memory | 64 KB FRAM |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Signal | VGA |
| Resolution | 640 480 800 480 800 600 1024 768 |
| LED Indicators | |
|---|---|
| Status | 1 x System/Power, 2 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | Yes, (0 ~ 9) |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232, 1 x RS-485, 1 x RS-485 (2500 VDC Isolated) |
| USB | |
|---|---|
| Ports | 1 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 91 x 132 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75°C |
| Storage Temperature | -40 ~ +80°C |
| Humidity | 10 ~ 90% RH, Non-condensing |
