This item has been phased out and replaced by WP-5239-CE7

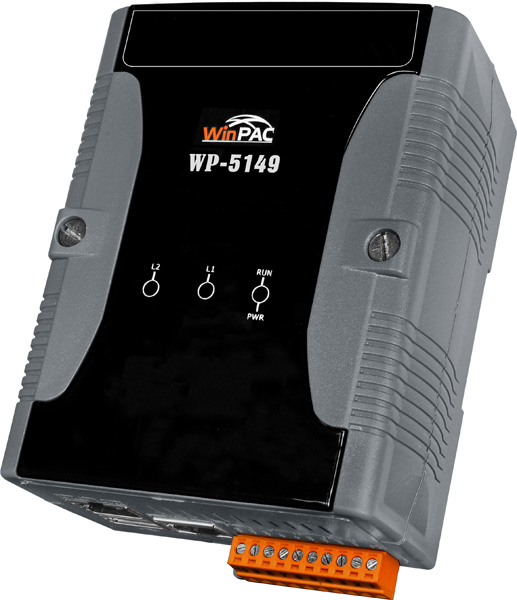

ICP DAS USA's new WinPAC-5149 is the latest Indusoft-based Programmable Automation Controller (PAC). This device is equipped with a PXA270 CPU (520 MHz). Windows CE.NET 5.0 is the operating system it runs off of. VGA, USB, Ethernet, RS-232/485 and I/O expansion bus allow for various types of connections.
The WinPAC-5149 device offers the following advantages: Hard real-time capability, fast boot speed, interrupt handling at a deeper level, small core size, achievable deterministic control and low cost. Windows CE.NET 5.0 provides great flexibility when used in combination with Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, and SoftPLC.

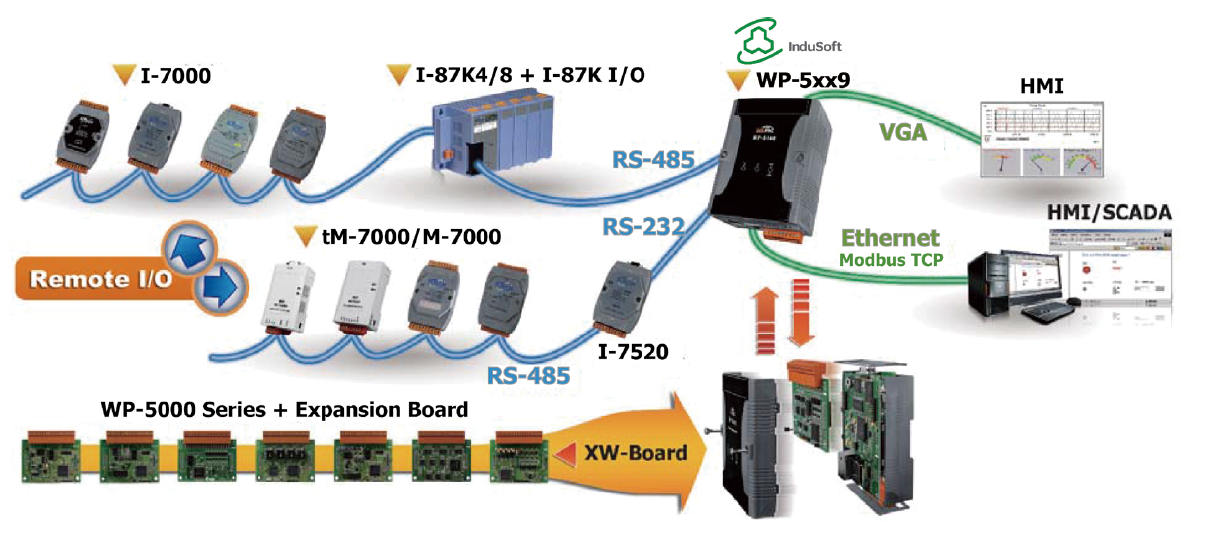

For hardware expansion, it also supports an I/O expansion bus. The I/O expansion bus can be used to implement various I/O functions such as D/I, D/O,A/ D, D/A, Timer/Counter, UART, and other I/O functions. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 10 boards available for WinPAC-5000 series, users can choose one of them to expand hardware features.
System |
|
OS |
Windows CE 5.0 |
.Net Compact Framework |
3.5 |
Embedded Service |
FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
SDK Provided |
Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
Development Software |
|
Indusoft Software |
InduSoft Web Studio Runtime |
CPU Module |
|
| CPU | PXA270 or compatible (32-bit and 520 MHz) |
| SDRAM | 128 MB |
| Flash | 64 MB (32 MB for OS, 32 MB for System_Disk and System Registry) |
| EEPROM | 16 KB Data Retention: 40 years; 1,000,000 erase/write cycles |
Expansion Flash Memory |
microSD socket with one 2 GB microSD card (support up to 16 GB microSDHC card) |
RTC (Real Time Clock) |
Provide second, minute, hour, date, day of week, month, year |
64-bit Hardware Serial Number |
Yes |
Dual Watchdog Timer |
Yes |
LED Indicators |
1 LED for Power and Running, 2 LED for user programmable |
Rotary Switch |
Yes (0 ~ 9) |
VGA & Communication Ports |
|
| VGA | Yes (640 × 480/800 × 600) |
| Ethernet | RJ-45 x 2, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (client) | 1 |
| USB 1.1 (host) | 1 |
Audio Port (Microphone-In and Earphone) |
- |
COM 1 |
RS-232 (RxD, TxD and GND); Non-isolated |
COM 2 |
RS-485 (D2+, D2-); 2500 VDC; isolated |
COM 3 |
RS-232 (RxD, TxD and GND); Non-isolated |
I/O Expansion Slots |
|
I/O Expansion Bus |
Yes, to mount one optional XW-board. |
Mechanical |
|
| Dimensions (W x L x H) | 91 mm x 132 mm x 52 mm |
Installation |
DIN-Rail Mounting |
Environment |
|
Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
Storage Temperature |
-30°C ~ +80°C ( |
Ambient Relative Humidity |
10% ~ 90% RH, non-condensing |
Power |
|
| Input Range |
+10 VDC ~ +30 VDC |
Isolation |
1 kV |
Consumption |
4.8 W (0.2 A @ 24 VDC) |
