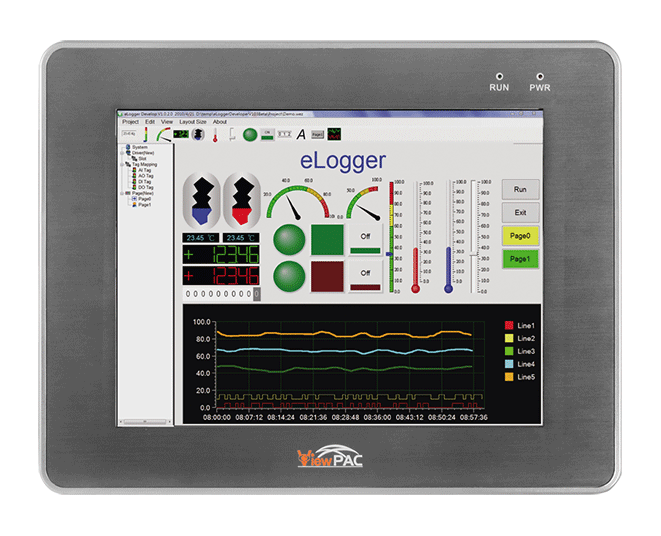

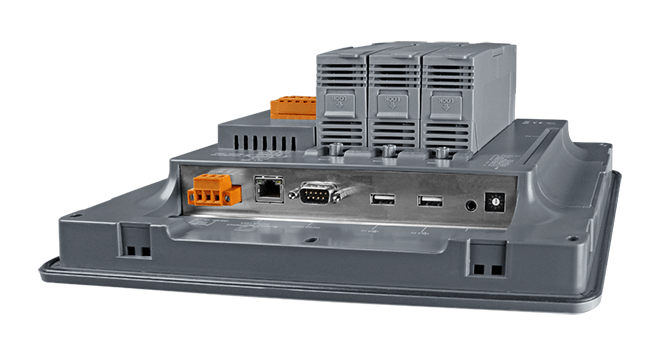

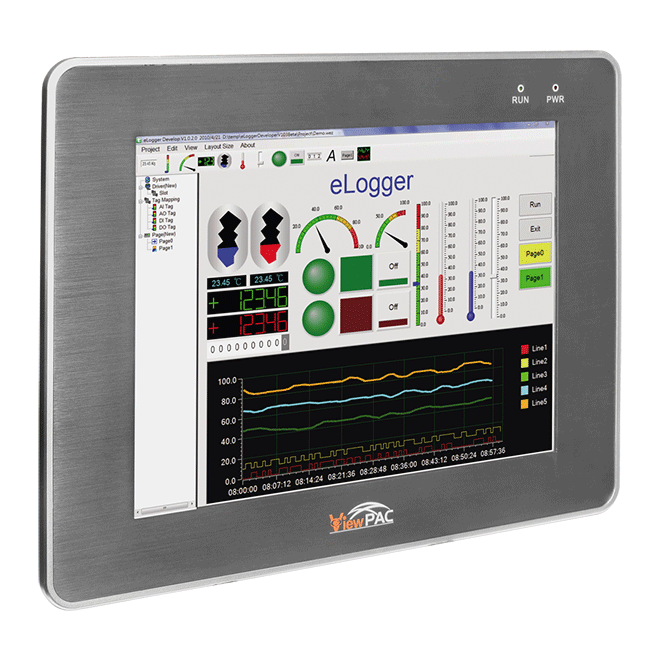

The VP-4231-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU, TFT LCD and a variety of input/output ports (USB, Ethernet, RS-232/485). Local I/O slots are available to use our I-8K and I-87K series I/O modules and remote I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed to operate over a wide -10 °C to 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and highly reliable operating system. CE7 delivers rich user experiences and a unique connection to Windows PCs, servers, services, and devices.
|
Software
|
|
|
OS
|
Windows CE 7.0 |
|
Service
|
FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
|
Framework Support
|
.Net Compact Framework 3.5 |
|
Multilanguage Support
|
English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
|
SDK
|
Dll for VC, Dll for Visual Studio.Net 2008 |
|
Main Unit
|
|
|
CPU
|
Cortex-A8, 1.0 GHz |
|
64-bit Hardware Serial Number
|
Yes |
|
System Memory
|
512 MB SDRAM, 256 MB Flash |
|
Storage
|

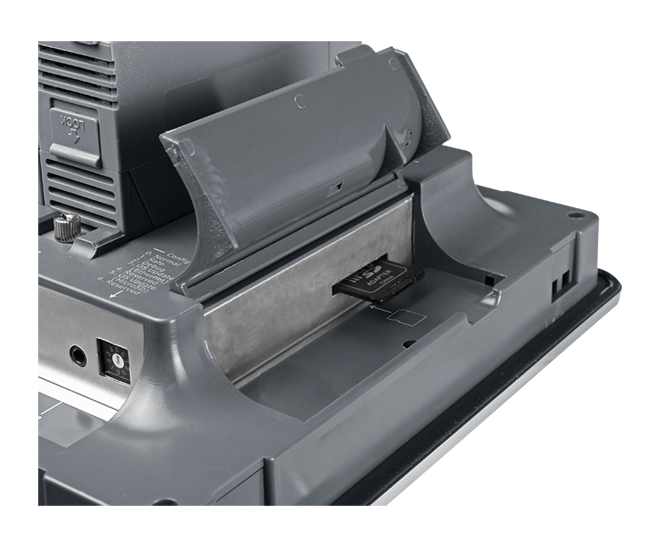

A SD/microSD adapter and 4 GB microSD card (up to 32 GB) |
|
Non-Volatile Memory
|
128 KB MRAM, 16 KB EEPROM |
|
Real Time Clock
|
Provide seconds, minutes, hours, dates, day of week, month, year |
|
Watchdog Timer
|
Dual Watchdog Timer |
|
Display
|
|
|
Type
|
TFT LCD |
|
Size
|
10.4" (4:3) |
|
Backlight Life
|
50,000 hours |
|
Brightness
|
400 cd/m2 |
|
Resolution
|
800 x 600 |
|
Touch Panel
|
5-wire, resistive type; light transmission: 80 % |
|
Color
|
16 bit RGB, 64 K full Colors |
|
LED Indicators
|
|
|
Status
|
1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
|
I/O Expansion
|
|
|
I/O Types
|
I-8K, I-87K series |
|

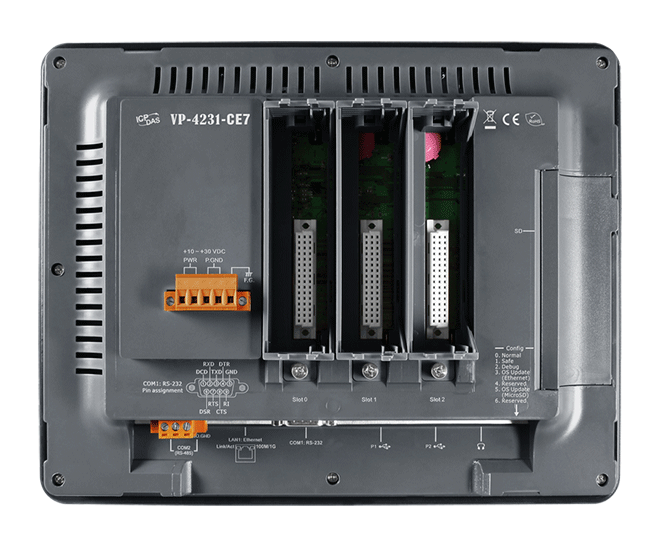

Slots
|
3 |
|
COM Ports
|
|
|
Ports
|
1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
|
HMI
|
|
|
Buzzer
|
Yes |
|
Rotary Switch
|
1 x 10 Position (0 ~ 9) |
|
Audio
|
|
|
Cable
|
Earphone-Out |
|
Ethernet
|
|
|
Ports
|
1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
|
USB
|
|
|
Ports
|
2 x USB 2.0 |
|
Power
|
|
|
Input Range
|
+10 ~ 30 VDC (1 kV Isolated ) |
|
Consumption
|
0.45 A @ 24 VDC |
|
Mechanical
|
|
|
Casing
|
Plastic |
|
Dimensions
|
291 x 229 x 129 (W x L x H) |
|
Panel Cut-Out
|
276 x 214, ±1 (W x H) |
|
Installation
|
Panel Mounting |
|
Ingress Protection Rating
|
Front panel: NEMA 4/IP65 |
|
Weight
|
3.6 Kg |
|
Environment
|
|
|
Operating Temperature
|
-25 ~ +75°C |
|
Storage Temperature
|
-30 ~ +80°C |
|
Humidity
|
10 ~ 90% RH, Non-condensing |
