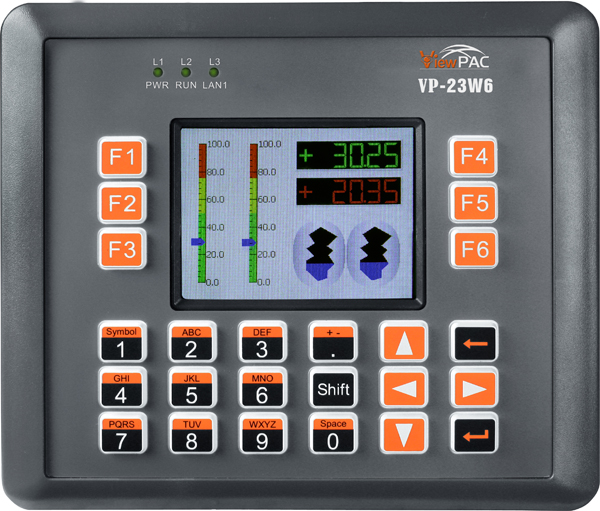

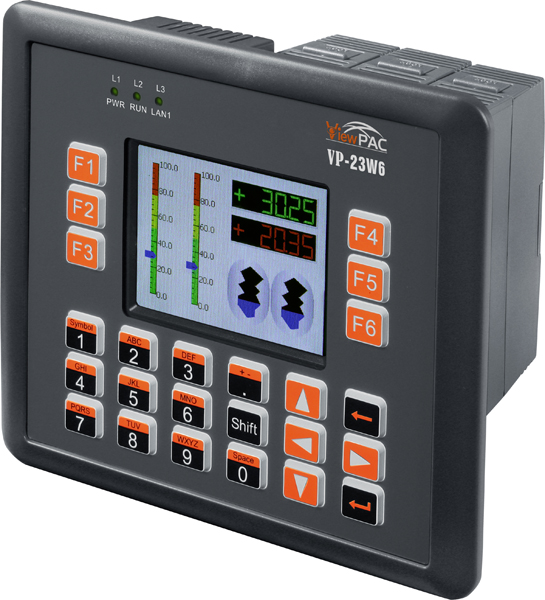

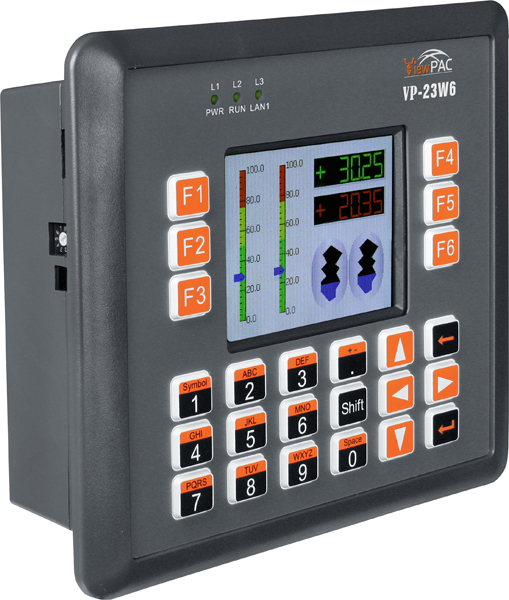

ViewPAC-23W6/ViewPAC-25W6 is the new generation WinCE based PAC from ICP DAS. ViewPAC combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, variant connectivities (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 3.5”/5.7” TFT LCD and a rubber keypad.
Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. The VP-23W6/VP-25W6 also features with the powerful InduSoft Web Studio and ISaGRAF. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) andSupervisory Control and Data Acquisition (SCADA) systems. ISaGRAF is a PLC-like software and supports all five IEC61131-3 languages(LD, ST, FBD, SFC, FC).
Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
IWS applications run on microcomputers connected in real-time to machines or processors through WinPAC programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system.
Environment monitoring, factory automation, building management system, industrial machine control, etc.
| System Software | |
| OS | Windows CE.NET 5.0 |
| .Net Compact Framework | 2.0 |
| Embedded Service | FTP server, Web server (supports VB script, JAVA script), Embedded SQL server |
| SDK Provided | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Development Software | |
| InduSoft Software | InduSoft Web Studio v6.1 Service Pack 3 |
| ISaGRAF Software | ISaGRAF Version 3 : IEC 61131-3 standard. Languages: LD, ST, FBD, SFC, IL & FC |
| Others | Options: Microsoft EVC++4.0 or VS.NET 2003/2005/2008 (VB.NET 2003/2005/2008, C#.NET 2003/2005/2008) |
| CPU Module | |
| CPU | PXA270 or compatible (32-bit and 520 MHz) |
| SRAM | 128 MB |
| Dual Battery Backup SRAM | 512 KB (for 5 years data retain) |
| Flash | 96 MB (64 MB for OS image, 31 MB for built-in Flash disk, 1 MB for registry) |
| EEPROM | 16 KB |
| Data Retention: 40 years; 1,000,000 erase/write cycles | |
| Expansion Flash Memory | microSD socket with one 1 GB microSD card (support up to 16 GB microSDHC card) |
| RTC (Real Time Clock) | Provide seconds, minutes, hours, day of week/month, month and year, valid from 1980 to 2079 |
| 64-bit Hardware Serial Number | Yes |
| Dual Watchdog Timer | Yes |
| Rotary Switch | Yes (0 ~ 9) |
| Communication Interface | |
| Ethernet | RJ-45 x 1, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB 1.1 (host) | 1 |
| COM0 | Internal communication with I-87K modules in slots |
| COM2 | RS-485 (D2+, D2-); self-tuner ASIC inside; 2500VDC Isolated. 2500 VDC |
| COM3 | RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); Non-isolated |
| MMI (Man Machine Interface) | |
| LCD | 3.5” TFT (Resolution 320 x 240) |
| Touch Panel | - |
| Rubber Keypad | 24 Keys |
| Audio | Microphone-In and Earphone-Out |
| LED Indicators | 3 Dual-Color LEDs (PWR, RUN, LAN1, L1, L2, L3; L1~L3 For User Programmable) |
| I/O expansion slots | |
| Slot Number | 3 (For High Profile I-8K and I-87K Modules Only) |
| Hot Swap * Will be available | For High Profile I-87K Modules Only |
| Mechanical | |
| Dimensions (W x L x H) | 182 mm x 158 mm x 125 mm |
| Ingress Protection | Front panel: IP65 |
| Environmental | |
| Operating Temperature | -20 ~ +70°C |
| Storage Temperature | -30 ~ +80°C |
| Ambient Relative Humidity | 5 ~ 90% RH, non-condensing |
| Power | |
| Input Range | +10V ~ +30VDC |
| Isolation | 1KV |
| Capacity | 2.5A, 5V supply to I/O expansion slots |
| Consumption | 7.2 W (0.3 A @ 24 VDC) |
