Applications

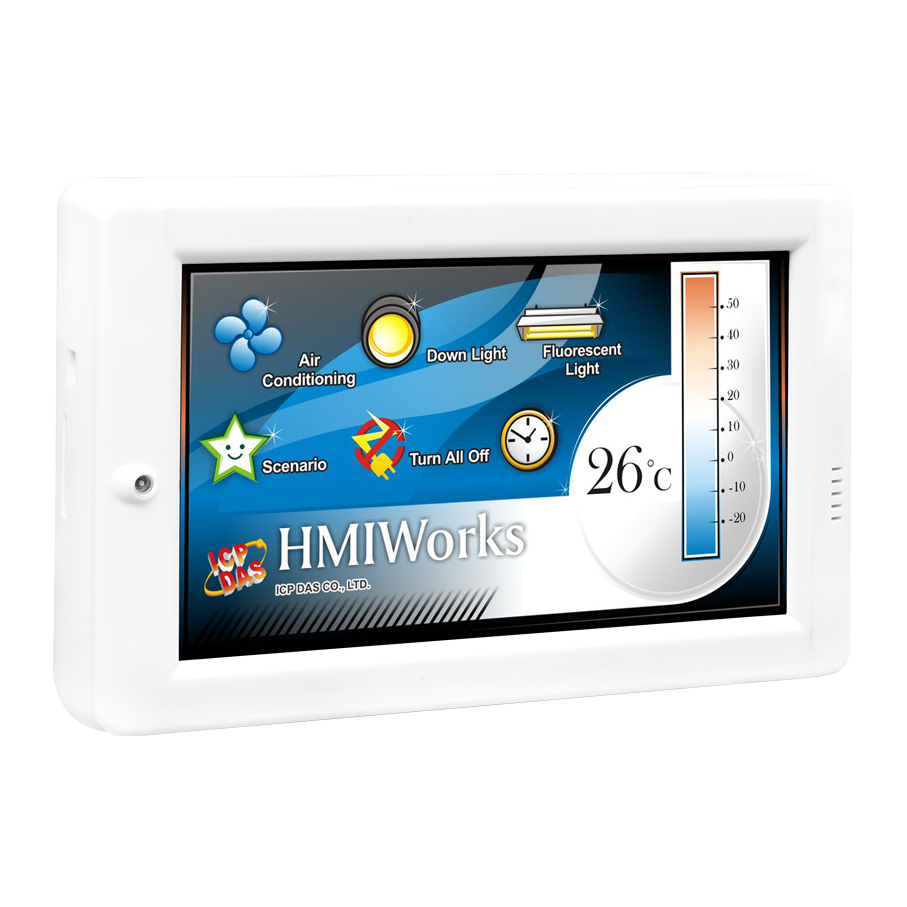

The TPD-433 TouchPAD is a tiny touch HMI PLC designed for building and home automation. The TPD-433 PLC is equipped with a high resolution TFT color touch screen and fits in with regular electrical wall-mount outlets. It seamlessly integrates with rich I/O modules and presents a beautiful, flexible and user-defined picture interface. In short, it is the best choice to upgrade mechanical switches to intelligent control pads.
For PLC users HMIWorks provides Ladder Designer, and for IT users, a C language environment is provided. It takes less than 30 minutes to learn how to create a GUI application program for the TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI Devices must be the most cost effective HMI Device in the history of the market.

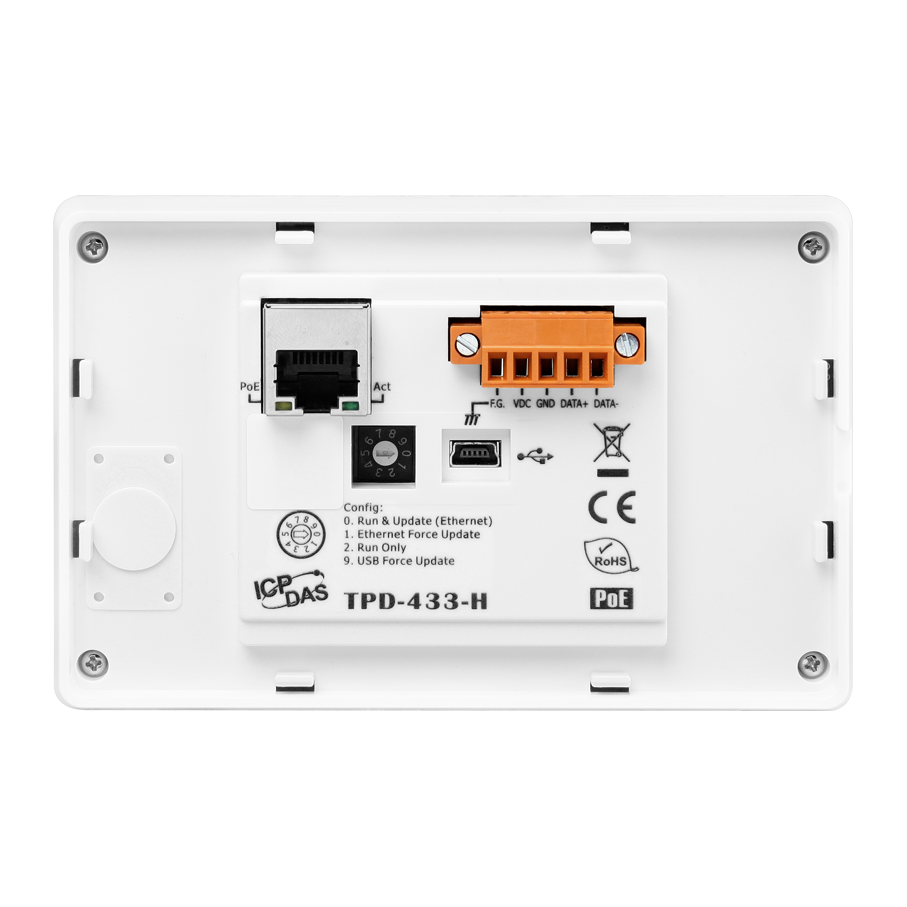

TPD-433F rear view
CPU Module
CPU
32-bit RISC CPU
Memory
16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC)
Yes
Rotary Switch (0~9)
Yes
Communication Interface
Serial Port
RS-485 (including Self-Tuner)
Ethernet
Yes (RJ-45 x 1, 10/100 Base-TX)
USB 1.1 Client
Firmware updates only
MMI (Main Machine Interface)
LCD
4.3” TFT(Resolution 480 X 272 X 16), Bright pixels <= 3
Backlight Life
20,000 hours
Brightness
400 cd/m2
Touch Panel
Yes
LED Indicator
Yes
Reset Button
Yes
Electrical
Power Input Range
+10 ~ 30 VDC
Powered from PoE
IEEE 802.3af, Class1 (48 V)
Power Consumption
2.5 W (104 mA @ 24 VDC)
Mechanical
Dimensions (W x L x H)
126 mm x 82 mm x 24 mm
Installation
Wall Mount (Suitable for the outlet box in United States)
Environmental
Operating Temperature
-20 ~ +50 °C
Storage Temperature
-30 ~ +80 °C
Ambient Relative Humidity
10 ~ 90% RH, non-condensing
