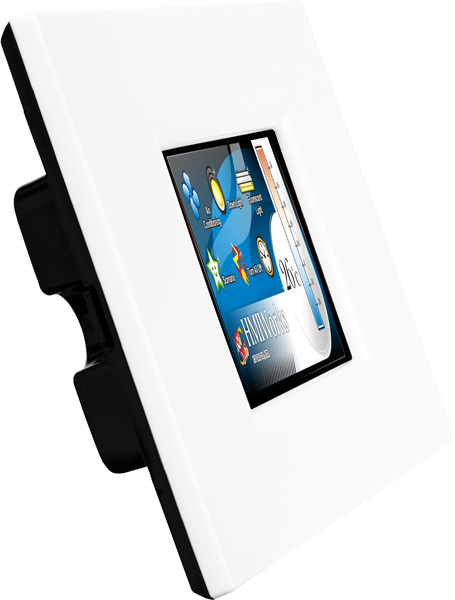

TPD-283-M1 2.8" inch is a tiny touch HMI device designed for building and home automation. It is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. It integrates seamlessly with I/O modules and presents beautiful, flexible, and user-defined picture frame. It is the best choice for upgrading the mechanical switch to intelligent control pads.
HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. It only takes less than 30 minutes to create an application program of TPD-series devices when using Ladder Designer. We provide redundant solutions in our PoE version, including the TPD-283/283U-Mx of the TPD-series HMI devices. With all the features provided, TPD-series touch HMI devices are the most cost effective HMI Device in the market.
| Hardware | ||
| CPU | 32-bit RISC CPU | |
| Memory Expansion | - | |
| Real Time Clock (RTC) | - | |
| Buzzer | Yes | |
| Rotary Switch (0~9) | Yes | |
| Communication Interface | ||

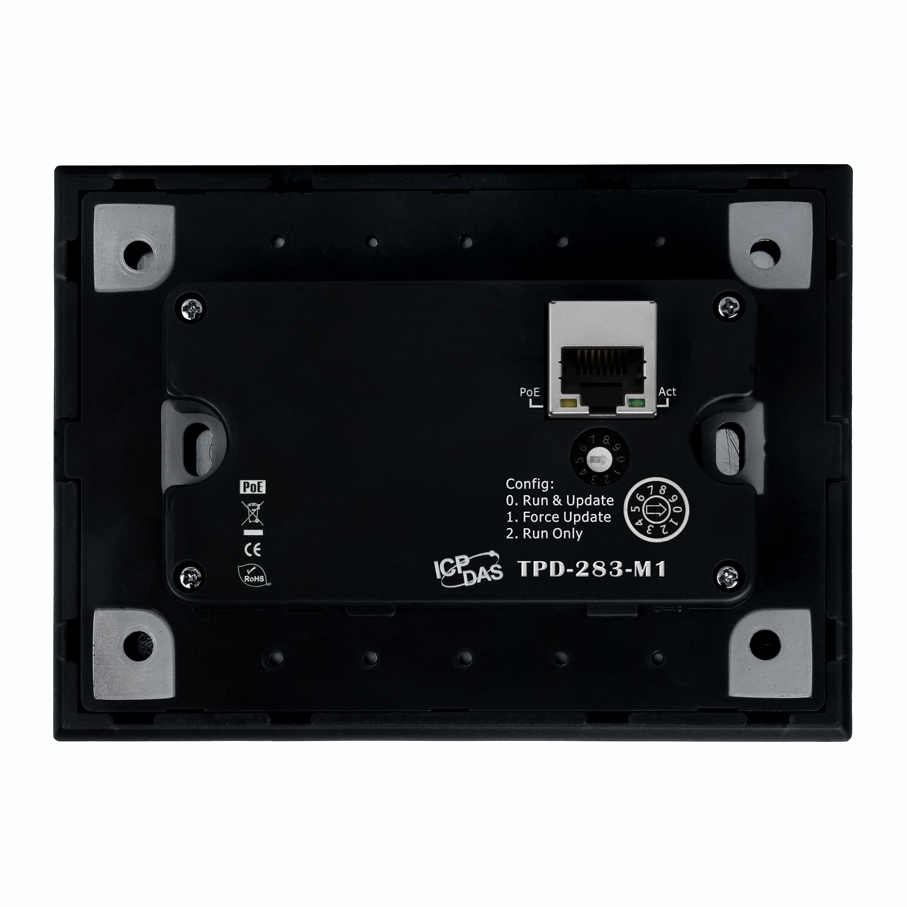

| Ethernet | RJ-45 x 1, 10/100 Base-TX | |
| Protocol | Modbus TCP | |
| MMI (Main Machine Interface) | ||
| LCD | 2.8” TFT (Resolution 240 x 320 , 65535 colors) | |
| Backlight Life | 20,000 hours | |
| Brightness | 160 cd/m2 | |
| Touch Panel | Resistive Touch | |
| Reset Button | Yes | |
| Electrical | ||
| Powered from Terminal Block | - | |
| Powered PoE | IEEE 802.3af, Class1 (48 V) | |
| Power Consumption | 1.5 W | |
| Mechanical | ||
| Dimensions (W x L x H) | 127 mm x 92 mm 31 mm | |
| Installation | Wall Mount | |
| Ingress Protection | Front Panel: IP40 | |
| Environmental | ||
| Operating Temperature | -20°C ~ +70°C (-4°F ~ +158°F) | |
| Storage Temperature | -30°C ~ +80°C (+86°F ~ +176°F) | |
| Ambient Relative Humidity | 10~90% RH, non-condensing | |
