TPD-280U

$0.00

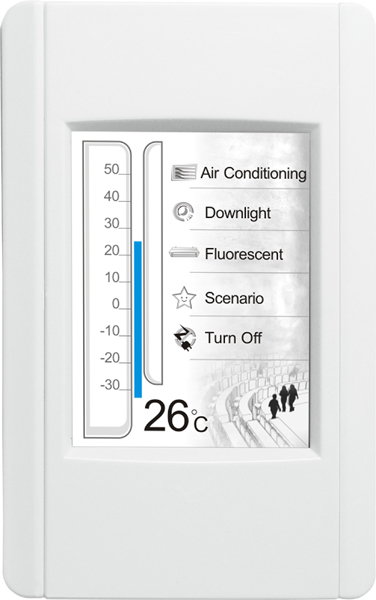

TPD-280U 2.8" Compact Touchpad Touch Screen HMI Controller with high resolution 2.8 inch TFT color touch screen, USB port and Real Time Clock. Communicable over RS-485 and Modbus RTU. Includes free HMIWorks software for Ladder Logic and C language programming and GUI development environment. Can fit in electrical wall outlets. Supports operating temperatures between -20 ~ +70°C (-4F ~158F).

Product Unavailable

Share On:
Categories:	TouchPad Controller \| TouchPad Touch Screen Controllers
Review:	Write your review
Resources:	User's Manual Quick Start Guide Data Sheet Getting Started HMI Works Software Release Note TouchPad Manuals & Demo Programs DCON Utility Application Video Modbus RTU I/O Modules RS-485 I/O Modules

This product is phased out and replaced by TPD-280U-H

The ICP DAS Touchpad is a small touch screen controller HMI designed for building and home automation and supports Modbus protocols. TPD-280 and TPD-280U touch screen HMI's are equipped with a high resolution 2.8'' TFT color touch screen, 32-bit RISC CPU, and RS-485 serial port. TPD-280U also features a real time clock and a USB port for convenient interfacing with a PC. TPD-280/U touch screen controller supports Modbus RTU protocols.

The TPD-280/U touch screen controller can conveniently fit in regular electrical wall-mounted outlets. It can be easily integrated with I/O modules, sensors, motors, and SCADA software. TPD-280 and TPD-280U touch screen HMI come with free HMIWorks development software that allows Ladder Logic and a C programming. Users can quickly develop your programs with the flexible development tools and large library provided. With the user-friendly interface of HMIWorks, users can create a beautiful, flexible and custom picture display on the screen.

Excellent cost/performance ratio
2.8'' high resolution TFT color touch screen
Supports RS-485 and Modbus RTU protocol
WYSIWYG (What You See Is What You Get) GUI design environment
Free and easy-to-use HMIWorks development tool
Support C/C++ programming language
Support Ladder Designer programming
Easy integration with Modbus based remote I/O modules and SCADA software
Supports operating temperature: -20 ~ 70°C (-4F ~158F)
Supports other vendors' Modbus RTU devices through custom c programming

Fits in Regular Wall Outlets
Touch screen HMI controller for home automation

Specifications

Models	TPD-280U
CPU Module
CPU	32-bit RISC CPU
Memory Expansion	16 MB SDRAM / 8 MB Flash
Real Time Clock (RTC)	Yes
Buzzer	Yes
Rotary Switch (0~9)	Yes
Communication Interface
Ethernet	-
Serial Port	RS-485 (including Self-Tuner)
USB 1.1 Client	Firmware Updates Only
Main Machine Interface(MMI)
LCD	2.8 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life	20,000 Hours
Backlight Life	20,000 Hours
Brightness	160 cd/m2
Touch Panel	Yes
Reset Button	Yes
Electrical
Powered from Terminal Block	+10 ~ 30 VDC
Power Consumption	1.2 W
Mechanical
Dimension (W x L x H)	76 mm x 119 mm x 33 mm
Wall Mount	Yes
Ingress Protection	Front Panel: IP40
Environmental
Operating Temperature	-20 ~ +70 °C
Storage Temperature	-30 ~ +80 °C
Ambient Relative Humidity	10 ~ 90% RH, non-condensing
