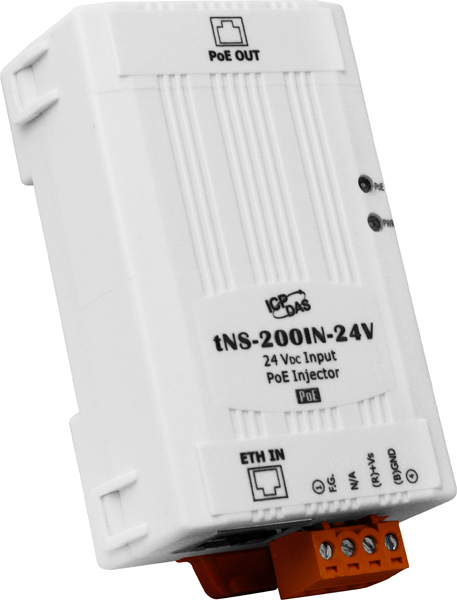

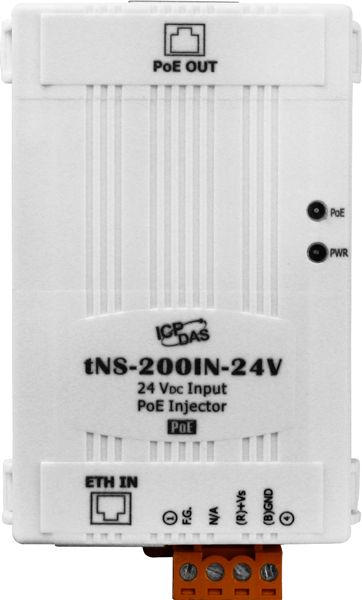

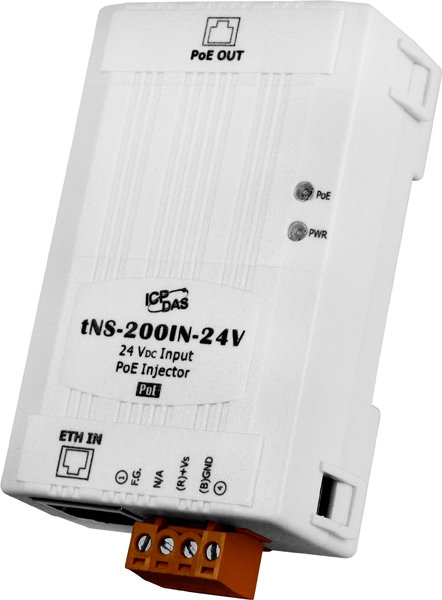

The tNS-200IN/tNS-200IN-24V single port PoE Injector supports PoE powered devices in industrial environments. The tNS-200IN/tNS-200IN-24V delivers both data and power over a single standard Ethernet cable to a PoE powered device designed to receive both data and power through its RJ-45 port connector.
The tNS-200IN-24V is designed with 24 VDC to 48 VDC boost for PoE application where 48 VDC power supply is not available.
| LED Indicators | |
|---|---|
| Status | Power, Power Device is detected |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45 in, 1 x PoE out, 10/100Base-T(X) |
| PoE Technology | |
|---|---|
| PoE Compliance | 100% IEEE 802.3af compliant |
| PoE Power | Up to 15.4 W |
| PoE Pin Assignments | V+ (Pin 4,5), V- (Pin 7,8) |
| PoE Voltage | +48 VDC depending on power input |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | +18 ~ +32 VDC |
| Consumption | 0.8 A@ 24 VDC with PD full loading |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 52 x 86 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -40 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
