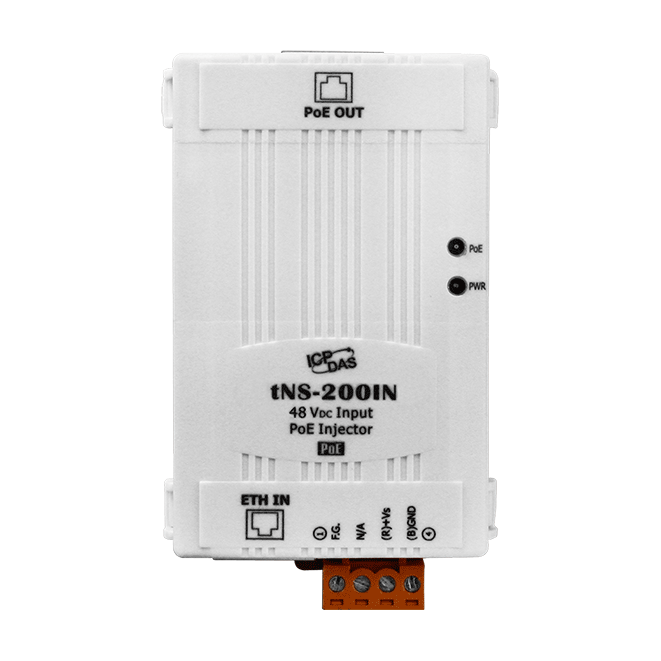

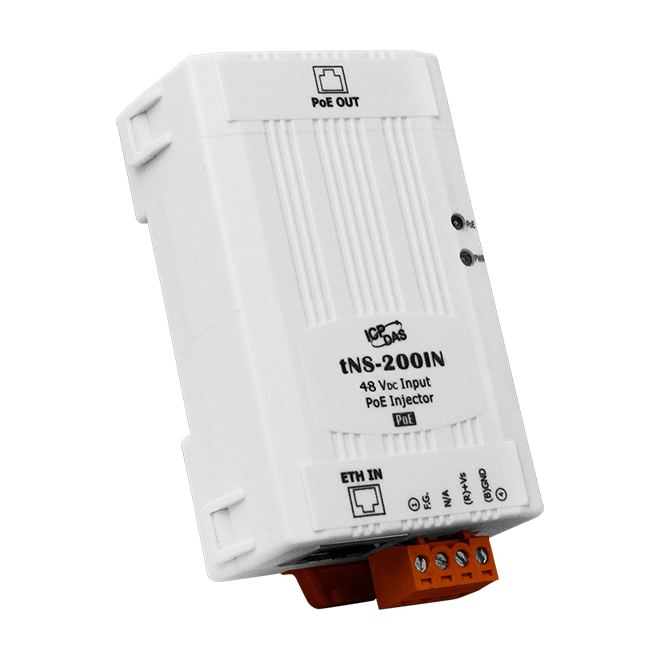

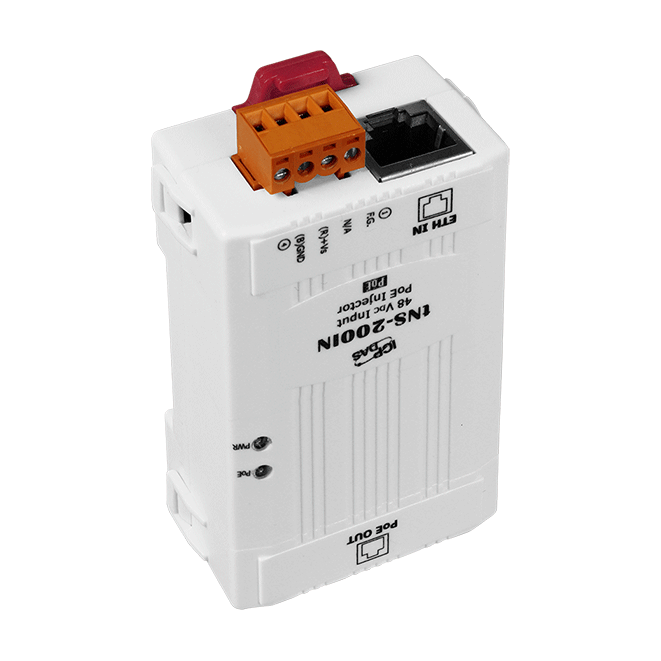

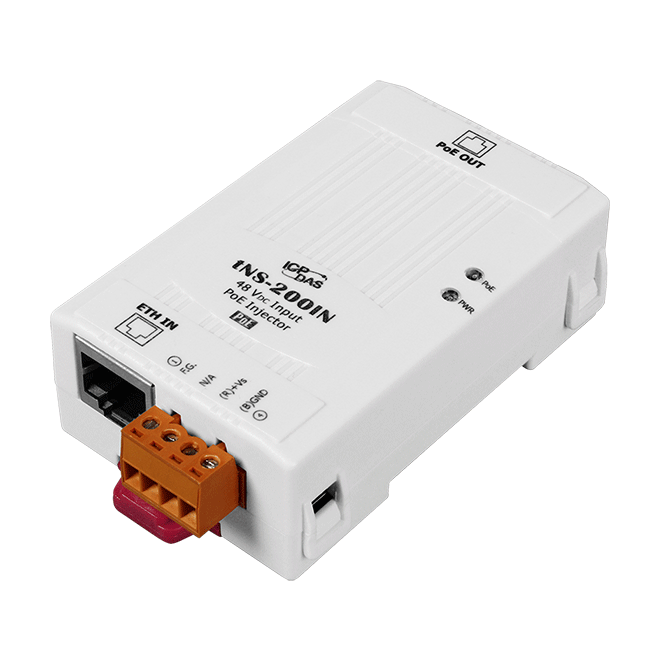

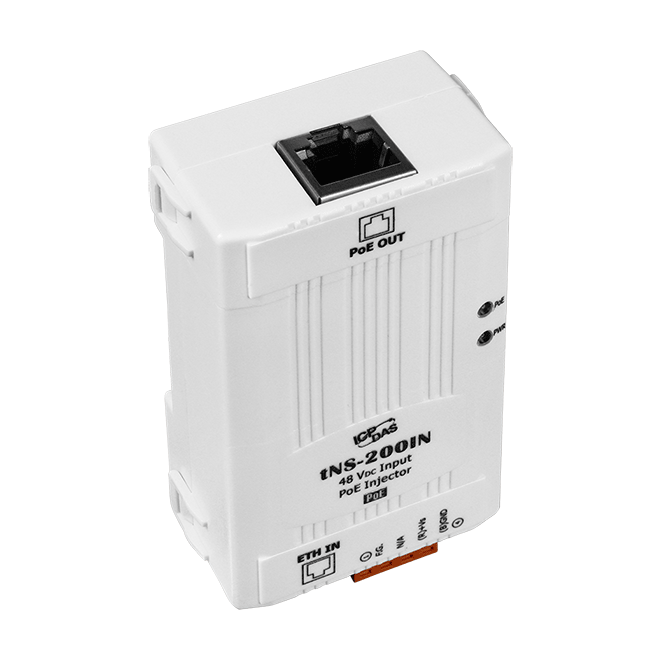

The tNS-200GIN is a single Port PoE Injector supports PoE powered devices in industrial environments. The tNS-200GIN delivers both data and power over a single standard Ethernet cable to a PoE Powered Device designed to receive both Data and Power through its RJ-45 port connector.
Other features this product also offers are:
|
PoE Technology
|
|
|
Status
|
Power, Power Device is detected |
|
Ethernet
|
|
|
Ports
|
1 x RJ-45 in, |
| 1 x PoE out, | |
| 10/100/1000Base-T(X) | |
|
PoE Technology
|
|
|
PoE Compliance
|
100% IEEE 802.3at compliant |
|
PoE Power
|
Up to 30 W |
|
PoE Operation
|
Automatic detection and power management |
|
PoE Pin Assignments
|
V+ (Pin 4,5), V- (Pin 7,8) |
|
PoE Disconnect Mode
|
DC disconnect |
|
PoE Voltage
|
+48 VDC depending on power input |
|
Power
|
|
|
Reverse Polarity Protection
|
Yes |
|
Input Range
|
+46 ~ +53 VDC |
|
Consumption
|
0.7 A@ 48 VDC with PD full loading |
|
Mechanical
|
|
|
Casing
|
Plastic |
|
Dimensions
|
52 x 86 x 27 (W x L x H) |
|
Installation
|
DIN-Rail |
|
Environment
|
|
|
Operating Temperature
|
-40 °C ~ +75 °C |
|
Storage Temperature
|
-40 °C ~ +85 °C |
|
Humidity
|
10 ~ 90% RH, Non-condensing |
