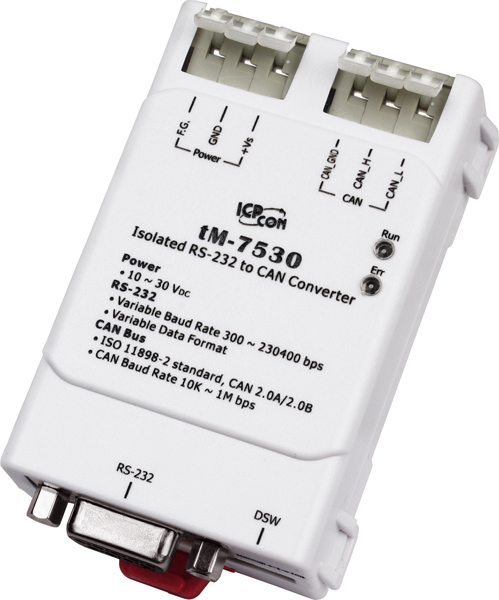

tM-7530A

$339.00

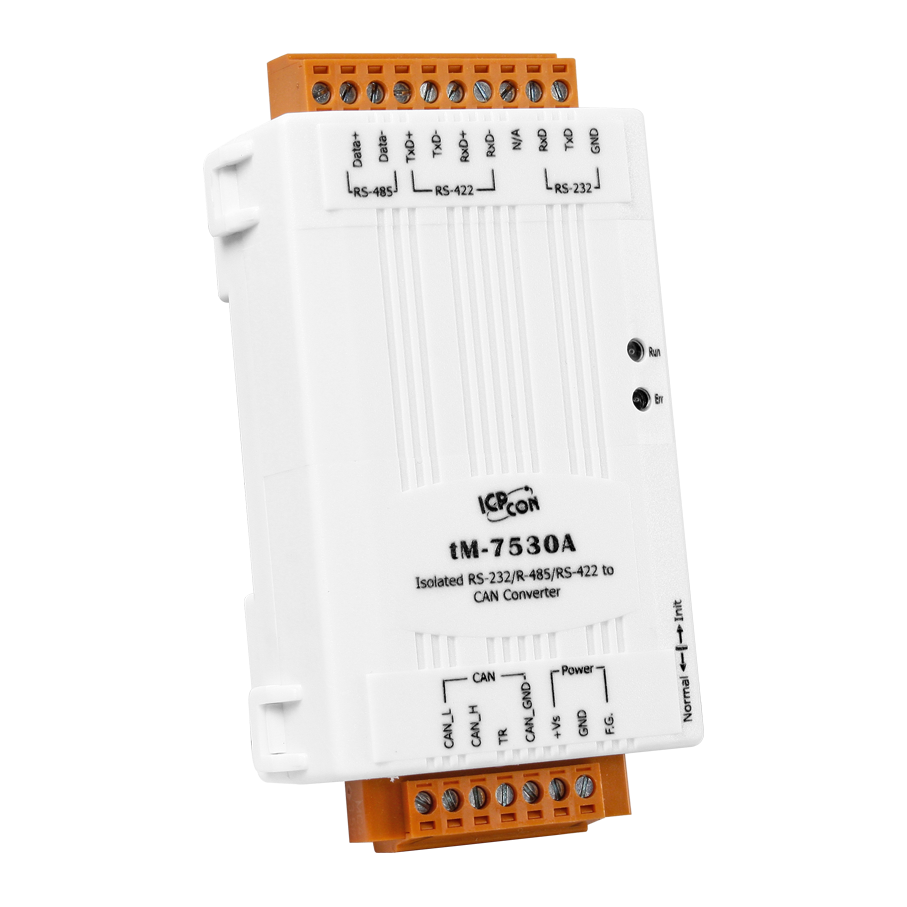

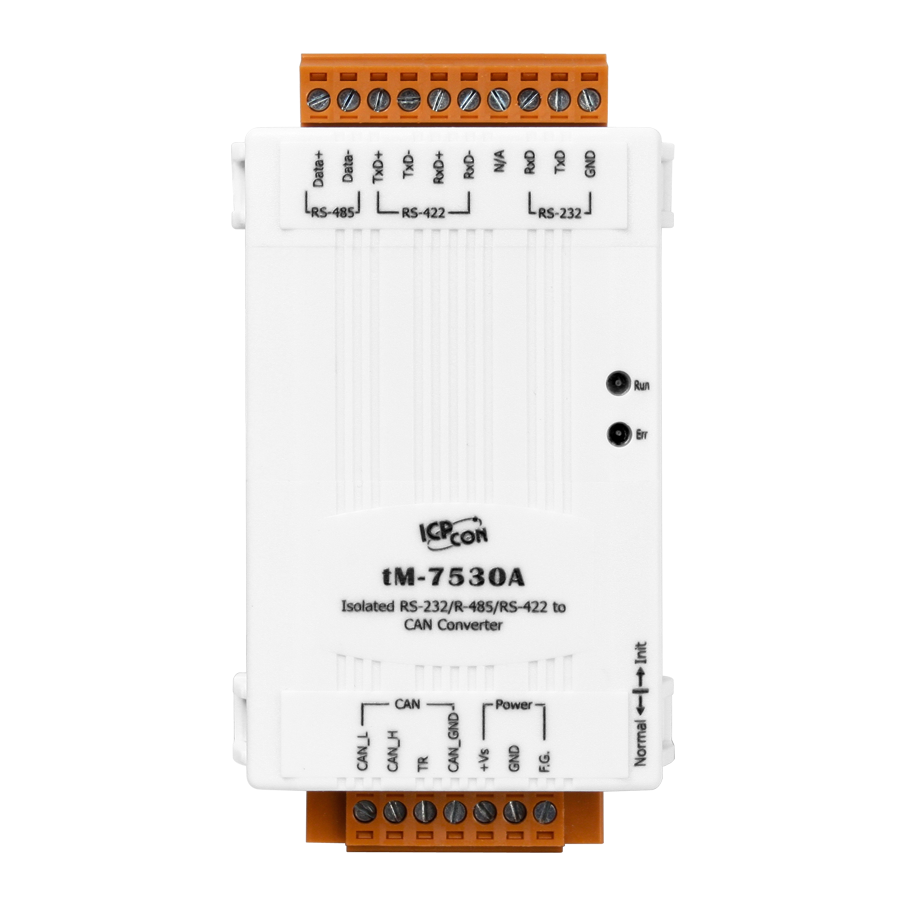

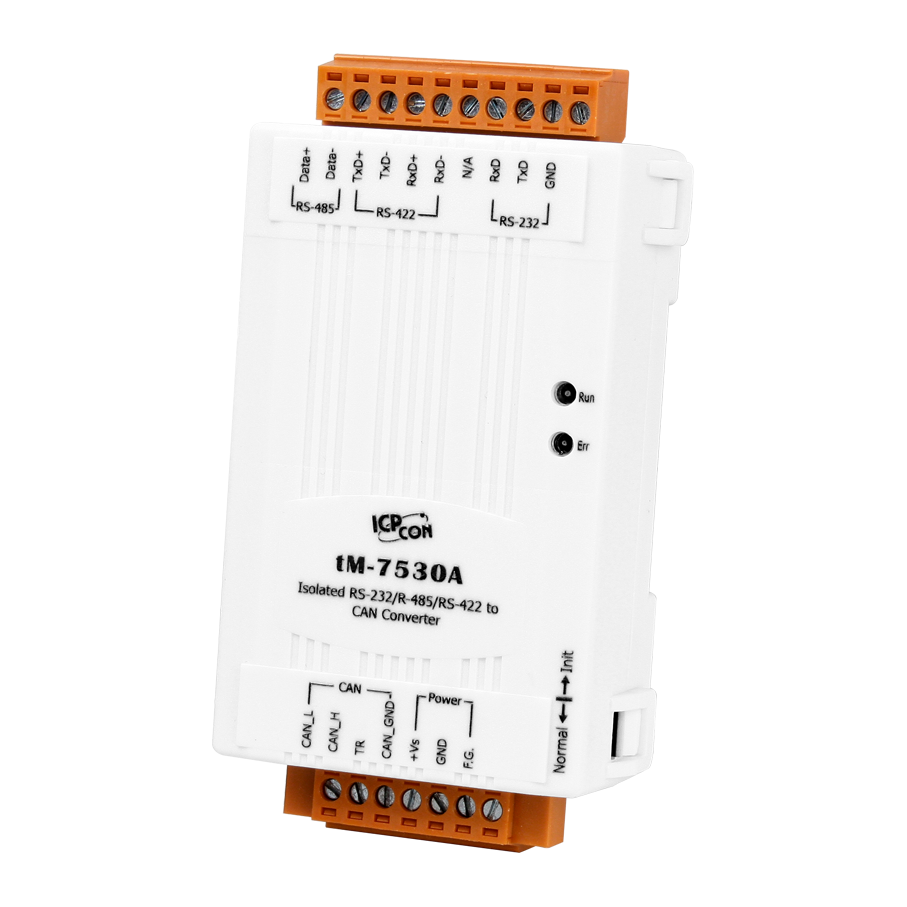

Tiny UART RS-232/422/485 to CAN Converter

Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	CAN Communication Converters \| RS-232/422/485 Converters \| CANBus Converters and Gateways \| RS-232/422/485 Converters
Review:	Write your review
Resources:	Data Sheet Quick Start User's Manual PIN Assignment Wire Connection

tM-7530A UART/CAN converters can help users to implement the communication between UART and CAN network. ICP DAS provides a new solution of UART /CAN converter-tM-7530A. The tM-7530A is a tiny UART/CAN converter to fit narrower environment as a result of its small size. It has isolation on power side and on CAN bus side and its performance is faster than other UART/CAN module. The function of tM-7530A is full compatibly with I-7530 and I-7530T. In additional, it provides new function such as listen only mode. User can use this function to listen to CAN bus messages and error detection. tM-7530A is an economical and practical UART/CAN converter solution.

Product Features

Compatible with CAN specification 2.0A and 2.0B
Fully compatible with ISO 11898-2 standard
Support various CAN baud rate from 10K bps to 1M bps
Support user-defined CAN baud rate
Support various UART baud rate from 110 bps to 230400 bps
Build-in selectable 120 ? terminator resistor
Software configurable CAN and UART communication parameters
Power, data flow, and error indicator for CAN and UART
Watchdog inside
Support pair connection mode
Software buffer on CAN bus side and UART side
Support user-defined end of characters on pair connection mode
Support listen only mode · Support time stamp response on UART side

Software Features

CAN bus baud rate configuration
CAN bus ID filter configuration
CAN 2.0A or CAN 2.0B specification selection
UART baud rate and data format configuration
Communication mode(normal , pair connection , and listen only mode ) configuration
Easy test to transmit/receive CAN messages
CAN bus data flow detection
Group Send CAN messages for special application
Trigger event setting for advance received CAN messages. · Integrate all CAN bus converter utility of ICP DAS.

Applications

Control System
Building Automation
Factory Automation
Distributed data acquisition

Performance Test

Performance test: from CAN to RS-232(115200, n, 8, 1). Unit: Frames Per Second (FPS).
Baud rate	1000K	800K	500K	250K	125K	50K	20K	10K
CAN 2.0A	519	519	523	522	522	416	176	88
CAN 2.0B	423	423	426	425	426	353	146	74

Performance test: from RS-232(115200, n, 8, 1) to CAN. Unit: Frames Per Second (FPS).
Baud rate	1000K	800K	500K	250K	125K	50K	20K	10K
CAN 2.0A	523	524	523	522	520	451	180	90
CAN 2.0B	425	426	427	426	427	377	150	75

Specifications

CAN Interface

Transceiver

NXP TJA1042

Channel number

Connector

7-pins screwed terminal block(CAN_H, CAN_L, CAN_GND)

Baud Rate (bps)

10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 Mbps

Isolation

3000 VDC for DC-to-DC, 2500 Vrms for photo-couple

Terminator Resistor

Build-in selectable 120 ? terminator resistor

Specification

ISO-11898-2, CAN 2.0A and CAN 2.0B

UART Interface

COM

RS-232, RS-485, RS-422

Connector

10-pins screwed terminal block

Baud Rate (bps)

110, 150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400

Data bit

5, 6, 7, 8

Stop bit

1, 2

Parity bit

None, Even, Odd

LED

Round LED

ON LED: Power and Data Flow; ERR LED: Error Status

Power

+10 ~ +30 VDC

Protection

Power reverse polarity protection, Over-voltage brown-out protection

Power Consumption

Mechanism

Installation

DIN-Rail

Dimensions

52mm x 93mm x 27mm (W x L x H)

Environment

Operating Temp.

-25 ~ 75°C

Storage Temp.

-30 ~ 80°C

Humidity

10 ~ 90% RH, non-condensing
