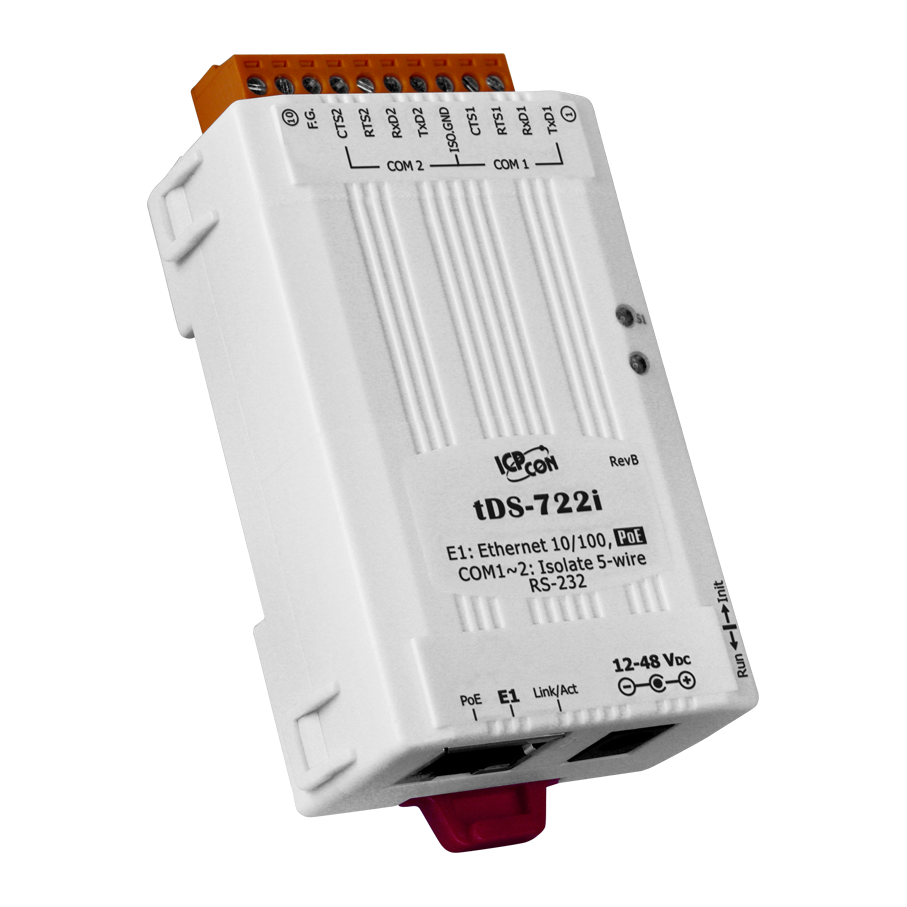

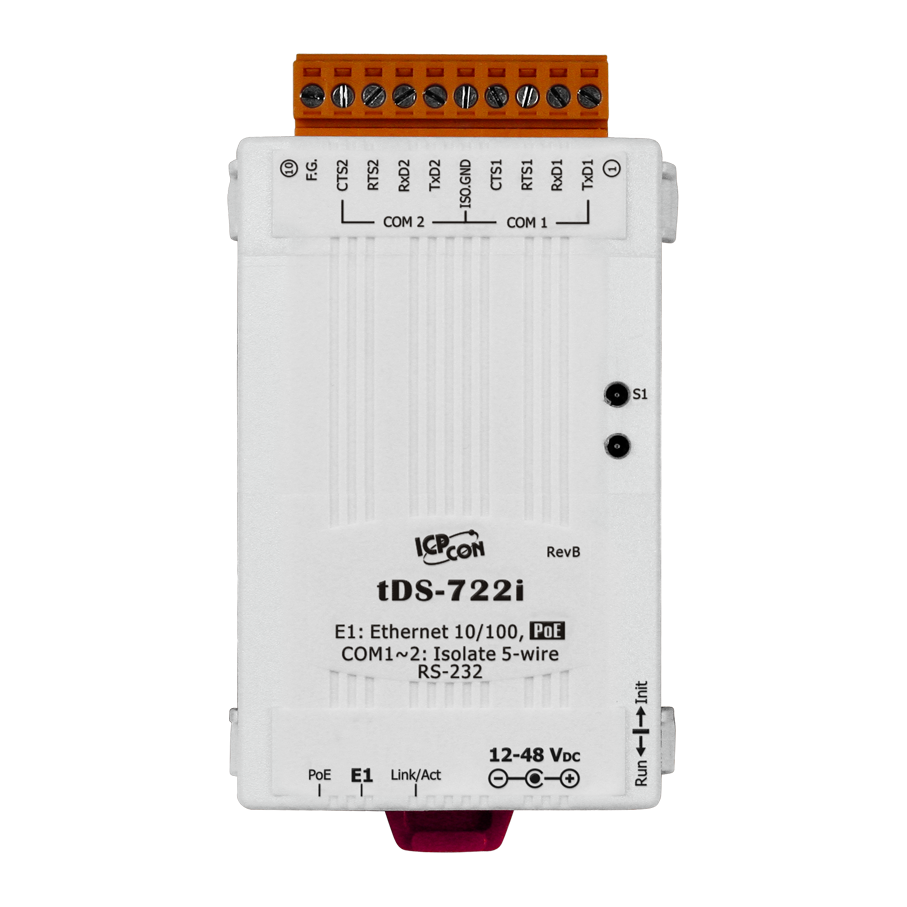

tDS-722i

ICP DAS USA’s tDS-722i is a Serial-to-Ethernet device server that increases Ethernet and Internet connectivity to any RS-232 device while eliminating the cable length limitation of legacy serial communication. The tDS-722i can also be used for remote controlling of your serial devices through Ethernet network. By using the VxComm Driver/Utility, the built-in COM port of the tDS-722i can be virtualized to a standard PC COM port in Windows. Many serial devices are not equipped with network ports; the tDS-722i allows those devices to connect to the network.Therefore, users can transparently access or monitor serial devices over the Internet/Ethernet without software modification. The tDS-722i also adds 3000 VDC isolation and +/-4 kV ESD protection component that diverts the potentially damaging charge away from sensitive circuit to protect the modules and equipment from the sudden and momentary electric current.

• Incorporates any RS-232/422/485 serial device in Ethernet
• Data transmission via Virtual COM or raw TCP connection
• VxComm Driver for 32-bit and 64-bit Windows XP/2003/2008/Vista/7/8/10
• Max. connections : 1 socket per serial port is suggested
• Supports pair-connection (serial-bridge, serial-tunnel) applications
• Supports TCP client-mode and TCP server-mode operations
• Supports UDP responder for device discovery (UDP Search)
• Static IP or DHCP network configuration
• Easy firmware update via the Ethernet (BOOTP, TFTP)
• Tiny Web server for configuration (HTTP)
• Contains a 32-bit MCU that efficiently handles network traffic
• 10/100 Base-TX Ethernet, RJ-45 x 1 (Auto-negotiating, auto MDI/MDIX, LED Indicators)
• Includes redundant power inputs: PoE (IEEE 802.3af, Class 1) and DC jack
• Allows automatic RS-485 direction control
• 3000 VDC Isolation and +/-4 kV ESD protection for i versions
• Male DB-9 or terminal block connector for easy wiring
• Tiny form-factor and low power consumption
• RoHS compliant & no Halogen
• Cost-effective device servers

Applications

• Factory, Building and Home Automation
• Remote Diagnostics and Management
