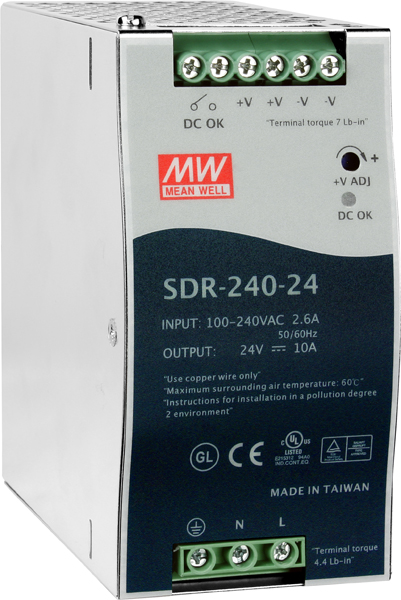

SDR-240-24

$459.00
24 V / 10 A, 240 W Single Output Industrial DIN Rail Power Supply with PFC Function. Built-in active PFC function, operating temperature range of -25°C ~ 70°C (-13°F ~ 158°F). Replacement with DP-1200 for the DR-120-24.
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Power Supplies
Review: Write your review
Resources:
  • CE CertificationCE Certification
  • FCC CertificationFCC Certification
  • Block DiagramBlock Diagram
  • DC OK DiagramDC OK Diagram
  • Mechanical SpecificationMechanical Specification
  • Output DeratingOutput Derating
  • Peak LoadingPeak Loading
    		•
  • High efficiency 94% and low power dissipation
  • 150% peak load capability
  • Built-in active PFC function, PF>0.93
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • Built-in DC OK relay contact
  • 100% full load burn-in test

    • Specifications

    Output
    DC Voltage
    24 V
    Rated Current
    10 A
    Current Range
    0 ~ 10 A
    Rated Power
    240 W
    Peak Current
    15 A
    Peak Power - Note 6
    180 W (3 sec.)

    Ripple & Noise (max.)

    100mVp-p
    Voltage Adj. Range 24 ~ 28 V
    Voltage Tolerance ±1.0%
    Line Regulation ±0.5%
    Load Regulation ±1.0%
    Setup, Rise Time 1500ms, 60ms/230 VAC
    3000ms, 60ms/115 VAC at full load
    Hold Up Time (Typ.) 20ms/230 VAC
    20ms/115 VAC at full load
    Input
    Voltage Range 88 ~ 264 VAC
    124 ~ 370 VDC
    Frequency Range 47 ~ 63Hz
    Power Factor (Typ.) 0.93/230 VAC
    0.99/115 VAC at full load
    Efficiency (TyINPUT p.) - Note. 8 94%
    AC Current (Typ.) 2.6 A/115 VAC
    1.3 A/230 VAC
    Inrush Current (Typ.) 33 A/115 VAC
    65 A/230 VAC
    Leakage Current <1 mA/240 VAC
    Protection
    Overload Normally works within 110 ~ 150% rated output power for more than 3 seconds and then shut down o/p voltage with auto-recovery
    >150% rated power, constant current limiting with auto-recovery within 2 seconds and may cause to shut down if over 2 seconds
    Over Voltage
    29 ~ 33V
    Protection type : Shut down o/p voltage with auto-recovery
    Over Temperature
    95°C ±5°C (TSW : detect on heatsink of power switch)
    Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
    Function
    DC OK Realy Contact Ratings (max.) 60 Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load
    Environment
    Working Temperature - Note. 5 -25 ~ +70°C (Refer to "Derating Curve")
    Working Humidity 20 ~ 95% RH non-condensing
    Storage Temperature, Humidity -40 ~ +85°C , 10 ~ 95% RH
    Temperature Coefficient ±0.03%/°C (0 ~ 50°C)
    Vibration
    Component:10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
    Safety & EMC (Note 4)
    Safety Standards UL508, TUV EN60950-1 approved
    Withstand Voltage I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC     O/P-DC OK:0.5KVAC
    Isolation Resistance I/P-O/P, I/P-FG, O/P-FG:>100M Ohms / 500VDC / 25°C / 70% RH
    EMC Emission Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
    EMC Immunity
    Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), EN61204-3, heavy industry level, criteria A, SEMI F47, GL approved
    Other
    MTBF 169.3K hrs min.     MIL-HDBK-217F (25 °C)
    Dimensions 63mm x 125.2mm x 113.5mm (W x H x D)
    Packing
    1.03Kg; 12pcs/13.4Kg/1.06CUFT
    Note
    1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
    2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
    3. Tolerance : includes set up tolerance, line regulation and load regulation.
    4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
    5. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
    6. 3 seconds max., please refer to peak loading curves.
    7. Derating may be needed under low input voltage. Please check the derating curve for more details.

    Add a review

    Your email address will not be published. Required fields are marked *

    Overall ratings
    Select Rating *
    You must be signed in to review! Click here to sign in.
    Related Products

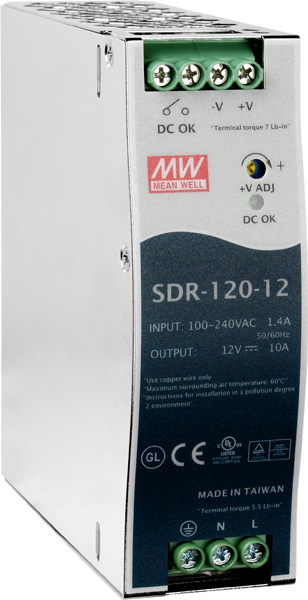

    SDR-120-12
