Introduction

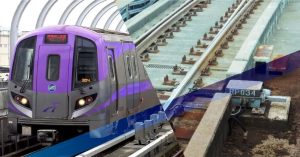

Railroad switches are critical to safe train operations. To improve reliability and reduce maintenance risks, USCIENCE COMPUTER CO. deployed ICP DAS USA’s IoT-based monitoring solution for the Taoyuan Metro System.

Solution Overview

The solution continuously monitors railroad switch performance, collecting operational data and providing real-time alarms, analysis, and reporting. By giving operators instant visibility into switch conditions across the network, ICP DAS USA helps Taoyuan Metro improve safety, reduce failures, and streamline maintenance.

ICP DAS USA’s Railroad Switch Monitoring Solution

ICP DAS USA’s solution combines trackside data acquisition with centralized monitoring. AVEVA Edge SCADA provides real-time visualization, reporting, and alarm management, while the WP-8821-CE7 PAC and I/O modules capture switch motor current, voltage, operating time, and other key performance data.

This integrated system gives operators continuous visibility into switch conditions, helping improve safety, reduce failures, and streamline maintenance.

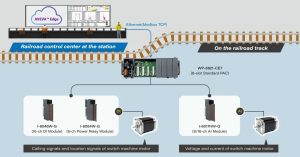

System architecture is shown below.

The I-8017HW-G captures switch motor voltage and current data, while the I-8046W-G collects operating and positioning signals from trackside sensors. The I-8064W-G monitors relay contact status, providing additional visibility into switch operation.

The WP-8821-CE7 PAC serves as the system’s data logger, recording key switch performance metrics and transmitting field data to the control center via Modbus TCP over fiber-optic communications.

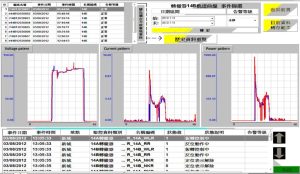

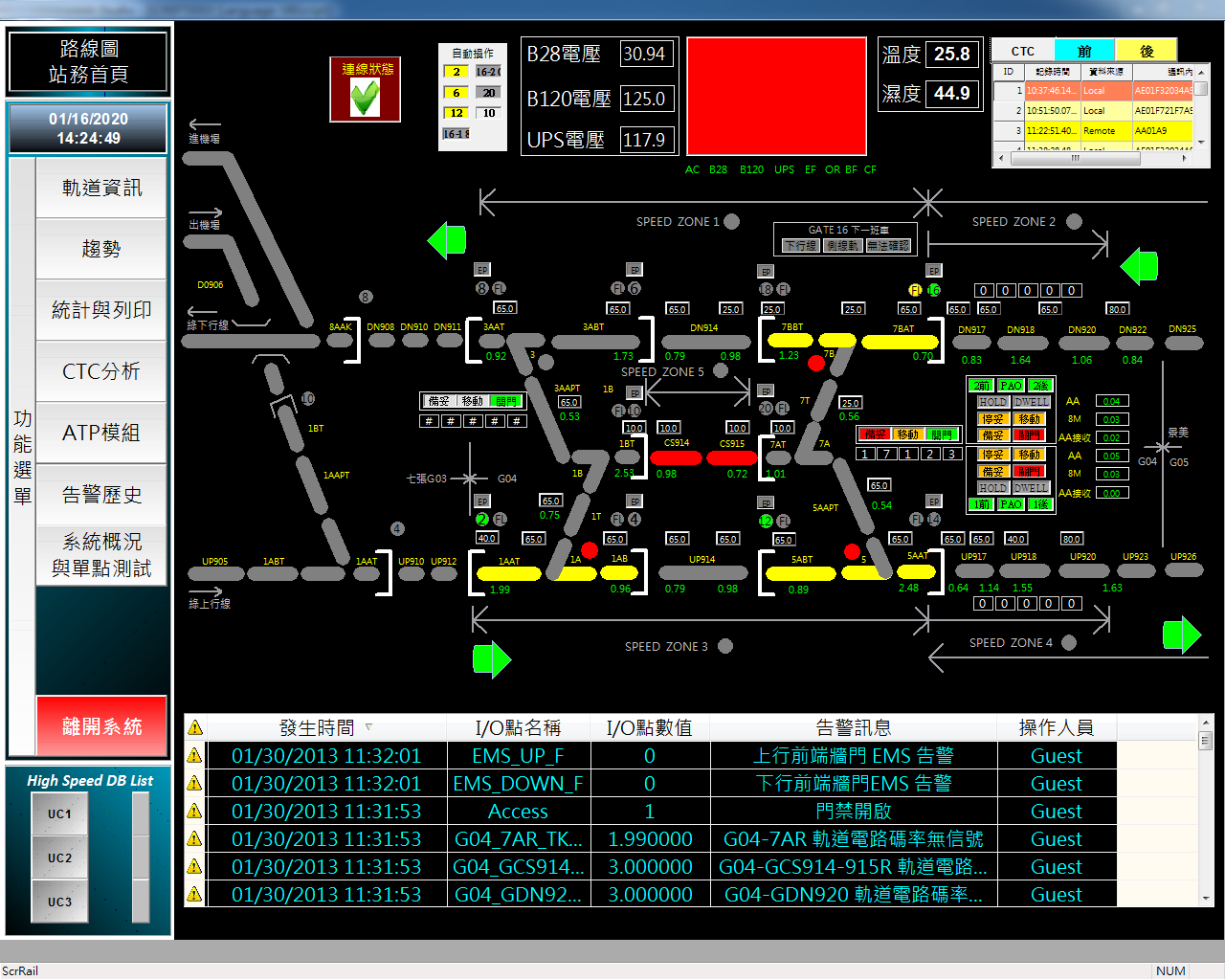

At the control center, AVEVA Edge SCADA delivers real-time monitoring, historical data analysis, waveform visualization, and alarm management, enabling operators to quickly identify abnormal conditions and maintain reliable railroad switch operation.

Benefits of ICP DAS USA’s Railroad Switch Monitoring Solution

Key Benefits

1. Predictive and Preventive Maintenance Continuous monitoring enables maintenance teams to analyze historical data, identify the root causes of switch failures, and detect potential issues before they lead to downtime. This supports planned maintenance strategies and reduces unexpected failures.
2. Reliable Operation in Harsh Railway Environments Railway systems operate in demanding outdoor and high-voltage environments. ICP DAS USA’s controllers and I/O modules are designed for industrial reliability and undergo EMI, temperature, and environmental testing to ensure stable and safe performance in challenging conditions.
3. Enhanced System Availability The WP-8821-CE7 PAC features a built-in redundant power input, allowing connection to a Redundant Power System (RPS) or Uninterruptible Power Supply (UPS). This helps maintain uninterrupted switch monitoring during power disruptions.
4. Flexible and Space-Saving Design With eight I/O expansion slots, the WP-8821-CE7 PAC supports flexible system configuration while minimizing panel space requirements. Additional modules can be added as operational needs evolve.
5. Early Warning and Condition-Based Maintenance AVEVA Edge SCADA provides trend analysis and predictive monitoring capabilities. By tracking key parameters such as switch operating time and motor current peaks, the system can generate alerts when values exceed predefined thresholds, allowing maintenance personnel to address issues before failures occur.

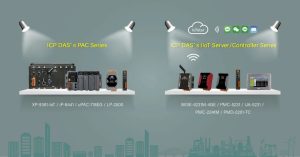

ICP DAS USA Controllers for Industrial Automation

ICP DAS USA offers a broad range of industrial controllers designed for automation, monitoring, energy management, and IIoT applications. These solutions fall into two primary categories:

Programmable Automation Controllers (PACs)

The 8000 and 9000 Series PACs provide open-platform control with support for multiple operating systems, including Windows, Windows CE, Linux, and others. They are well suited for applications requiring advanced logic and reliable operation in complex environments, such as:

• Railroad signal and switch monitoring
• Traffic flow monitoring
• Temperature-controlled storage monitoring
• Renewable energy and energy storage monitoring
• Industrial process automation

IIoT Controllers

ICP DAS USA’s IIoT controller lineup includes:

• WISE Series Edge Controllers
• PMC and PMD Power Meter Concentrators
• UA Series Communication Servers

These solutions support industrial IoT connectivity, edge computing, environmental monitoring, and seamless communication between field devices, control systems, and cloud platforms.

WISE Series Edge Controllers

WISE controllers support both wired and wireless communications, including Ethernet and 3G/4G connectivity. Their built-in IF-THEN-ELSE logic engine allows users to implement automation workflows without complex programming while supporting scheduling, mathematical functions, alarms, and email notifications.

PMC and PMD Power Meter Concentrators

PMC and PMD devices collect and log real-time energy consumption data from smart power meters via RS-485 or Ethernet networks. These platforms simplify energy monitoring and management across industrial facilities.

UA Series Communication Servers

UA communication servers help bridge operational technology (OT) and information technology (IT) systems by connecting field devices, cloud platforms, web applications, and Industrial IoT environments.

Key IIoT Controller Features

ICP DAS USA’s IIoT controllers provide several capabilities that support modern industrial monitoring and automation:

• Multiple Communication Options
  Support for Ethernet (Modbus TCP), RS-485 (Modbus RTU), and MQTT communications enables secure and flexible data transmission to local and cloud-based systems.
• Real-Time Alerts and Notifications
  When abnormal conditions occur, notifications can be sent immediately through email, SMS, LINE, WeChat, and other messaging platforms, helping teams respond quickly.
• Built-In Automation Logic
  WISE, PMC, and PMD devices include integrated IF-THEN-ELSE logic functions, enabling reliable local automation without additional programming software.
• Data Recovery and Reliability
  Automatic data backup and recovery features help prevent information loss during communication interruptions, ensuring data integrity and continuous monitoring.

Conclusion

ICP DAS USA’s railroad switch monitoring solution delivers real-time visibility, alarm management, and data analysis to support proactive maintenance and reduce operational costs. By enabling faster fault detection and response, the system helps improve railway safety, reliability, and maintenance efficiency.

Built on proven industrial automation technology, ICP DAS USA provides the reliable data collection and communication infrastructure needed for successful IoT and smart transportation applications.
