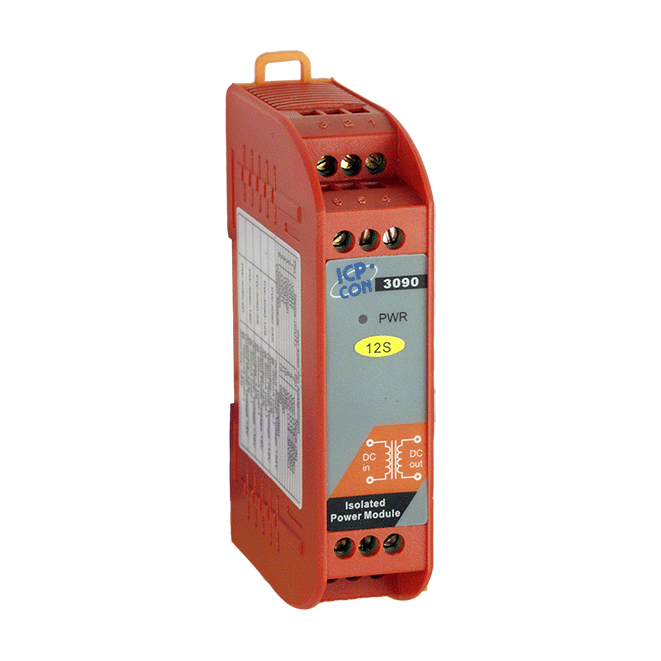

PW-3090-12S

$199.00
Isolated Power Module (12V)
Availability: IN STOCK | FASTEST DELIVERY : Friday, Nov 13 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Signal Conditioners
Review: Write your review
Resources:
  • User's ManualUser's Manual
  • HardwareHardware
  • CE CertificationCE Certification
  • FCC CertificationFCC Certification


    		•

    The PW-3090 series is an efficient (83%) DC-to-DC power module with 1000 Vdc isolated protection. It has non-regular DC input (18~36V) and stable DC output (5V, 12V, 24V, ±5V, ±15V). Using it, your devices can work with stable power source and against harmful effects in the operating environment.

    • 1000Vdc isolation
    • Flexible DIN-rail mounting
    • Isolated Power Signal Conditioning Module


    Internal I/O Structure

    Specifications

    • Input Voltage Range:18 ~ 36Vdc
    • Temperature Coefficient : ±0.03%/°C
    • Ripple & Noise: 100mVp-p max.
    • Line Regulation: ±0.2% max.
    • Load Regulation: ±0.2% max.
    • Short Circuit Protection
    • Efficiency: 83% Typical
    • Isolation Voltage: 1000Vdc
    • Isolation Resistance: 109 ohms min.
    • Switch Frequency: 200KHz
    • Operating Temperature: -25°C to 70°C
    • Storage Temperature range: -30°C to 85°C
    • Dimensions: 113mm x 70.5mm x 24.5mm
    • Weight: 110 grams
    • Applications:
      • Power isolation (DC-to-DC converter)
