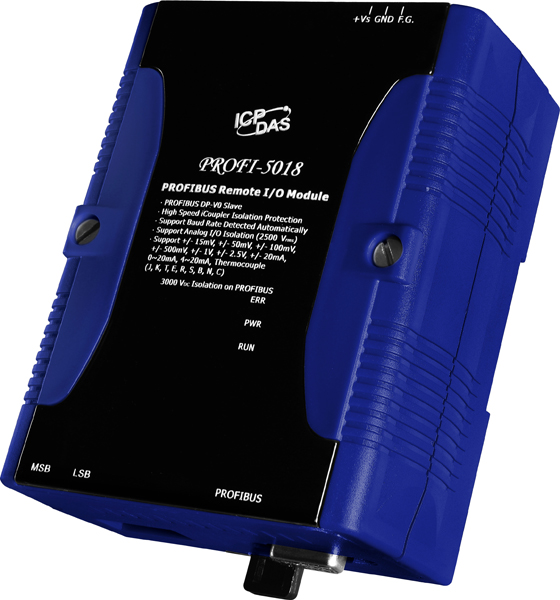

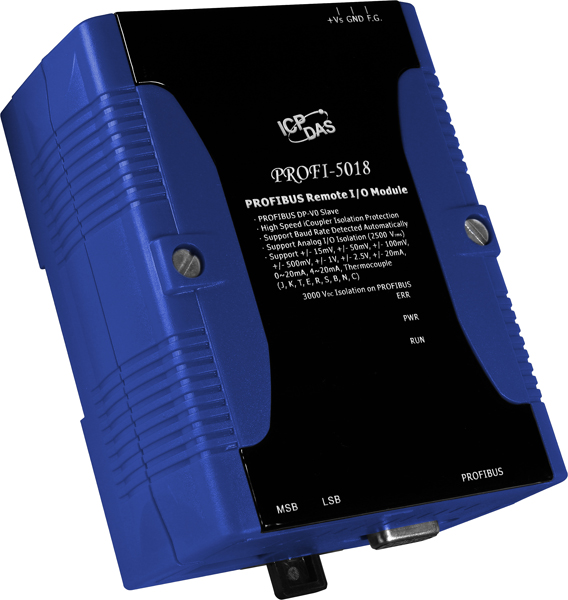

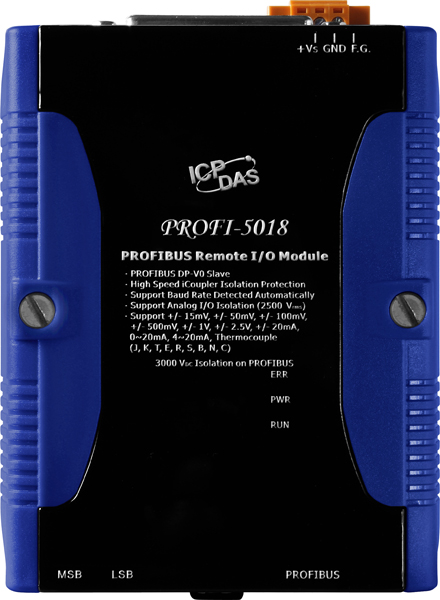

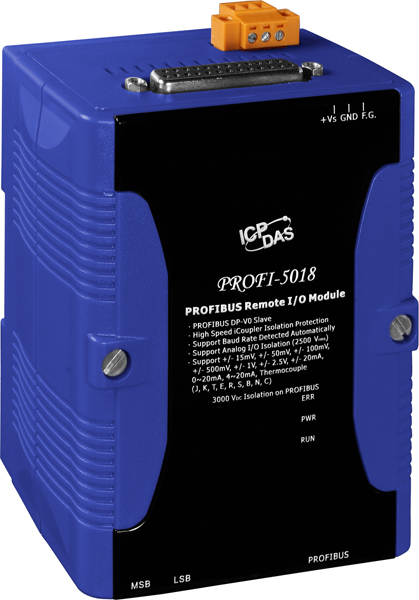

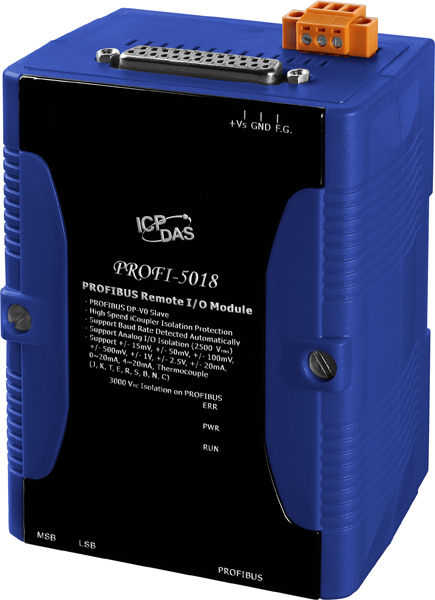

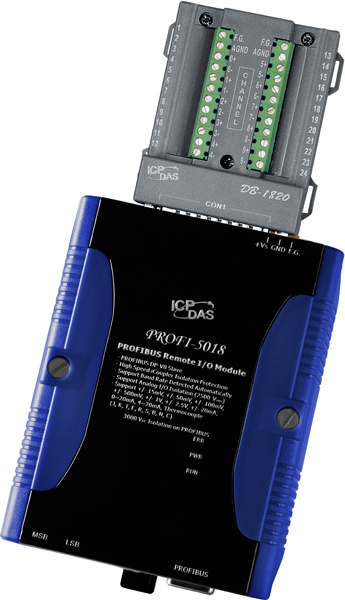

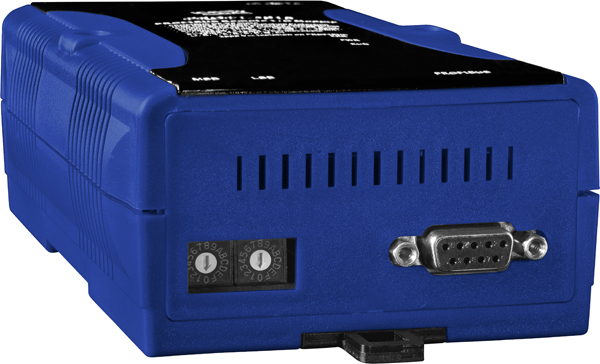

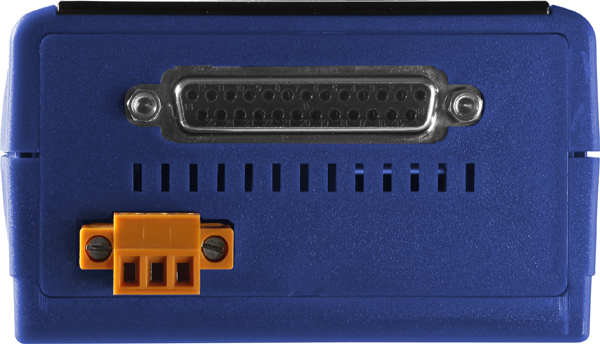

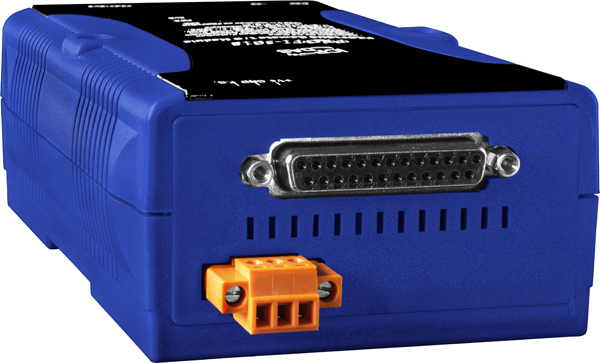

The PROFI-5018 is designed to support up to 10-channel Thermocouple, Current and Voltage input. The PROFI-5018 provides +/-4KV ESD protection contact for all terminals (include I/O Terminals and PROFIBUS connector). Users can easily establish a PROFIBUS DP network with other DP-Masters.
| Protocol & Hierarchy | DP-V0 Slave |
| Supports PROFIBUS Transmission Rate (kbps) | 9.6, 19.2, 45.45, 93.75, 187.5, 500, 1500, 3000, 6000, 12000 |
| Transmission Rate Setting | detected automatically |
| Address Setting | Address 0~126 set by rotary switches or SSA Telegram |
| Indicators | PWR LED, RUN LED, ERR LED |
| I/O modules Configuration | Configured by GSD file |
| Network Isolation Protection | High Speed iCoupler |
| 4KV ESD Protection | Contact for each terminal |
| Thermocouple Type | Temperature Range °C |
| TYPE J | -210 °C ~ +1200 °C |
| TYPE K | -270 °C ~ 1372 °C |
| TYPE T | -270 °C ~ 400 °C |
| TYPE E | -270 °C ~ 1000 °C |
| TYPE R | -50 °C ~ 1765 °C |
| TYPE S | -50 °C ~ 1765 °C |
| TYPE B | 0 °C ~ 1820 °C |
| TYPE N | -270 °C ~ 1300 °C |
| TYPE C | 0 °C ~ 2320 °C |
Hardware
ESD Protection
4 kV class B
PROFIBUS Interface
Controller
Siemens SPC3
Transceiver
ADI ADM2486
Connector
9-pin female D-Sub
Baud Rate (bps)
9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M
Transmission Distance (m)
Depend on baud rate (for example, max. 1200 m at 9.6 kbps )
Isolation
3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic
Protocol
DP-V0
LED
Round LED
PWR LED, RUN LED, ERR LED
POWER
Power supply
Unregulated +10 ~ +40 VDC
Protection
Reverse polarity protection, Over-voltage brown-out protection
Power Consumption
3.5 W
I/O
Analog Input
10 channel differential thermocouple input, Isolation Voltage:2500Vrms
Input Range
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-20mA, 0~20mA, 4~20mA (requires optional external 125 Ohms resistor), Thermocouple Type: J, K, T, E, R, S, B, N, C
Accuracy
+/- 0.1 of FSR
Mechanism
Installation
DIN-Rail
Dimensions
91 mm x 130 mm x 52 mm (W x L x H)
Environment
Operating Temp.
-25 ~ 75°C
Storage Temp.
-30 ~ 80°C
Humidity
10~90% RH,non-condens
