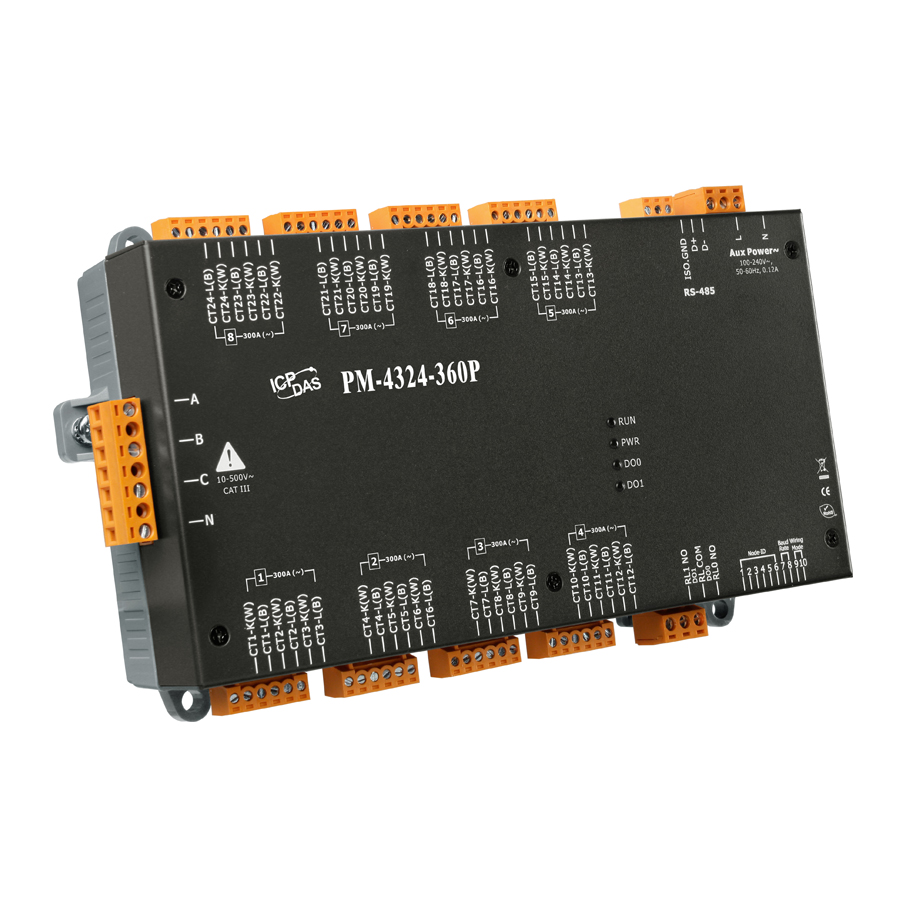

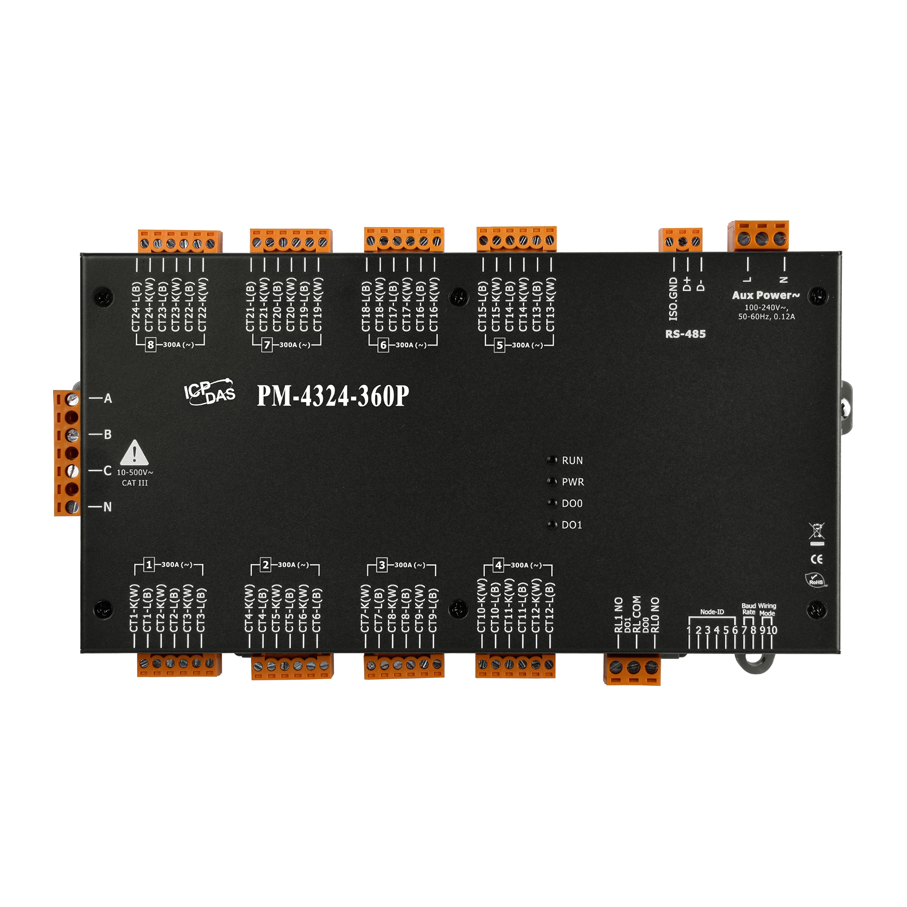

The PM-4324 Multi-Channel Power Meter up to 8 three phase circuits or 24 single phase circuits. The PM-4324 can measure up to 24 currents via external Current Transformers (CTs). This flexibility makes the PM-4324 perfect for multitenant facilities such as residential projects, office buildings and shopping malls. This compact instrument is designed to easily fit into existing panel boards or be flush mounted nearby, thus eliminating the need for expensive retrofit projects or for allocating extra space for the device.
| PM-4324P | ||
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT | |
| Input Voltage | 10 ~ 500 V | |
| Input Current | CTØ36 mm (300 A) | |
| Input Frequency | 50/60 Hz | |
| W Accuracy | Better than 0.5% (PF=1) | |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh),Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency | |
| Data Update Rate | 1 Second | |
| Communication | ||
| RS-485 | Protocol | Modbus RTU |
| Baud rate | 9600,19200 (default), 38400, 115200; DIP Switch Selectable | |
| Data format | N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2 | |
| Isolation | 3000 VDC | |
| Ethernet | Protocol | - |
| PoE | - | |
| CAN Bus | Protocol | - |
| PoE | - | |
| Alarm Output | ||
| Power Relay | Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63 Hz), 5 A @ 30 VDC | |
| Power | ||
| Input Range | +85 ~ +264 VAC | |
| Power Consumption | 6 W | |
| Mechanical | ||
| Casing | Plastic | |
| Dimensions (W x L x H) | 237 mm x 52 mm x 134 mm | |
| Module Installation | DIN-Rail Mounting; Wall mounting | |
| CT Installation | Clip-On | |
| Environment | ||
| Operating Temperature | -20 ~ +70 °C | |
| Storage Temperature | -25°C ~ +80°C (-13°F ~ 176°F) | |
| Ambient Relative Humidity | 10% ~ 90% RH, Non-condensing | |
