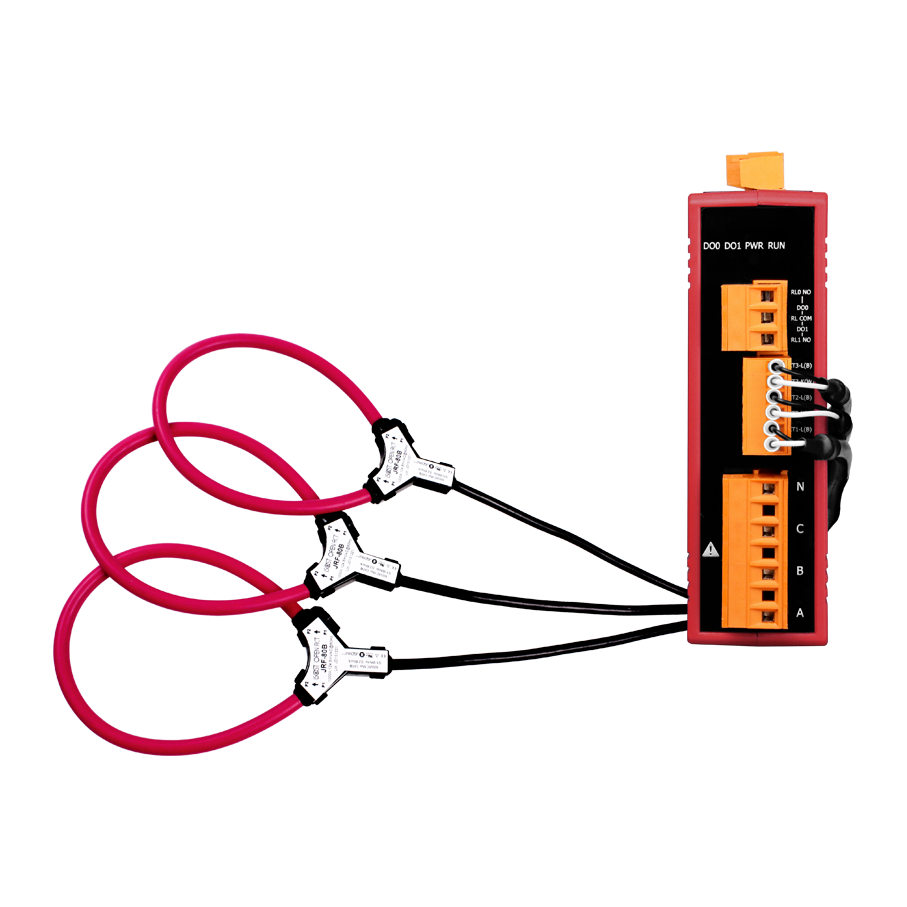

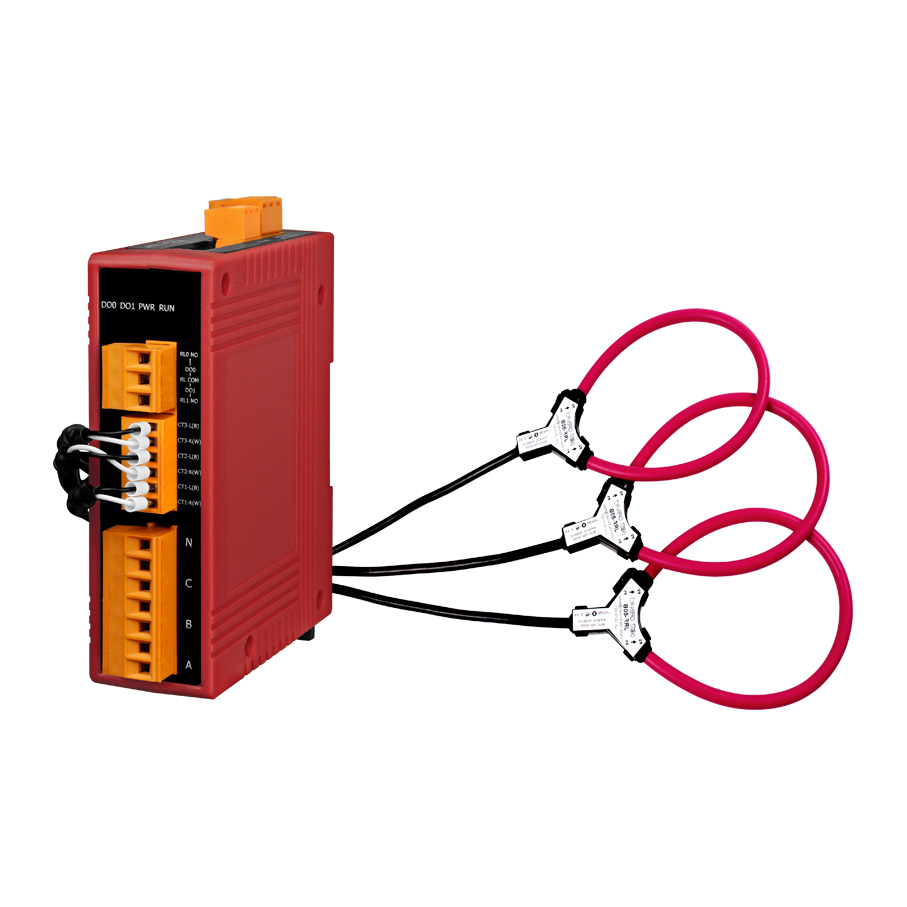

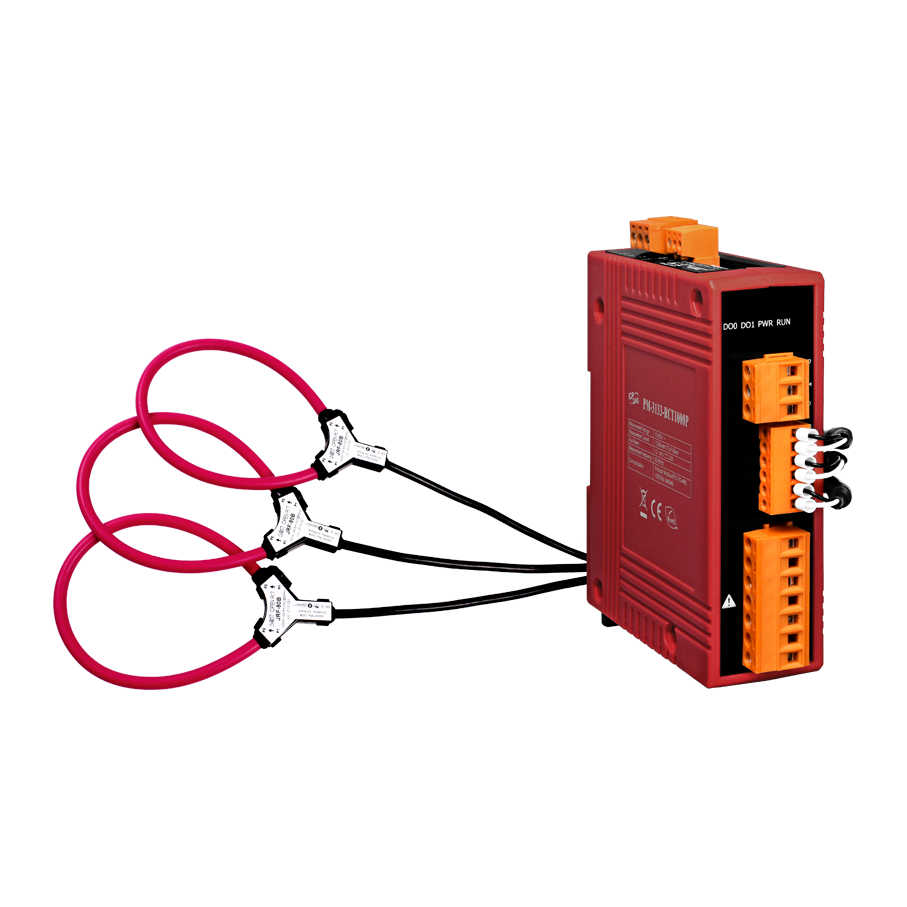

The PM-3133-RCT series are the most powerful, cost-effective, advanced Smart Power Meters in the market. PM-3133-RCT Smart Power Meters allows the users to access to real-time electric usage for three-phase power measurement. With its high accuracy (50A), this PM-3133-RCT series can be used to both low voltage primary side and medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipment in real time under operation. The PM-3133-RCT series monitors equipment with Rogowski Coil CT is "rope-style" Current Transformer, allowing "Easy Installation" features for large window size (55 ~ 105mm) and mechanical flexibility tight spaces.
PM-3133-RCT Smart Power Meters series operates over a wide range of input voltages 10 ~ 500 VAC, allowing universal compatibility. The PM-3133-RCT Smart Power Meters series also has 2 channels relay outputs, allowing it to be linked with sirens or lightings for alarm messages. It also supports Modbus RTU, CANopen protocols for easy integration.
AC Power Measurement
Wiring
3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT
Measurement Voltage
10 ~ 500 V
Measurement Current
CTØ55 mm (500 A), CTØ80 mm (1000 A), CTØ105 mm (2000 A)
Measurement Frequency
50/60 Hz
W Accuracy
Better than 1% (PF=1; Input Current >50 A)
Power Parameter Measurement
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency, THD
Data Update Rate
1 Second

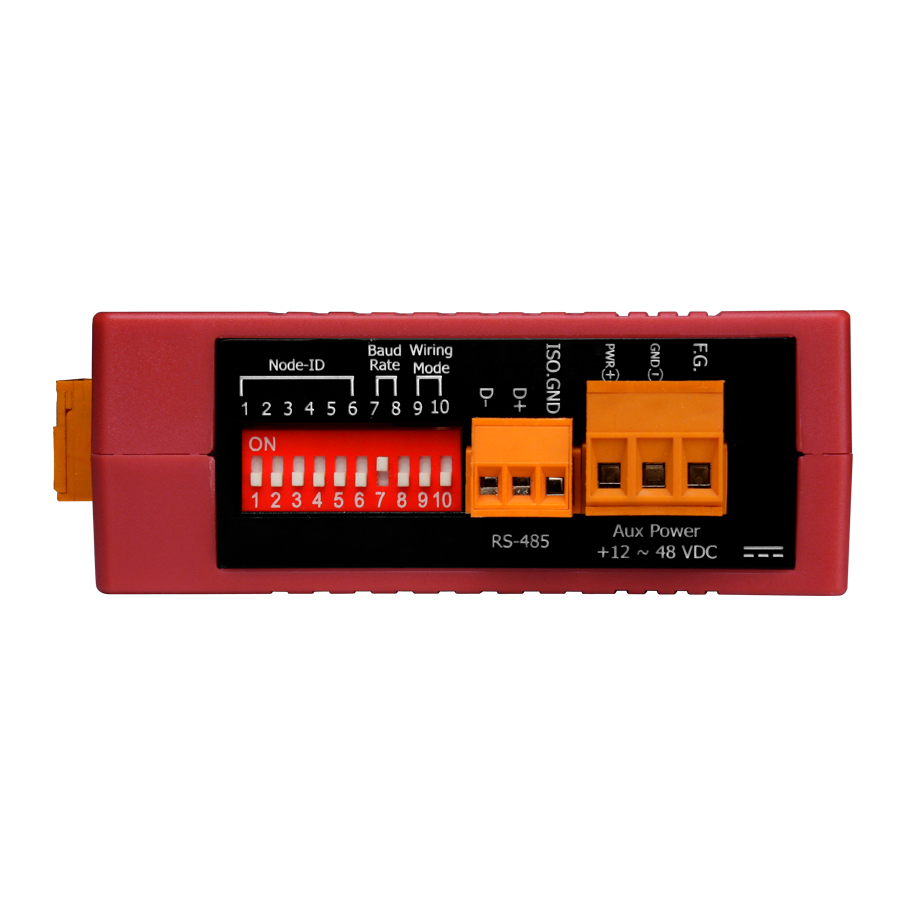

Communication
Interface
RS-485
Protocol
Modbus RTU
Baud rate
9600,19200 (default), 38400, 115200; DIP Switch Selectable
Data format
N,8,1 (default); N,8,2; E,8,1; E,8,2; O,8,1; O,8,2
Isolation
3000 VDC
Alarm Output
Power Relay
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC
Power
Input Range
+12 ~ 48 VDC
Power Consumption
2 W
Environment
Temperature
Operating Temperature: -20 ~ +70°C / Storage Temperature: -25 ~ +80°C
Ambient Relative Humidity
10% ~ 90% RH, Non-condensing
