ICP DAS offers the advanced and cost-effective PM-3133 series Smart Power Meters, designed for accurate real-time monitoring of three-phase power usage. With high measurement accuracy (less than 0.5%, PF=1), the PM-3133 series is suitable for both low-voltage primary and medium/high-voltage secondary applications, providing precise and dependable energy consumption data during operation.

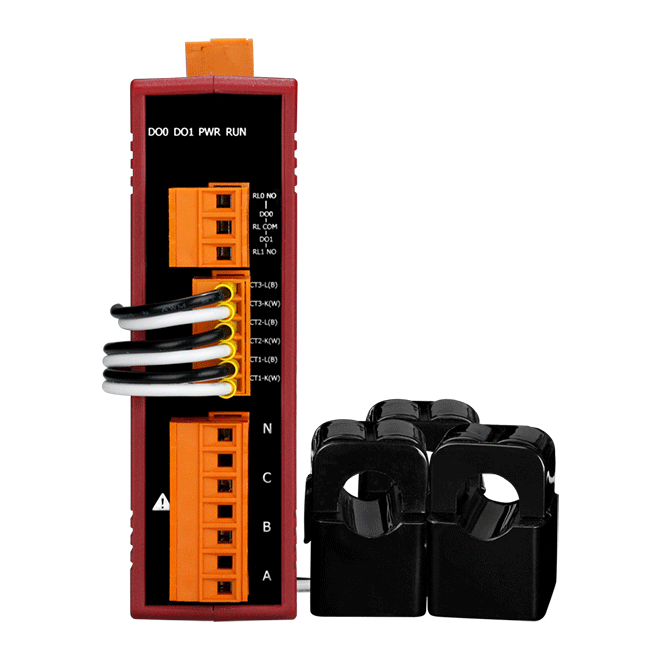

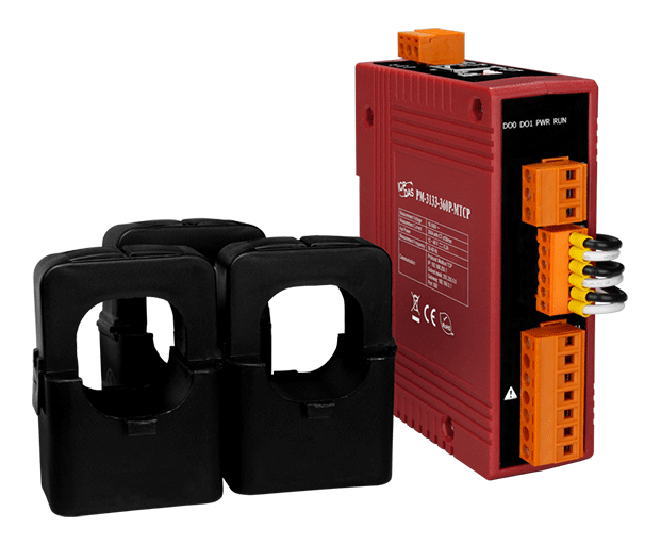

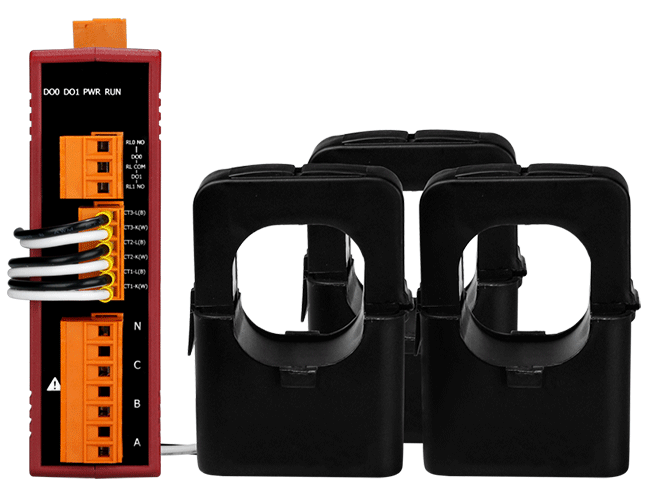

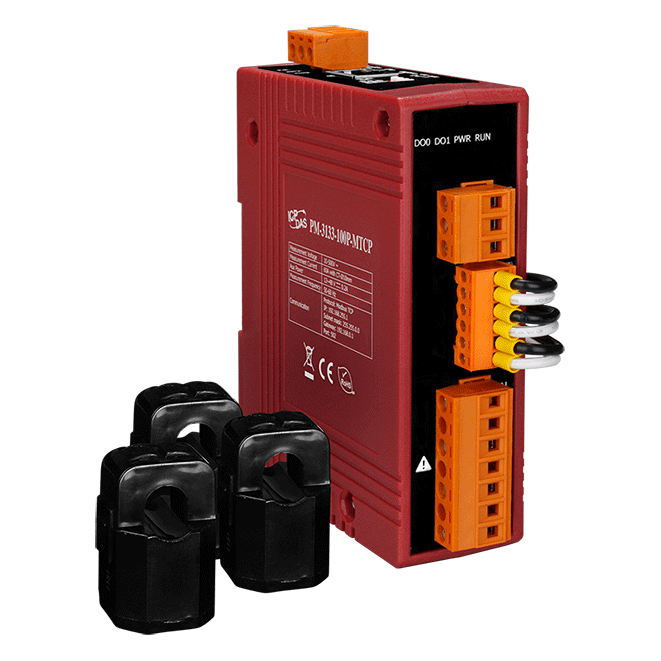

These compact power meters feature innovative wired clip-on current transformers (CTs) that support various types and input currents up to 400 A. They operate across a wide input voltage range of 10 to 500 VAC, ensuring global compatibility. Additionally, the PM-3133 meters include two relay output channels, allowing integration with devices such as sirens or lights for alarm notifications.
Applications
• Generator monitoring
• Switchgear distribution systems
• Energy Management
| AC Power Measurement | |
|---|---|
| Wiring | 3P4W-3CT, 3P3W-2CT, 3P3W-3CT, 1P2W-1CT, 1P3W-2CT |
| Loops | 3-phase: 1 1-phase: 3 @ 1P2W-1CT 1 @ 1P3W-2CT |
| Input Voltage | 10 ~ 500 V |
| Input Current | PM-3133-005P-MTCP: CT10 mm (0.05 A ~ 5 A) PM-3133-100P-MTCP: CT10 mm (0.05 A ~ 60 A) PM-3133-100-MTCP: CT10 mm (0.05 A ~ 60 A) PM-3133-160P-MTCP: CT16 mm (0.1 A ~ 100 A) PM-3133-160-MTCP: CT16 mm (0.1 A ~ 100 A) PM-3133-240P-MTCP: CT24 mm (0.15 A ~ 200 A) PM-3133-240-MTCP: CT24 mm (0.15 A ~ 200 A) PM-3133-360P-MTCP: CT36 mm (0.3 A ~ 300 A) PM-3133-400P-MTCP: CT36 mm (0.3 A ~ 400 A) |
| Input Frequency | 50/60 Hz |
| W Accuracy | Better than 0.5% (PF=1) |
| Power Parameter Measurement | True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF), Frequency |
| Data Update Rate | 1 Second |
| Relay Output | |
|---|---|
| Channels | 2 |
| Type | Power Relay |
| Contact Rating | Form A: 5 A @ 250 VAC 5 A @ 30 VDC |

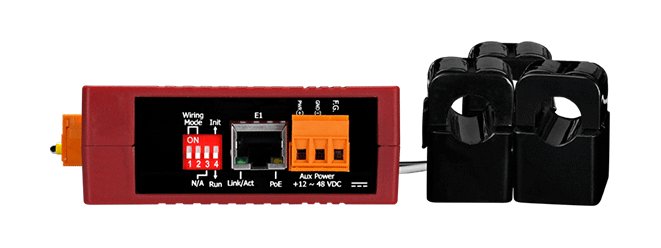

| Ethernet | |
|---|---|
| Ports | 1x RJ45, 10/100 Base-TX |
| PoE | Yes |
| Protocol | Modbus TCP |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC or PoE |
| Consumption | 2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 127 x 100 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -25 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
