PIO-DA16U

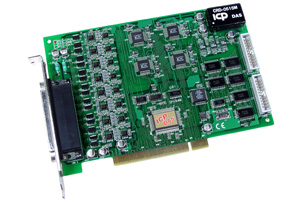

The PIO-DA16, PIO-DA8 and PIO-DA4 are multi-channel D/A boards for the PCI bus for PCs. The PIO-DA16/8/4 offers 16/8/4 channels of double-buffered analog output. The output range may be configured in different range: ±10V, ±5V, 0 ~ 10V and 0 ~ 5V voltage output or 4 ~ 20mA, 0 ~ 20mA current loop sinking. The innovative design improves several drawbacks of conventional D/A boards.

• Jumperless and without trim-pot.
• The calibration is performed under software control
  • eliminating manual trim-pot adjustments.
  • The calibration data is stored in EEPROM.
  • Each channel can be selected as voltage or current output.
  • High channel count output can be implemented in half size.
  • PCI bus
  • Channels: 16/8/4
  • 14-bit Analog Output
  • Unipolar or bipolar outputs available from each converter v Output type:
    (Unipolar or bipolar) and output range
  • ( 0 ~ 5V, ±5V, 0 ~ 10V, ±10V) can be software programmable
  • 4~20mA or 0~20mA current sink to ground for each converter
  • Two pacer timer interrupt source
  • Double-buffered D/A latches
  • Software calibration
  • 16 channels DI, 16 channels DO
  • SMD, short card.
  • One D-Sub connector, two 20-pin flat cable connectors
  • Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR
  • Automatically detected by Windows 95/98/NT
  • No base address or IRQ jumper needs to be set
