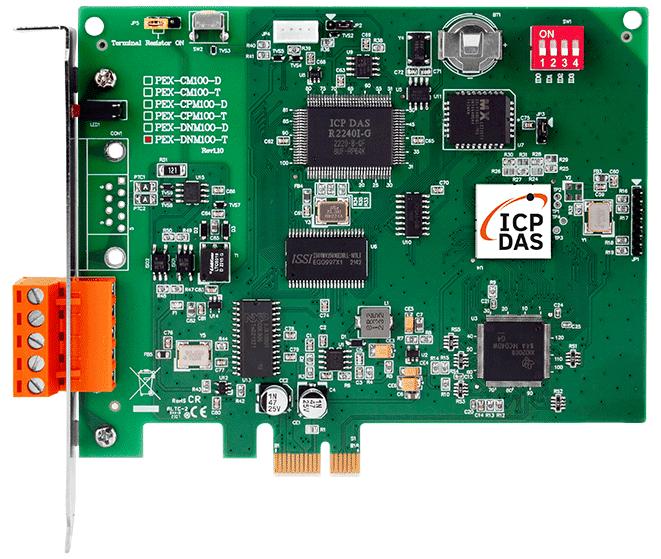

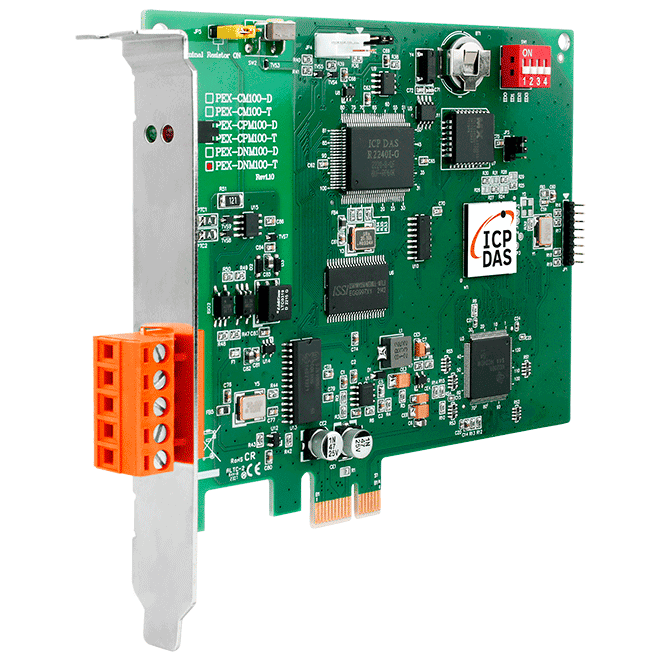

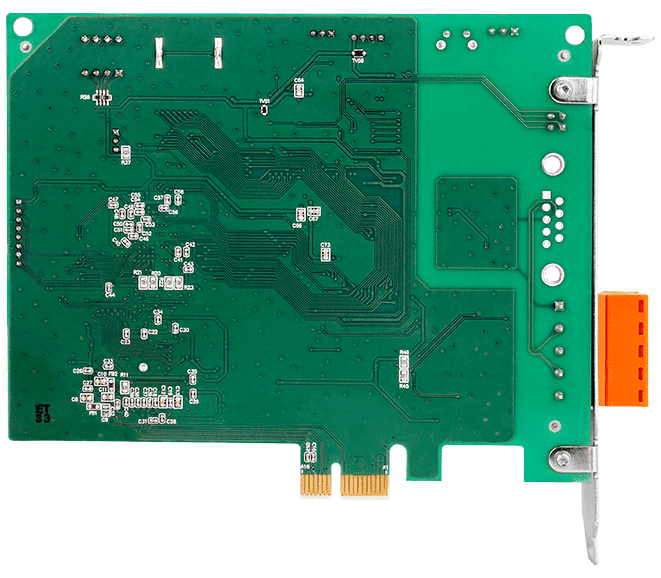

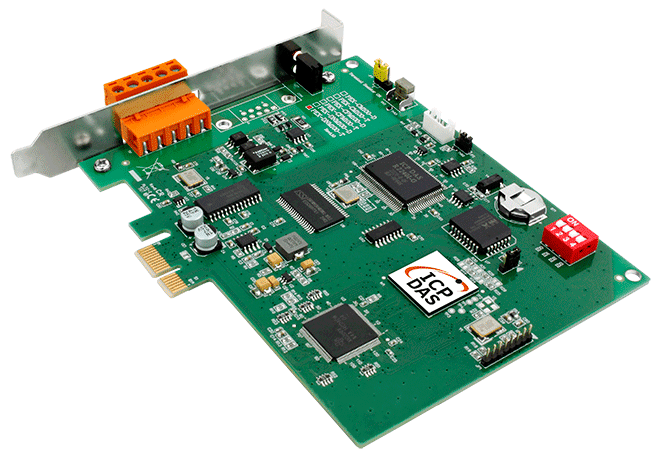

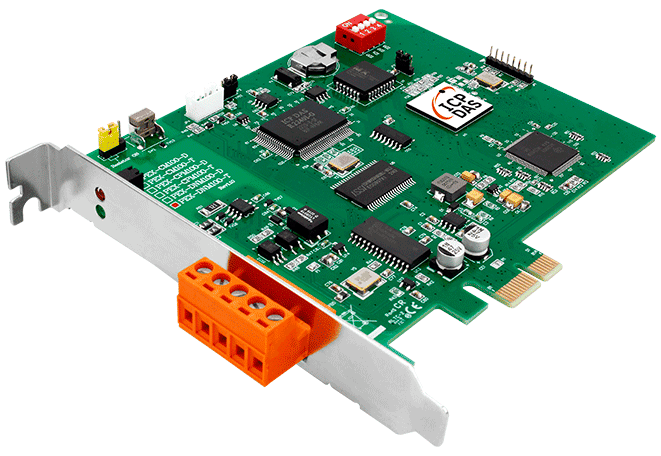

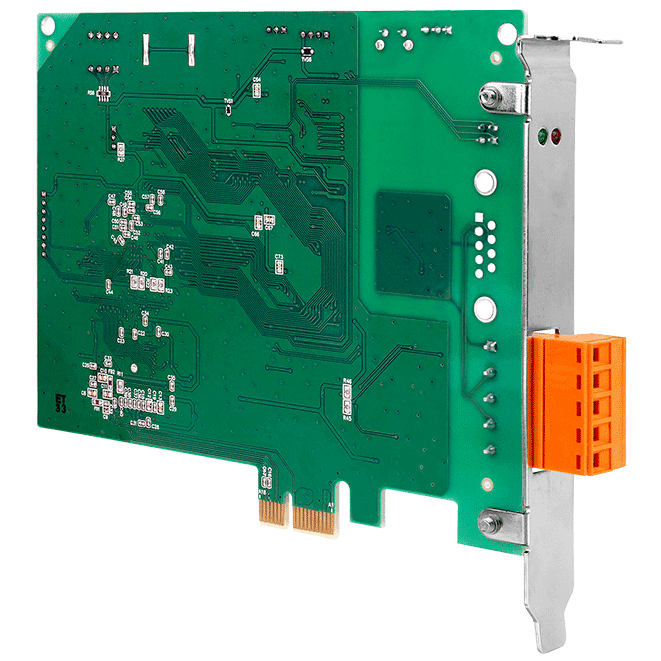

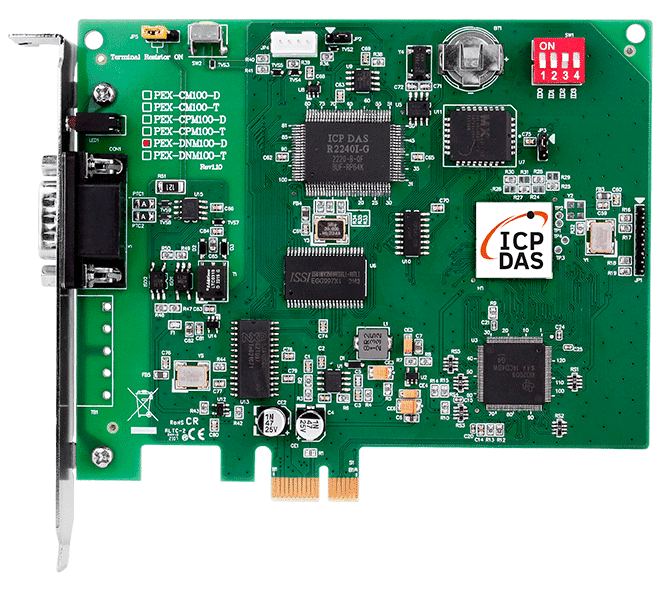

PEX-DNM100-T

Introduction

The PEX-DNM100 can represent an economic solution of DeviceNet application and be a DeviceNet master device on the DeviceNet network. It is a "Predefined Master-Slave connection Set". The PEX-DNM100 supports Group 2 only Server and UCMM functions to communication with slave devices. It has an independent CAN bus communication port and has the ability to cover a wide range of DeviceNet applications.

Besides, the PEX-DNM100 uses the CAN controller NXP SJA1000, which provide bus arbitration, error detection with auto correction and re-transmission function. It can be installed on almost any windows-based system, for example Windows system. It is popularly applied in the industrial automation, building automation, vehicle, marine, and embedded control network. In order to expand the DeviceNet functions of ICPDAS products, the PEX-DNM100 is developed for this purpose.

Features

• DeviceNet Version: Volume I & II, Release 2.0
• Programmable Master MAC ID and Baud Rate
• Baud Rate: 125 kbps, 250 kbps, 500 kbps
• Support Group 2 and UCMM connection
• I/O Operating Modes: Poll, Bit-Strobe, Change of State / Cyclic
• I/O Length: 512 Bytes max (Input/Output) per slave
• Slave Node : 63 nodes max
• Support Auto-Search slave device function
• Support on-line adding and removing devices
• Support Auto-detect Group 2 and UCMM device
• Auto-Reconnect when the connection is broken
