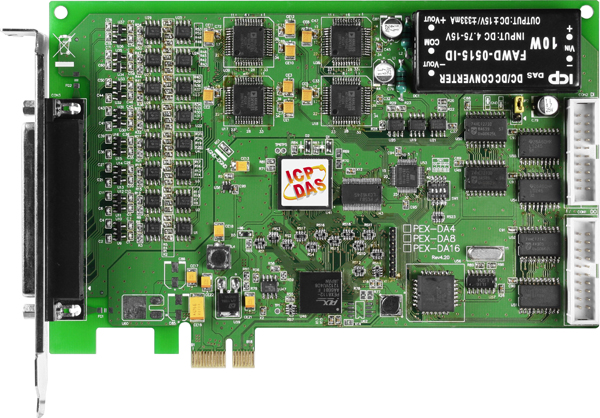

PEX-DA4

The PEX-DA4 voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. The PEX-DA4 features:

Accurate and easy-to-use calibration- ICP DAS provides the software calibration, allowing no need for jumpers and trim-pots. The calibration information can be saved in EEPROM for long-term use.

Individual channel configuration- This allows every channel to be individually configured as voltage output or current output.

Card ID- Users can set each card ID to recognize individually when more than two boards are used in a computer. These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32/64-bit Windows 8/7/Vista/XP. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users quickly and easily develop their own applications.

• Supports +5 V PCI bus for PIO-DA4/DA8/DA16
• 16/8/4 channels, 14-bit analog output
• Voltage output range: ±10 V
• Current output range: 0 ~ 20 mA (sink)
• Two pacer timer interrupt source
• Double-buffered D/A latch
• Software calibration
• 16-channel DI, 16-channel DO
• One D-Sub connector, two 20-pin flat cable connectors
• Connects directly to DB-16P, DB-16R, DB-24C, DB-24PR and DB-24POR

  [PISO-DA16U/DA8U/DA4U only]
• Built-in DC/DC converter with 3000 VDC isolation
• Supports both +5 V and +3.3 V PCI bus
• 2500 VDC bus-type and power isolation protection
• Digital input port can be set to pull-high or pull-low
• Card ID function

[PIO-DA16U/DA8U/DA4U, PEX-DA16/DA8/DA4 only]
• Supports both +5 V and +3.3 V PCI bus for PIO-DA16U/DA8U/DA4U
• Supports PCI Express x 1 for PEX-DA16/DA8/DA4
• Digital input port can be set to pull-high or pull-low
• Card ID function

Applications

• High speed data acquisition system.
• Process monitor and control.
• Vibration analysis.
• Digital pattern generator from digital I/O port.

Software

• DOS Lib and TC/BC/MSC sample program (with source codes)
• DLL and OCX SDK for Windows 95/98/NT/2K.
• DLL and OCX SDK for 32-bit and 64-bit Windows XP/2003/2008/7/8/10.
• VB/VC/Delphi/BCB/VB.NET/C#.NET/VC.NET/MATLAB sample programs with source codes.
• LabVIEW toolkit for Windows.
• Driver for Linux and DasyLab.
