PCI-P8R8

$389.00
PCI Board with 8 Channels of Isolated Digital Input and 8 Relay Outputs. Includes one CA-4002 D-Sub connector
Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: PCI Digital I/O Boards | PCI Digital I/O
Review: Write your review
Resources:

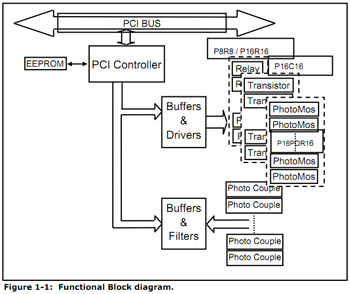

Block DiagramThe PCI-P8R8 provides 8 optically isolated inputs and 8 relay outputs. The PCI-P8R8 has two 37-pin D-Sub connectors. It can be installed in a 5V PCI slot and can support true "Plug & Play".

  • 8 Relay output channels
  • 8 Optical isolated digital input channels
  • DC signal input with filter or Without filter
  • AC Signal input with filter
  • Software:
    • Toolkit for DOS
    • Toolkit for Windows 95/98
    • Toolkit for Windows NT
    • Toolkit for Windows 2000/XP
    • LabVIEW toolkit for Windows
    • Toolkit for OCX 95/98
    • Toolkit for OCX NT
    • Toolkit for OCX 2000/XP
    • Driver for LINUX
    • Driver for DasyLab

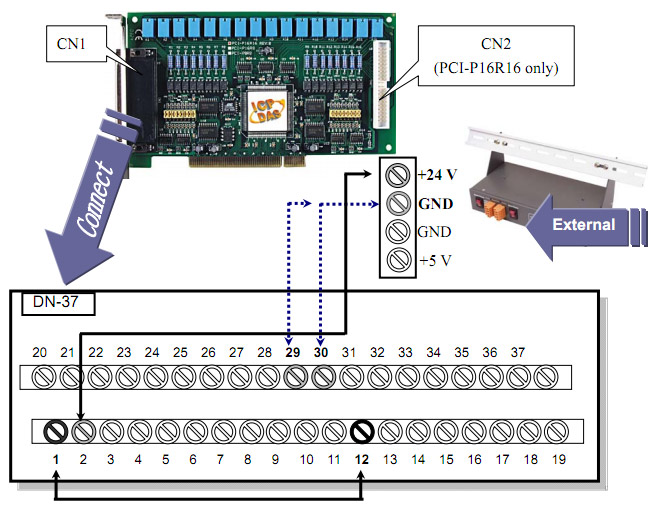

p8r8

Specifications

  • Relay Outputs:
    • Contact Rating : 0.5A/120Vac,DC/1A 30Vdc
    • Contact arrangement : Output channel 0 -3 are form C
    • Output channel 4-7 are Form A
    • Operating time : 5 mSec
    • Release time : 10 mSec
    • Expected life > 100,000 times (at 30V ,1A)
  • Optical Isolated Digital Input:
    • Type : None- polarized Optical Isolation (PC-814)
    • Input voltage : AC/DC 5-24V or Vac (50- 1khz)
    • Operating Temperature: 0 to 60 deg/C
    • Input impedance : 1.2 Kohm
    • Response time : 20u Sec (Without filter) / 22m Sec ( With filter)
    • Isolated : 500v channel-channel / channel - Ground
  • General Environment:
    • Operation Temperature : 0° to 50°C
    • Storage Temperature : -20°C to 70°C
    • Humidity : 0% to 90% none-condensing
    • Dimensions : 180mm x 105mm
