PCI-M512 has been replaced by PCI-M512U.

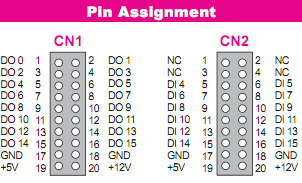

PCI-M512U provides 512K bytes memory, 12 digital input channels, and 16 output channels. PCI-M512U consists of one 12-bit input port and one 16-bit output port. DB-16P can be used to connect the input ports (CN2) for isolation purposes, or use DB-16R to interface to the output ports (CN1) for relay control. PCI-M512U PCI card supports both 5V and 3.3V. PCI-M512U (Universal PCI version) is fully compatible with the PCI-M512 (PCI version).
Users can use the DB-16P to connect the input ports (CN2) for isolation purpose, or use DB-16R to interface to the output ports (CN1) for relay control. The PCI-M512U equips two Li-batteries to maintain content in the event of PC power loss. The two Li-batteries can continue supplying power to 512KB SRAM to retain the important data for 10 years; and the two-battery design is safe to maintain the data when replacing new batteries.
The PCI-M512U also provides 4 LED indicators to display the battery states. It is easy to know the status of the two Li-batteries is normal, low voltage or fault by the 4 LED indicators. The PCI-M512U is an ideal solution for system reliability.
| Digital Input | |
| Channels | 12 |
| Compatibility | 5 V/TTL |
| Input Voltage | Logic 0: 0.8 V max. Logic 1: 2.0 V min. |
| Response Speed | 1.4 MHz(Typical) |
| Digital Output | |
| Channels | 16 |
| Compatibility | 5 V/TTL |
| Output Voltage | Logic 0: 0.4 V max. Logic 1: 2.4 V min. |
| Output Capability | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.4 MHz(Typical) |
| Special | |
| SRAM Size | 512 KB |
| Li-Battery | BT1 & BT2 |
| Battery Status bits | BT1 Low, BT1 Bad, BT2 Low, BT2 Bad(low voltage=2.3 V, bad voltage=2.1 V) |
| LED Indicators | BT1 Low (Green), BT1 Bad (Red) BT2 Low (Green), BT2 Bad (Red) |
| General | |
| Bus Type | 3.3 V / 5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 16-bit(DI/DO) ,32-bit(Memory) |
| I/O Connector | Male 20-bit ribbon x 2 |
| Dimensions (L x W) | 140 mm x 90 mm |
| Power Consumption | 420 mA @ +5 V |
| Accuracy | 0.01 % of FSR +/- 1 LSB |
| Operating Temperature | -20 ~ 60 °C |
| Storage Temperature | -40 ~ 85 °C |
| Humidity | 0 ~ 90% RH, non-condensing |
