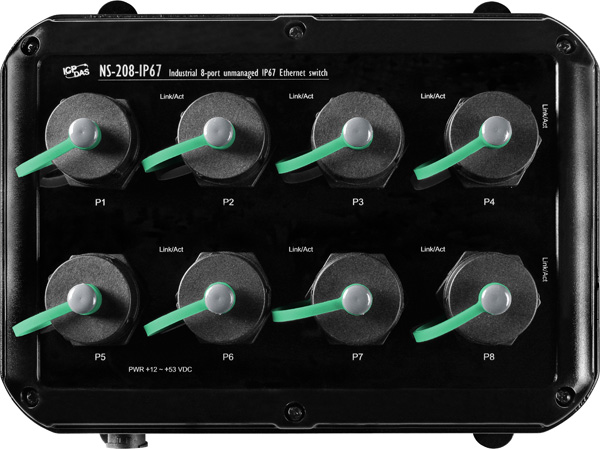

The NS-208-IP67 is designed for industrial applications in harsh environments. The rugged RJ-45 ensures tight, robust connections, and guarantees reliable operation, even for applications that are subject to high vibration and shock. It has 8 fast Ethernet with 8 IEEE 802.3af compliant ports.
The Ethernet switch support IEEE 802.3/802.3u/802/3x with 10/100M, full/half-duplex, MDI/MDI-X auto-sensing, and provide an economical solution for your industrial Ethernet network.
| Technology | |
| Standards | IEEE 802.3, 802.3u, 802.3x, 10/100 Base-T(X) auto negotiation speed, F/H duplex mode, and auto MDI/MDI-X connection |
| Processing Type | Store & forward; wire speed switching |
| MAC Address | 1024 |
| Memory Bandwidth | 2 Gbps |
| Frame Buffer Memory | 512 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Interface | |
| LED Indicators | PWR, Link/Act |
| Ethernet Isolation | 1500 Vrms 1 minute |
| Connection | Rugged RJ-45 |
| Power Input | |
| Input Voltage Range | +12 ~ +53 VDC |
| Power consumption | 0.12 A @ 24 VDC |
| Protection | Power reverse polarity protection |
| Connection | IP67 PWR Plug |
| Mechanical | |
| Case | Plastic |
| Flammability | UL 94V-0 materials |
| Environmental Rating | IP67 for Operating Temperature -10°C~ +60°C (+14°F ~ +140°F) |
| IP66 for Operating Temperature -40°C~ +80°C (-40°F ~ +176°F) | |
| Dimensions (W x L x H) | 85mm x 126mm x 75.5mm (W x H x D) |
| Installation | Wall Mounting |
| Environmental | |
| Operating Temperature | |
-10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67) |
|
| Storage Temperature | -10°C ~ +60 °C (+14°F ~ +140°F) (Protection rating IP67) |
| Ambient Relative Humidity | 100% RH for Operating Temperature -10°C ~ +60°C (+14°F ~ +140°F) 10% ~ 90% RH, non-condensing for Operating Temperture -40°C ~ +75°C (-40°F ~ +167°F) |
