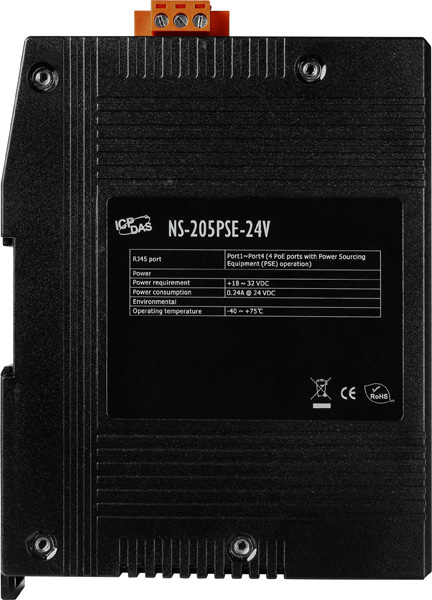

Main Product Image

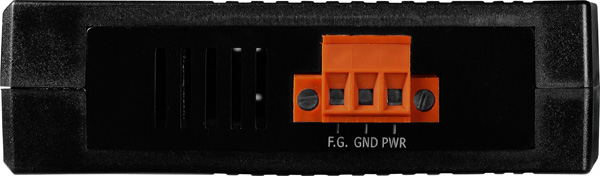

Main Product Image

NS-205PSE-24V

$509.00
5-Port 10/100 Mbps Power Over Ethernet PoE (PSE) Ethernet Switch with 24 VDC Input. Supports operating temperatures from -40 ~ +75°C (-40F ~ 167F). Replacement product for NSM-205PSE-12V and NSM-205PSE-12V-4W.
Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: Switches and Converters with Plastic Cases | Industrial Unmanaged Ethernet Switches
Review: Write your review
Resources:
Application Image NS-205PSE-24V 5 port PoE Ethernet Switches

The NS-205PSE-24 is a 5-port unmanaged PoE (Power-over-Ethernet) Industrial Ethernet switch. It supports 4 PoE ports which are classified as power source equipments (PSE). The NS-205PSE-24V enables centralized power supply and provides up to 15.4 watts of power per PSE port. The NS-205PSE-24 is designed with 24 VDC to 48 VDC boost for PoE applications where 48 VDC power supply is not available.

  • Automatic MDI/MDI-X crossover for plug-and-play
  • Each port supports both 10/100 Mbps speed auto negotiation
  • Store-and-forward architecture
  • Full duplex IEEE 802.3x and half duplex backpressure fl ow control
  • 4 PoE ports with Power Sourcing Equipment (PSE) operation
  • Auto-detection of PD (powered devices) and automatic power management
  • Over-temperature, over-current and over/under-voltage detection
  • Supports operating temperatures from -40 °C ~ +75 °C
  • Power Inputs +18 VDC ~ +32 VDC (NS-205PSE-24V/NSM-205PSE-24V)
  • 3.2 Gbps high performance memory bandwidth
  • IEEE 802.3af compliant PoE ports
  • Slim packaging fits on your DIN-Rail Mounting

Specifications

LED Indicators
StatusPower, Link/Act, 10/100M, Power Device is detected
Ethernet
Ports5 x RJ-45, 10/100Base-TX
StandardsIEEE 802.3, 802.3u, 802.3x ,802.3af (Power over Ethernet)
Processing TypeStore & forward
MAC Table2K
Frame Buffer Memory1Mbit
Flow ControlIEEE 802.3x flow control, back pressure flow control
Isolation1500 Vrms 1 minute
PoE Technology
PoE Compliance100% IEEE 802.3af compliant
PoE PowerUp to 15.4 watts per channel
PoE Pin AssignmentsV+ (Pin 1, 2), V- (Pin 3, 6)
PoE Voltage+48 VDC
Power
Reverse Polarity ProtectionYes
Input Range+12 VDC ~ +32 VDC
Consumption0.24 A @ 24 VDC without PD loading
3.2 A @ 24 VDC with PD full loading
Mechanical
CasingPlastic
Dimensions (mm)31 x 157 x 113 (W x L x H)
InstallationDIN-rail mounting
Environment
Operating Temperature-40 °C ~ +75 °C
Storage Temperature-40 °C ~ +85 °C
Humidity10% ~ 90% RH, non-condensing
