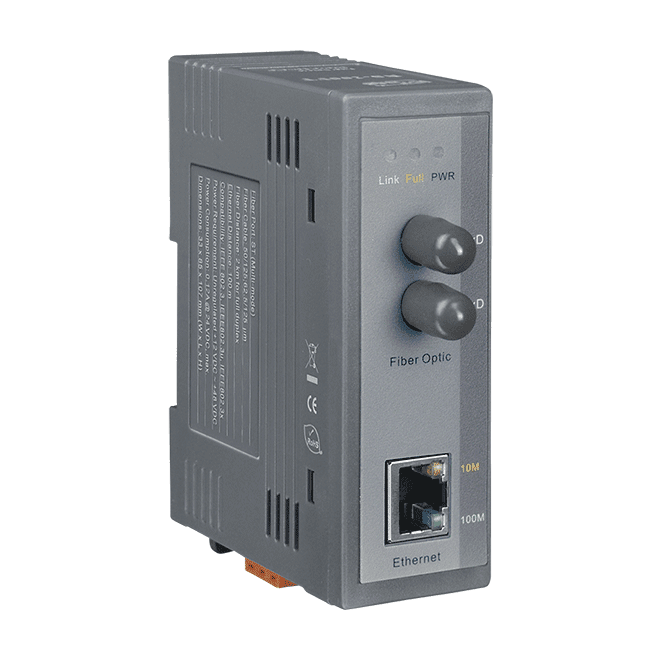

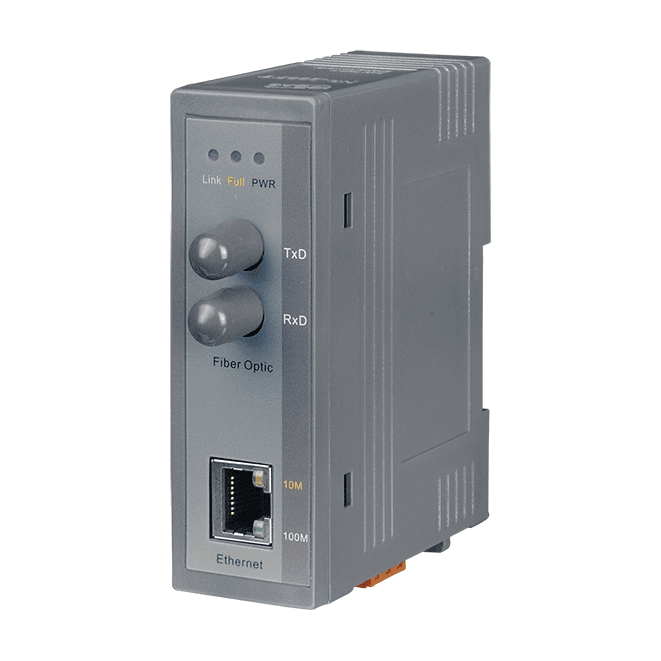

The NS-200AFT-T is a Ethernet (10/100 Base-TX) to Media (100 Base-FX) converter. The Ethernet supports 10/100M auto negotiation feature and auto MDI/MDI-X function. NS-200AFT-T can work normally from -30 ~ 75°C and accepts a wide voltage range from +12 ~ 48 VDC.
• Automatic MDI/MDI-X crossover for plug-and-play
• Supports both 10/100 Mbps speed auto negotiation
• Store-and-forward architecture
• Reverse Polarity Protection
• Supports operating temperatures from -30 °C ~ +75 °C
• Multi-mode, ST Connector Fiber supports
• Slim packaging fits on your DIN-Rail

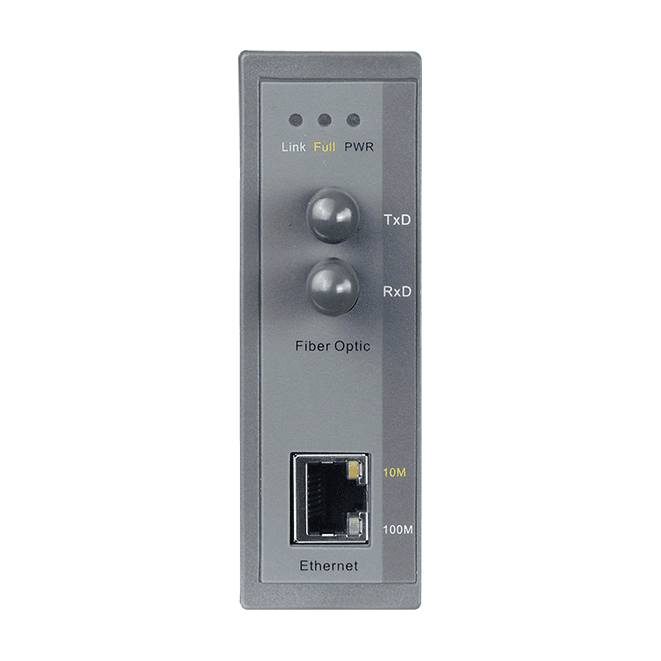

| LED Indicators | |
|---|---|
| Status | PWR, 10M, 100M, Link/Act, Full duplex/Half duplex(Fiber Port) |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100Base-TX |
| Standards | IEEE 802.3, 802.3u, 802.3x |
| Processing Type | Store & forward, wire speed switching |
| MAC Table | 1024 |
| Memory Bandwidth | 1.4 Gbps |
| Frame Buffer Memory | 256 Kbit |
| Flow Control | IEEE 802.3x flow control, back pressure flow control |
| Isolation | 1500 Vrms 1 minute |
| Fiber | |
|---|---|
| Ports | 1 x 100 Base-FX, ST connector |
| Mode | Multi-Mode |
| Fiber Cable | 50/125, 62.5/125 or 100/140 m |
| Distance | 2 km, (62.5/125 m recommended) for full duplex |
| Wavelength | 1300 or 1310nm |
| TX Output | -20 dBm Min. -14 dBm Max. |
| RX Sensitivity | -32 dBm |
| RX Overload | -8 dBm |
| Budget | 12 dBm |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |

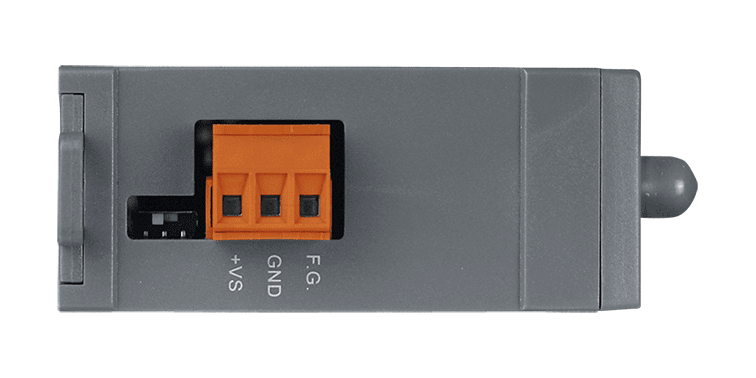

| Input Range | +12 VDC ~ +48 VDC (Non-isolation) |
| Consumption | 0.12 A @ 24 VDC |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 33 x 107 x 78 (W x L x H) |

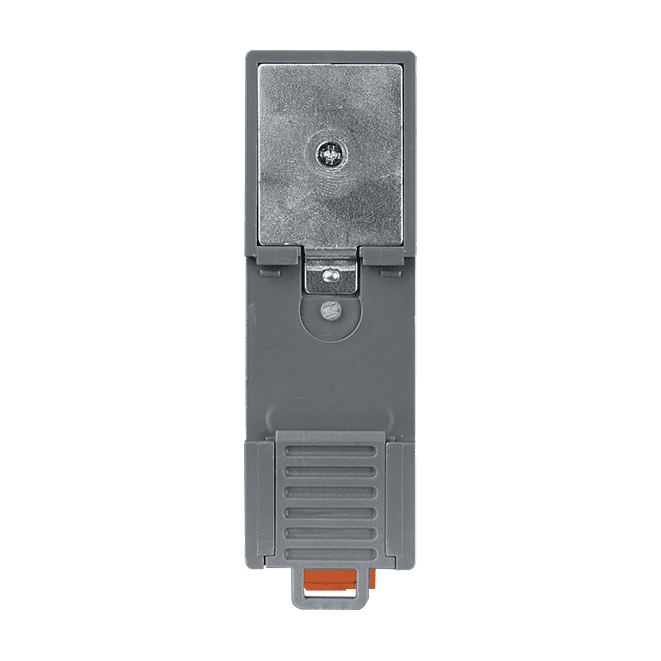

| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -30 °C ~ +75 °C |
| Storage Temperature | -30 °C ~ +85 °C |
| Humidity | 10% ~ 90% RH, non-condensing |
