The MSM-6226G has officially been phased out and will no longer be available. the suggested replacement is NSM-216

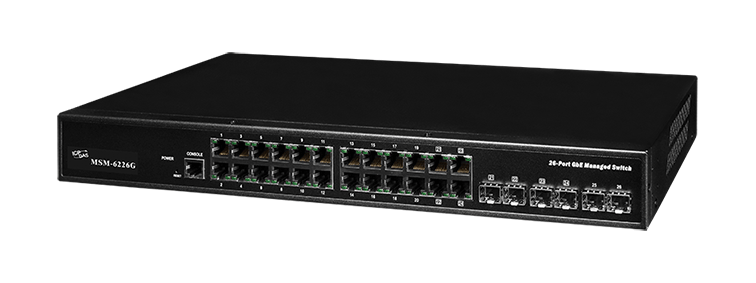

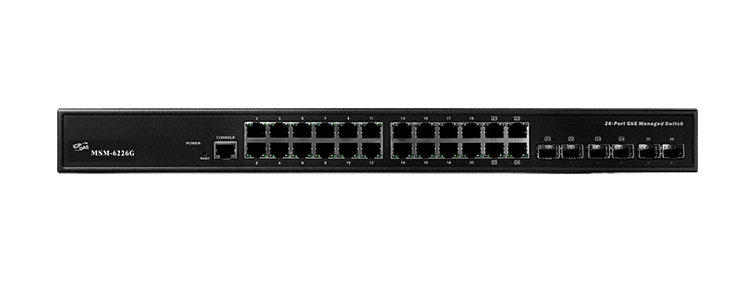

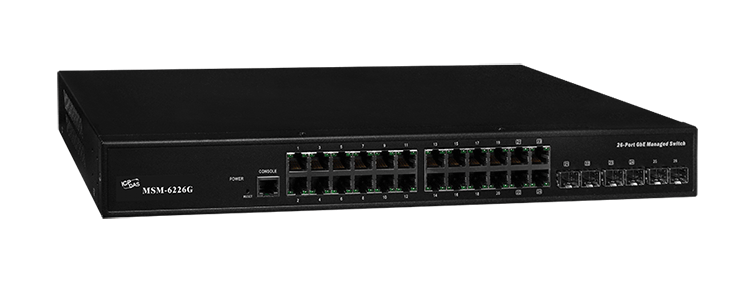

MSM-6226G is a L2 Managed Switch that meets all IEEE 802.3ab/u/x/z Gigabit, Gigabit Ethernet and Ethernet specifications. It provides 20 gigabit Ethernet ports (10/100/1000 Mbps TP), 4 combo TP/SFP ports and 2 SFP ports.
The switch can be managed through RS-232 serial port via direct connection, or through Ethernet port using Telnet or Web-Based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port activity in a friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications. In addition, the switch features comprehensive and useful function such as DHCP Option 82, QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON and IGMPv3 Snooping capability via the intelligent software. It is suitable for both Metro-LAN and office application.
The switch also supports the power saving to reduce the power consumption with Power Management technique. It could efficiently saving the switch power by auto detect the client idle and cable length.
The MSM-6226G has officially been phased out and will no longer be available. the suggested replacement is NSM-216
| EMS Protection | |
| EFT (IEC 61000-4-4) | Yes |
| ESD (IEC 61000-4-2) | Yes |
| Surge (IEC 61000-4-5) | Yes |
| LED Indicators | |
| Status | POWER, TP Port LED , SFP Port LED |
| Ethernet | |
| Ports | 20 x RJ-45, 10/100/1000Base-TX |
| Standards | Port Mirroring helps supervisor monitoring network IEEE 802.1Q tag-based VLAN for performance IEEE 802.1X Access Control improve network security IEEE 802.1D Compatible, IEEE802.1w Rapid Spanning Tree & IEEE802.1s Multiple Spanning Tree IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3 Unknown Unicast/Broadcast/Multicast storm control IP-MAC-Port binding for LAN security QCL Based on Application traffic for QoS and rate limitation management Supports IGMPv3 snooping and IGMP Proxy Supports DHCP snooping (DHCP option 82) ACL Based on Ethernet Type/ARP/IPv4 for packets permit or deny, rate limitation and port copy Supports "power saving" for Green Ethernet requirement Supports LLDP (Link Layer Discovery Protocol) provides a standards-based method for enabling switches to advertise themselves. |
| Processing Type | Store & forward |
| MAC Addresses | 8 K |
| Memory Bandwidth | 52 Gbps |
| Frame Buffer Memory | 4 Mbits |
| Flow Control | Backpressure flow control for half duplex 802.3x flow control for full duplex |
| Protocol | VLAN, QoS, Port Trunk, SMTP, TELNET, SNMP, IGMP, IEEE802.1X, LLDP |
| Redundant Strategy | STP, RSTP |
| Isolation | 2 K VDC Isolation |
| Fiber | |
| Ports | 4 x combo 100/1000 BAST-T/SFP slots 2 x 100/1000 Mbps SFP Fiber Module slots |
| COM Ports | |
| Ports | 1 x RS-232 |
| Power | |
| Input Range | +100 VAC ~ +240 VAC |
| Consumption | 16 W |
| Mechanical | |
| Casing | Metal |
| Dimensions (mm) | 482 x 44 x 179 (W x L x H) |
| Installation | Wall mounting, 19'' rackmountable, brackets included |
| Ingress Protection Rating | IP20 |
| Environmental | |
| Operating Temperature | 0 ~ +50°C |
| Storage Temperature | -20°C ~ +70°C |
| Humidity | 10 ~ 90% RH, non-condensing |
