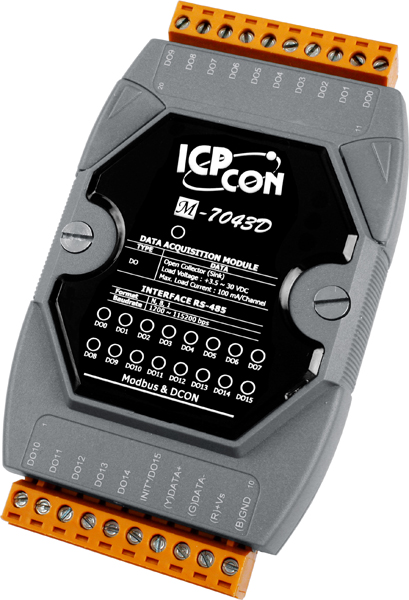

The M-7043D offers 16 digital output channels, each of which are non-isolated and support sink-type output using an open collector. It also comes with an LED display for indication of the module status. There are also options to enable both power-on and safe values. They come with configurable power-on value settings and configurable safe value settings. They can be used with our free EZ Data Logger software for data logging and monitoring applications.
| Digital Output | |
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink |
| Load Voltage | +3.5 ~ 30 VDC |
| Max. Load Current | 100 mA/Channel |
| Power-on Value | Yes |
| Safe Value | Yes |
| Communication | |
| Interface | RS-485 |
| Bias Resistor | No (Usually supplied by the RS-485 Master. Alternatively, add a tM-SG4 or SG-785.) |
| Format | (N, 8, 1) (N, 8, 2) (E, 8, 1) (O, 8, 1) |
| Baud Rate | 1200 to 115200 bps |
| Protocol | Modbus RTU, DCON |
| Dual Watchdog | Yes, Module (1.6 Seconds), Communication (Programmable) |
| LED Indicator / Display | |
| System LED Indicator | Yes, 1 LED as Power/Communication Indicator |
| I/O LED Indicator | Yes, 16 LED as Digital Output Indicator |
| Power | |
| Reverse Polarity Protection | Yes |
| Input Voltage Range | 10~30VDC |
| Power Consumption | 0.4W |
| Mechanical | |
| Dimensions (L x W x H) | 123 mm x 72 mm x 35 mm |
| Storage Temperature | -40 to 85°C |
| Environment | |
| Operating Temperature | -25 to 75°C |
| Storage Temperature | -40 to 85°C |
| Humidity | 5 to 95% RH, non-condensing |
