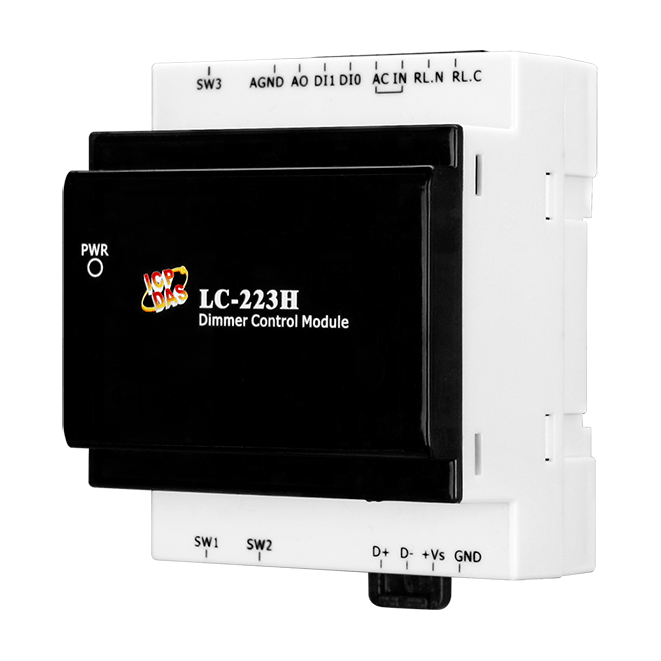

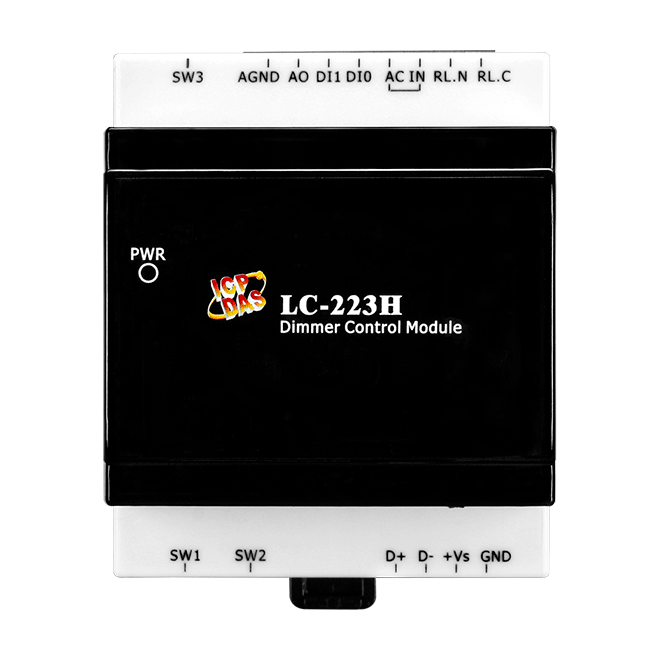

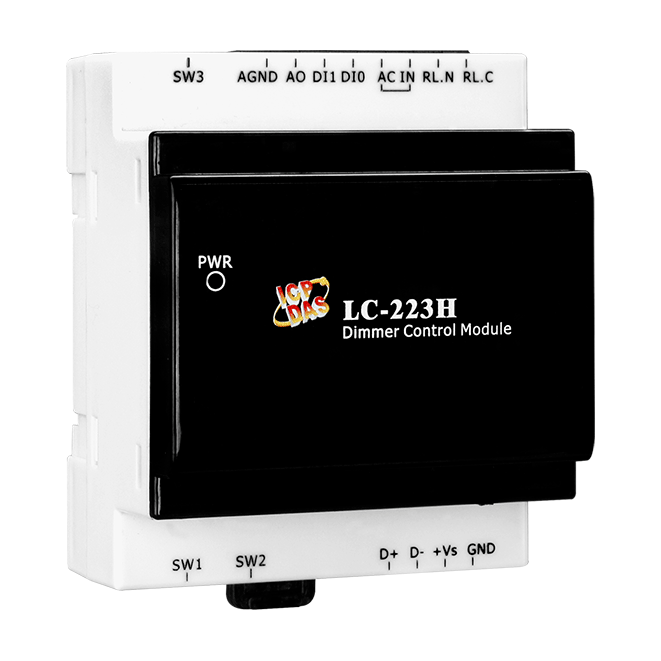

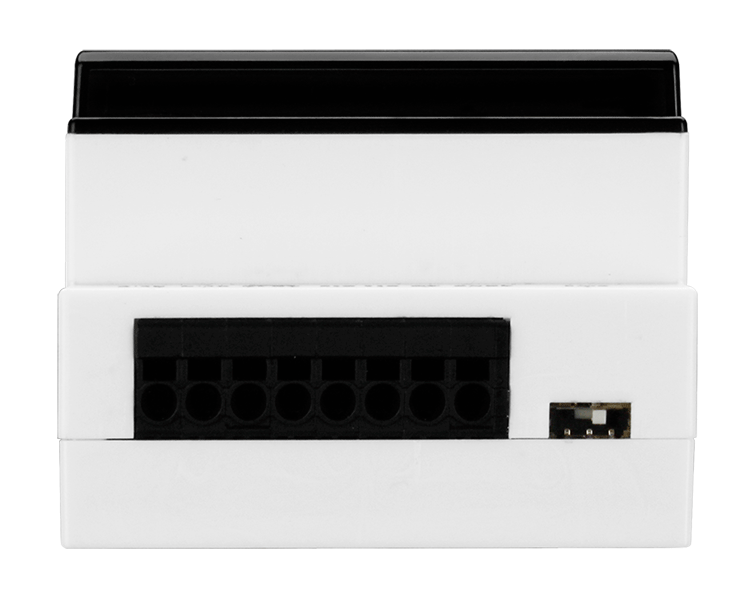

LC-223H/DIN

• Isolated Analog Output (0 to 20 mA, 0 to 10 V, 1 to 10 V) For Dimming Control
• Relay Operation Current: 16 A (Res. Load)
• Support Lighting Module (Max.):
• Incandescent Lamp: 40W/ 220VAC * 8 Sets
• LED(Electronic ballast): 40W/ 220VAC * 10 Sets
• Provide Power Relay Output to turn ON/OFF the Dimming Ballast
• Isolated Analog Output(0 to 20 mA, 0 to 10 V, 1 to 10 V) for Dimming Control
• Provide the wall Switch function to Control the Brightness of the Dimming Ballast
• Provide The Dry Contact to trigger the Brightness of the Dimming Ballast
• Supports Modbus RTU and DCON Protocols
• 2500 VDC Intra-Module Isolation
• ±2 kV SURGE,±4 kV ESD and EFT Protectio

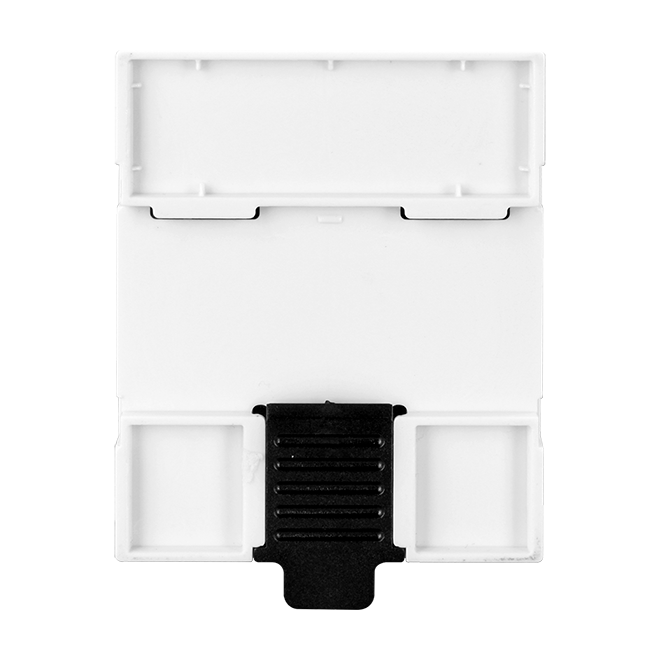

• DIN-Rail Mounting

Introduction

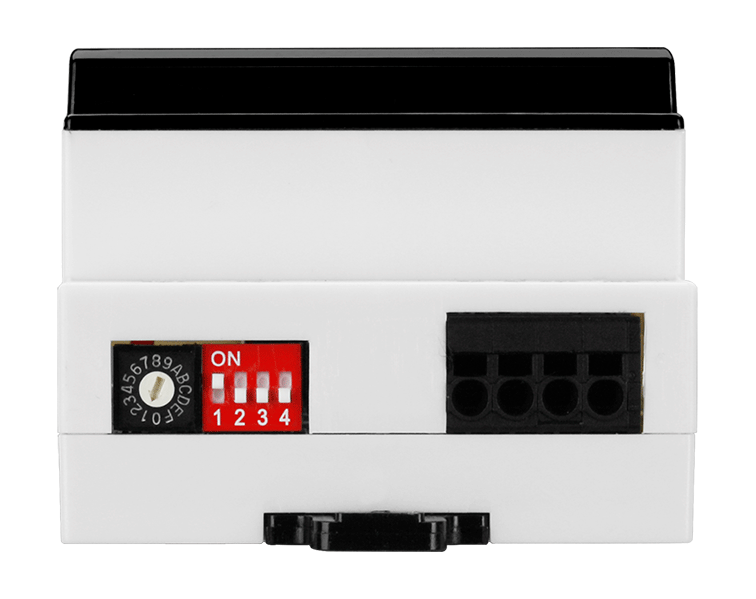

The LC-223H is an easy-to-use dimming ballast control module that can be easily installed and operated without requiring specialist knowledge or skills. The brightness of a fluorescent lamp can be controlled using a dimmer, either via digital input or a host controller. The digital input can be used to directly control the light value of the luminous flux in sequence from 10% to 100%, without the need for a remote host controller. 4 kV ESD,2kV SURGE protection and 2500 VDC intra-module isolation are also provided. When required, communication with the LC-223H is programmable based on the Modbus RTU/DCON protocol, with the added benefit that diff erent addresses can be set via hardware configuration.
