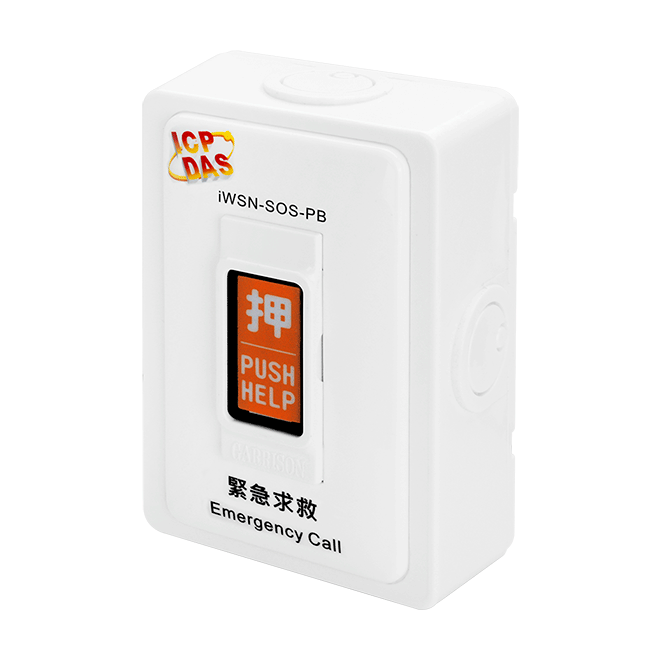

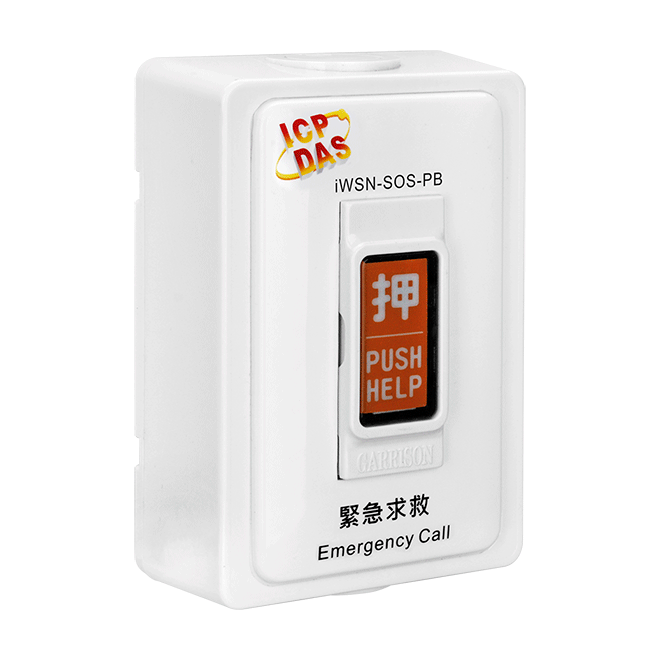

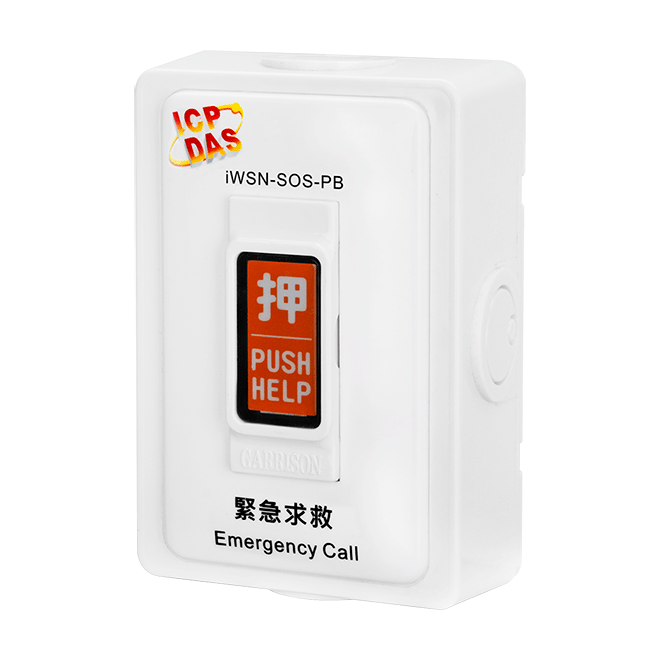

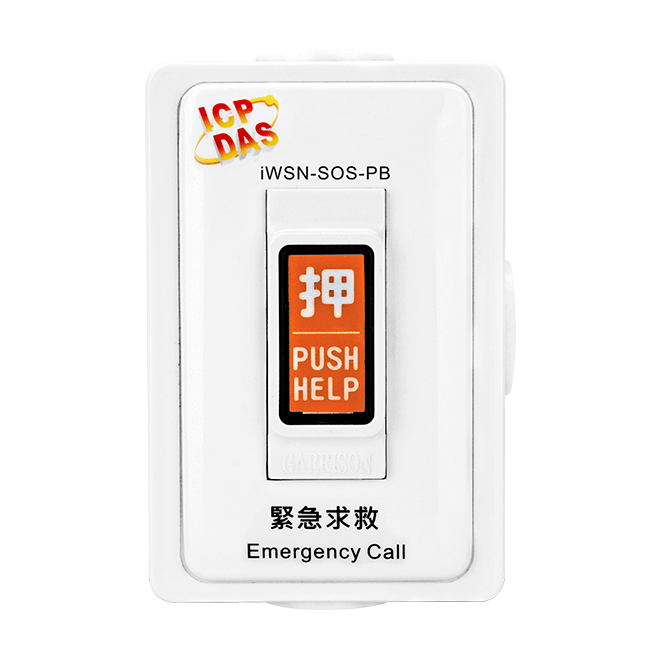

The iWSN-SOS-PB series are wireless emergency call button products available in Indoor, outdoor waterproof, and handheld types, through sub-1G RF communication interface, they can achieve real wireless deployment. They provide emergency help function, improve protection for personal safety. This system is very suitable for use in a public area. For example, public toilets, hospitals, nursing homes, open campuses and large parking lots, etc. The iWSN-SOS-PB series is installed with a CR-123A battery that delivers reliable electricity and reduces the cost of wiring. It can achieve emergency information transmission and meet requirements of low energy consumption, wireless communication, and emergency monitoring, etc. It can greatly reduce the time and human resources required for system implementation and maintenance.
| RF | |
| Channels | 0 ~ 15 (Selectable by DIP Switch) |
| Group ID | 0 ~ 3 (Selectable by DIP Switch) |
| Radio Frequency | 433.1000 ~ 434.6000 MHz |
| Transmission Power | 9±1dBm (PA Off) / 18±1dBm (PA On) |
| Transmission Distance (LoS) | 50 m |
| Node ID | 1 ~ 31 configured by DIP switch |
| Working Duty | 1 / 10 / 30 / 60 Secs. 3 / 5 / 10 / 30 Mins. (Selectable by DIP Switch) 1 Sec.(Emergency Triggered Only) |
| Antenna | |
| Type | 0 dBi Spring antenna(Omni-directional) |
| Power | |
| Consumption | 0.596mAh@1 Day |
| Battery | 1 x CR123A (3.0 VDC) Battery Life: 2 years (Working Duty: 1 Min.) |
| Mechanical | |
| Dimensions (mm) | 92 x 136 x 52(W x L x H) |
| Installation | Wall-mount |
| Environmental | |
| Operating Temperature | -25 ~ +60°C |
| Storage Temperature | -30 ~ +80°C (No battery included) -20 ~ +45°C (Battery included) |
| Humidity | 20 ~ 65% RH, Non-condensing |
