IR-712A

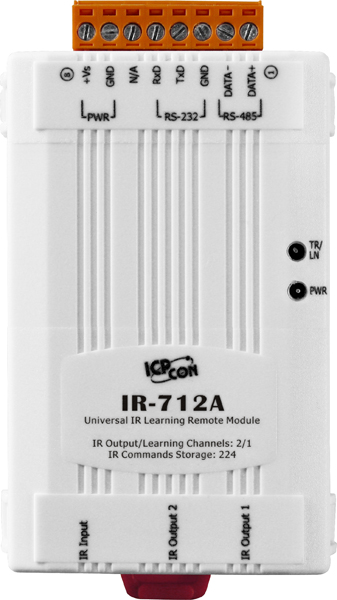

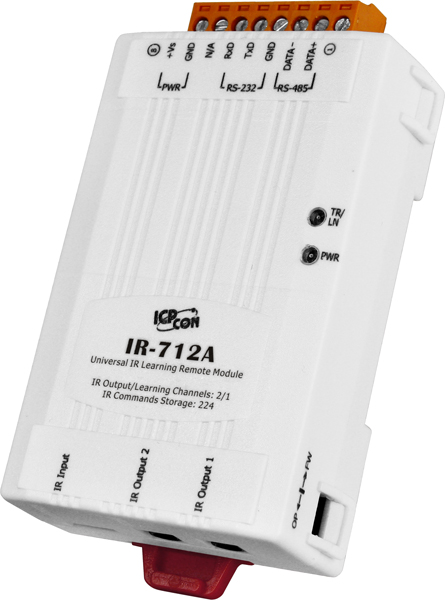

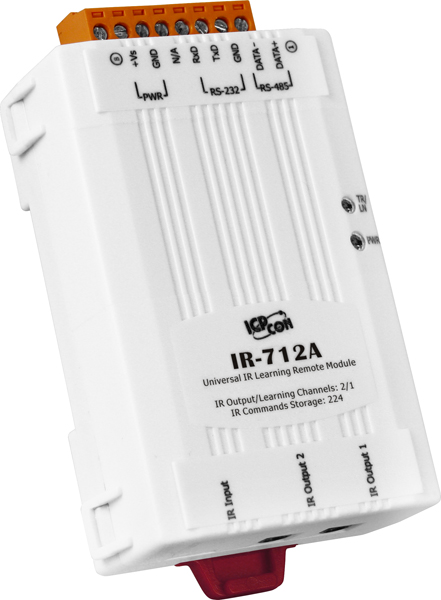

The IR-712A (with 2 CA-IR-SH2251 & 1 CA-0910) is a universal IR (infrared) learning remote module which can learn IR remote commands of diverse electronic devices. The learning commands can be stored in the module or saved to a file. The IR-712A supplies 2 IR output channels for individual or simultaneous control on multiple devices. The accompanied RS-232 and RS-485 interfaces with Modbus/RTU protocol provide flexible expansion and control on the modules. The software utility provides users with easy configuration, learning, test and storage of IR commands. Minimzing the amount of IR remote controls and utilizing this module that can be easily integrated with Modbus master devices (e.g. PAC and PLC), the IR-712A further simplifies smart home and building automation for you.

Application

• Home Entertainment Devices
• Video Conferencing System
• Surveillance System
• e-Classroom service
• Lighting Scenario Control
• Home and Building Automation

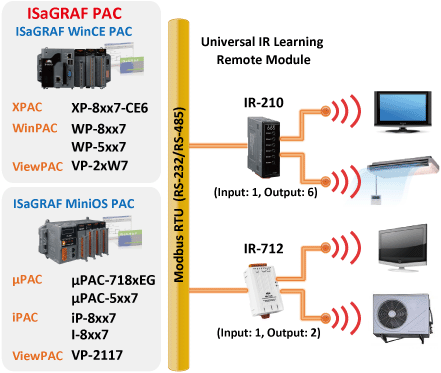

• ISaGRAF PAC with the IR Remote Application

• 2 IR output channels for controlling multiple devices
• 1 IR learning input
• IR command storage: 224
• Supports 6 learning IR carrier frequencies: 32.768, 36, 37.037, 38, 40 and 56 kHz
• Supports RS-232 and RS-485 serial interface
• Supports function code 0x06/0x10 of Modbus/RTU protocol for IR emitting
• Assignable Modbus Network IDs: 1~247
• Baud rate settings: 9600, 19200, 38400, 57600 and 115200 bps
• Configurable NONE / ODD / EVEN parity and 1 or 2 stop bits
• Provides transmitting / learning and power indication LEDs
• Built-in Watchdog

Utility

IR-712A Utility supports the OS of Windows XP, Vista and Windows 7 with .NET framework 4.0 platforms. IR-712A Utility provides the functions as follows:

• IR quantity configuration
• IR commands learning and testing
• Save IR learning commands to files
• Get/Set IR learning commands from/to IR-712A
• Reference to Modbus commands
• Set/Reset basic settings of IR-712A
