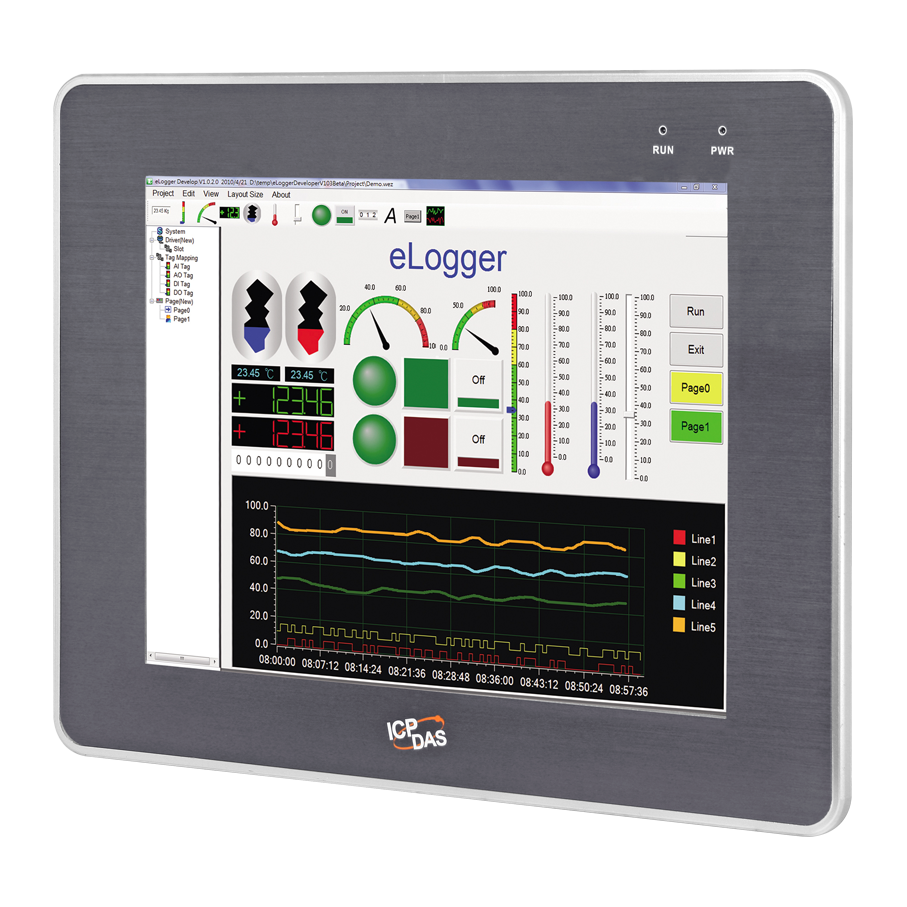

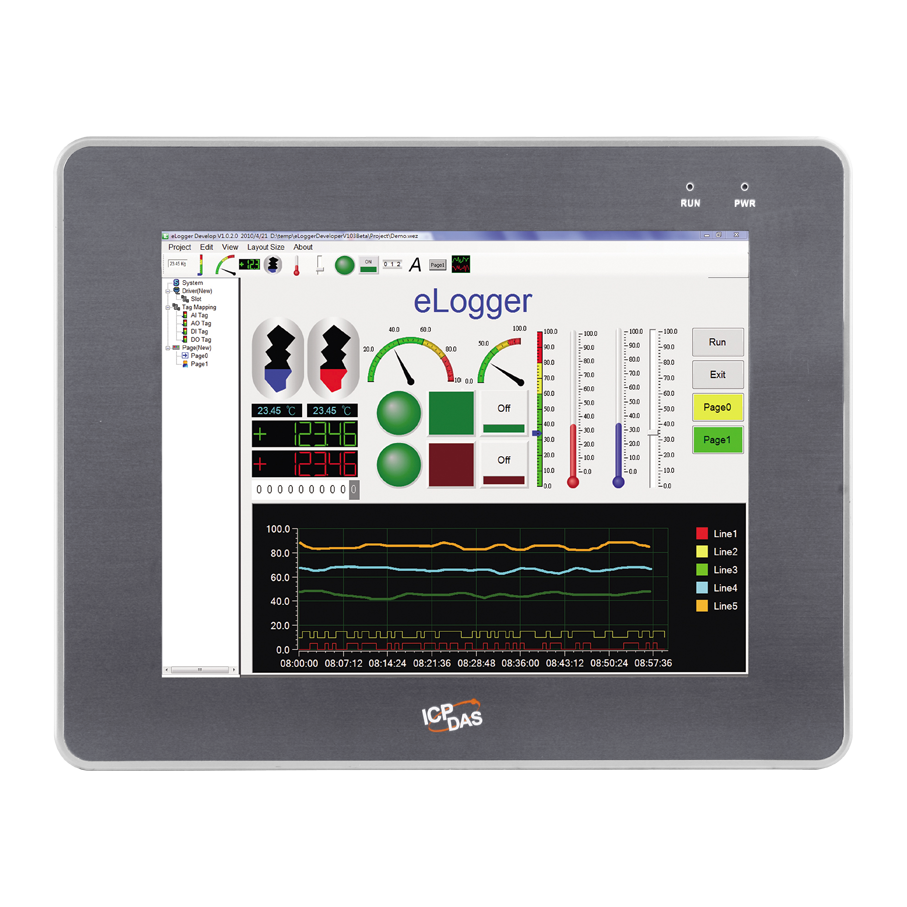

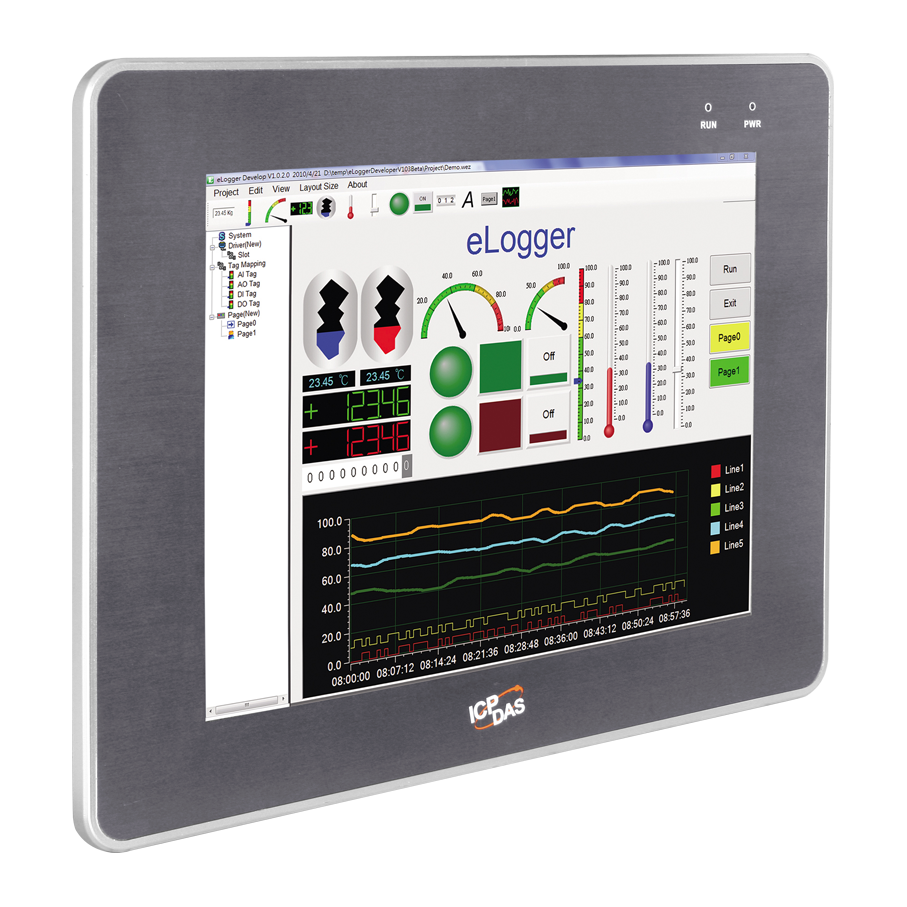

The WES7 series are a Panel PC that combines computing, I/O, and operator interface into a single unit, providing the perfect solution for integrating HMI, data acquisition and control in an individual PAC. The WES7 series are equipped with an Intel Atom E3827 CPU, TFT LCD and a variety of connectives including dual Gigabit Ethernet, USB port, RS-232 and RS-485 interface. The WES7 series has a pre-installed operating system in the built-in mSATA SSD, and storage can be expanded from a Compact Flash slot. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand harsh environments such as: sprayed water, humidity and extreme dust. Designed to operate over a wide -20 ~ 60 °C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts.
LCD
Diagonal Size
10.4”
Resolution
800 x 600
Brightness (cd/m2)
400
Brightness (cd/m2)
400
Contrast Ratio
500 : 1
LED Backlight Life (hrs)
50,000
Touch Panel
Yes, 5-wire, resistive type; light transmission: 80 %
LED Indicator
2 (Run, PWR)
System Software
OS
Microsoft Windows Embedded Standard 7 SP1
Framework Support
.Net Framework 3.5, 4.0, 4.5
Embedded Service
IE11, FTP Server, IIS 7.0, ASP (Java Script, VB Script)
SDK Provided
Dll for Visual Studio.Net
Multilanguage Support
English, German, French, Spanish, Portuguese, Russian, Italian, Korean, Simplifi ed Chinese, Traditional Chinese
CPU Module
CPU
E3827 (1.75 GHz, 64-bit dual core)
SDRAM (DDR3)
2 GB
MRAM
128 KB
Flash (SSD)
mSATA slot with one 32 GB SSD
EEPROM
16 KB
Memory Expansion
CF slot with a 16 GB CF card (support up to 32 GB)
RTC (Real Time Clock)
Provide second, minute, hour, date, day of week, month, year
64-bit Hardware Serial Number
Yes, for software copy protection
Dual Watchdog Timers
Yes (0.8 second)
Rotary Switch
Yes (0 ~ 9)

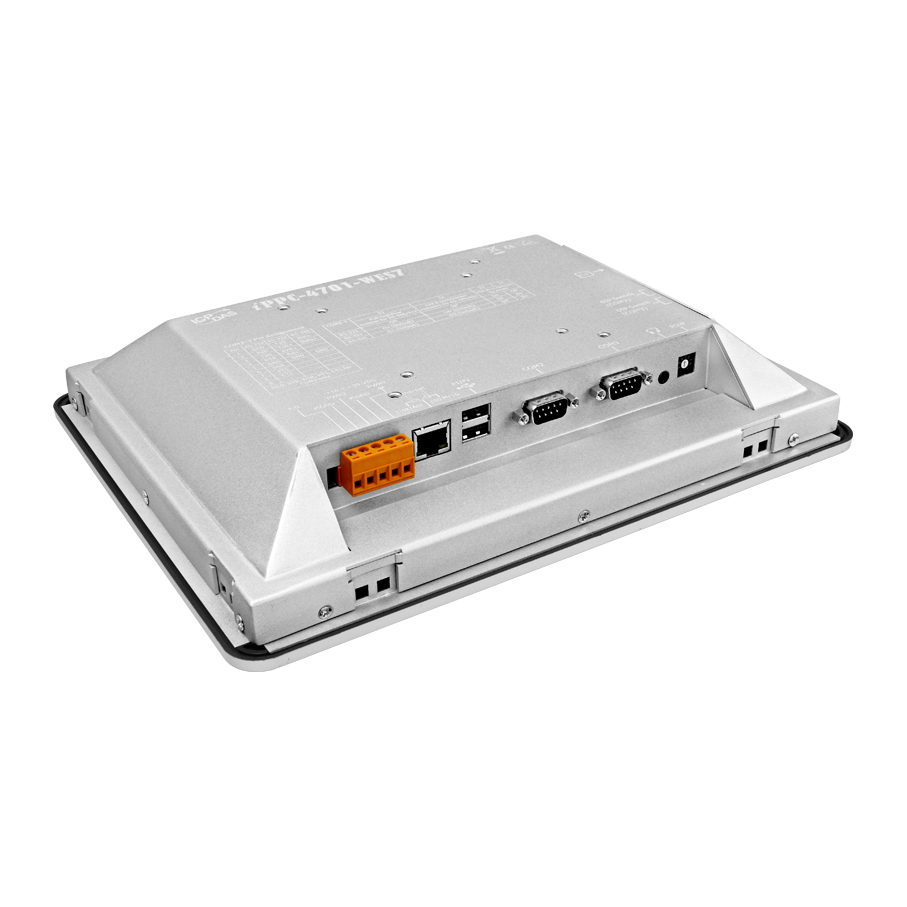

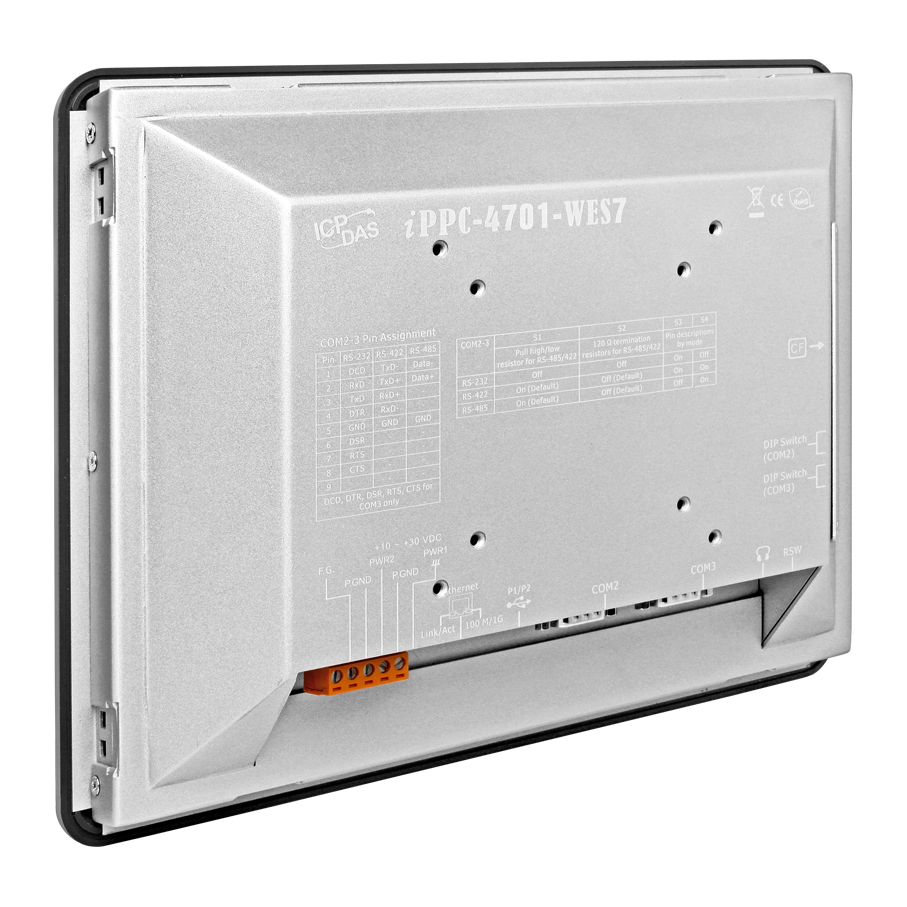

Communication Ports
Ethernet
1 x RJ-45 10/100/1000 Base-TX
USB 2.0
2
COM 2
RS-232/RS-422/RS-485
COM 3
RS-232/RS-422/RS-485
Audio
Earphone-out
Mechanical
Dimensions (W x H x D), Unit: mm
291 x 229 x 53
Panel Cut-Out (W x H, unit: mm)
274 x 211, ±1
Installation
Panel Mounting, VESA Mounting (75 x 75, 100 x 100)
Ingress Protection
Front panel: NEMA 4/IP65
Environmental
Operating Temperature
-20 °C ~ +60 °C
Storage Temperature
-20 °C ~ +70 °C
Ambient Relative Humidity
10 % ~ 90 % RH (non-condensing)
Power
Input Range
+10 VDC ~ +30 VDC
Redundant Power
Yes
Isolation
1500 VDC min
Consumption
22 W
