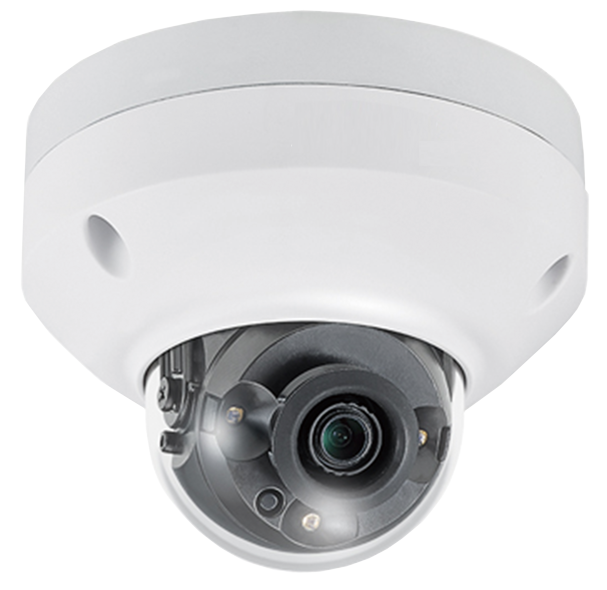

iCAM-MR6322 is an HD 30M-Rage IR Fixed Dome IP Camera in the M features 1080p at 30 frames per second, built-in Sense up+ technology to deliver stunning video in low-light conditions, and intelligent video surveillance (IVS) functions. Utilizing intelligent image signal processing, HDR, AGC control, and 3D Noise Reduction, the combination successfully delivers the ultimate low-light image without motion blur. The support of PoE, privacy masking, white balance, as well as the minimum illumination 0.13 Lux at F2.0 can certainly satisfy multiple applications.
| Alarm and Event | |
|---|---|
| Alarm Events | Files uploaded via HTTP, SMTP, FTP |
| Alarm Triggers | Motion Detection, Tampering Detection, Advanced Motion Detection |
| Camera | |
|---|---|
| Aperture | F2.0 |
| Field of View | 90° |
| Image Sensor | 1/2.7, CMOS |
| Lens | 4 mm |
| Max. Resolution | 1920 x 1080, 2MP |
| Video | |
|---|---|
| Streams | 4 configurable streams in H.264 and Motion JPEG, configurable frame rate and bandwidth |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Mbps Base-T |
| PoE | Yes |
| Protocol | IPv4, IPv6, TCP, UDP, HTTP, HTTPS, SMTP, MQTT, QoS, SNMP, SNMP Trap, NTP, DDNS, UPnP, FTP, ARP, DHCP, PPPoE, DNS, RTSP, RTCP, Telnet, ICMP, IGMP, ONVIF Profi le S, SDDP, Bonjour, 802.1x, SSL/TLS |
| ONVIF | Profile S |
| Power | |
|---|---|
| Consumption | DC12V, 4.5W PoE, 5.6W |
| Powered from PoE | Yes |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 110 89(H) mm |
| Ingress Protection Rating | IP67 |
| Environment | |
|---|---|
| Operating Temperature | -40°C +50°C (-40°F 122°F) |
| Humidity | 10% ~ 90% |
