The I-7531 has officially been phased out and will no longer be available. It has now been replaced by I-7531-FD.

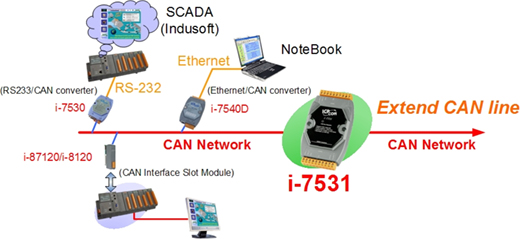

Application Architecture
I-7531 is a CAN repeater used to establish a physical coupling of two or more segments of a CAN bus system. Users can implement tree or star topologies as well as long drop lines with I-7531. Connecting via I-7531, the division of a CAN system into several subsystems increases the maximum number of bus nodes. I-7531 is an optically isolated CAN repeater which provides 2500 Vrms of optical isolation. It allows you to separate and protect critical segments of the system from the rest of a CAN network. Its galvanic isolation isolates both CAN segments from each other as well as from the power supply. The CAN connection of I-7531 is through terminal blocks. A power supply of 10-30 VDC is required. I-7531 is housed in a rugged DIN-Rail mountable box, making it easy to install in an industrial cabinet. I-7531 can be used in CANopen, DeviceNet and generic ISO-11898 standard applications.
Our mission is to provide the absolute best customer experience in industrial automation and electronics, without exception.
Subscribe to our mailing list today and join thousands of others who want to stay up-to-date with the latest news in data acquisition and industrial data communication.
ICP DAS USA is a leading manufacturer of industrial data acquisition, data communication, programmable controllers, wireless and software solutions.
User's Manual
Pin Assignment
Wire Diagram
Block Diagram
