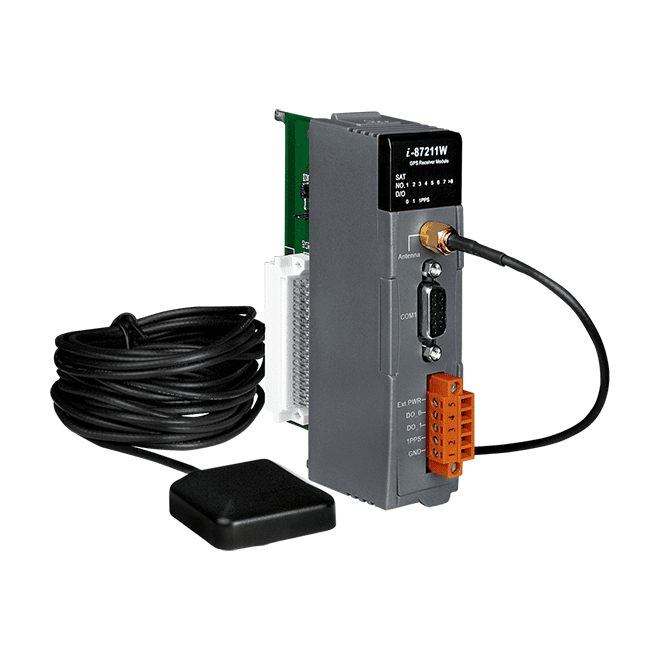

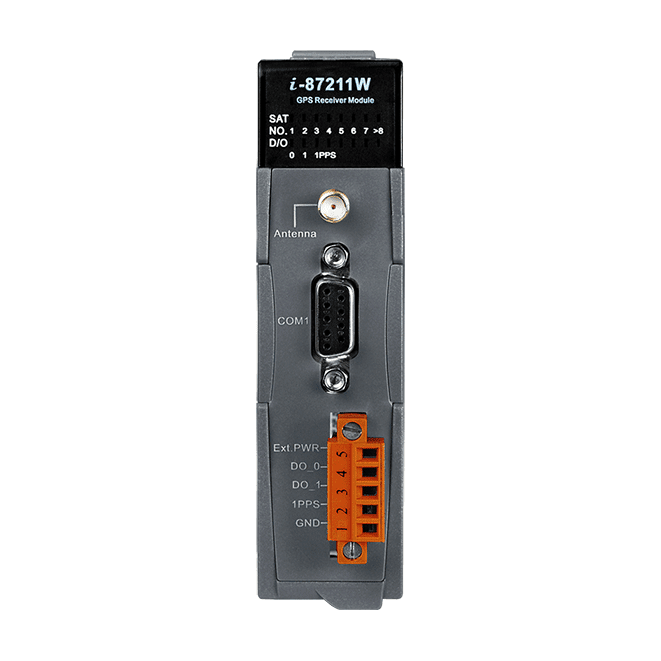

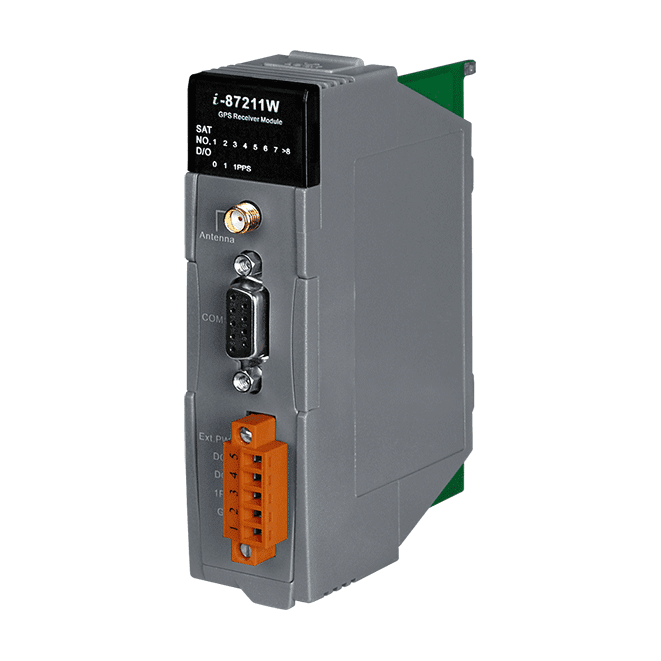

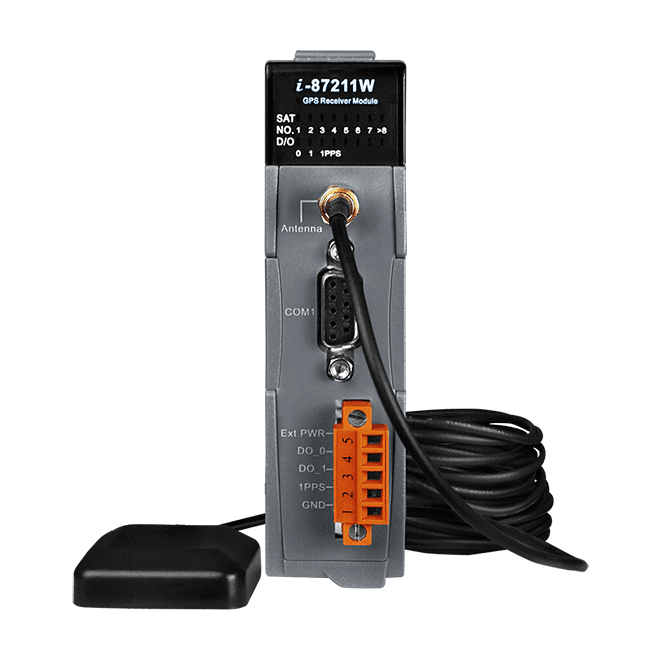

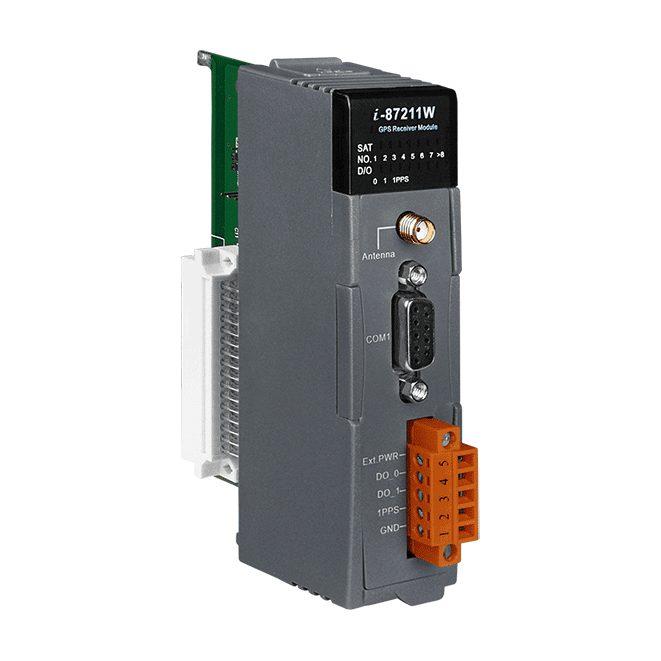

I-87211W-G

$559.00

GPS Receiver Module with 2 DO and 1 PPS output. Supports operating temperatures from -25°C ~ +75°C

Availability: IN STOCK | FASTEST DELIVERY : Sunday, Oct 11 | Enter ZIP below for shipping options

QTY

Add to Quote

Buy With One Click

Share On:
Categories:	Industrial GPS Receivers
Review:	Write your review
Resources:	User's Manual Quick Start Data Sheet DCON Utility

Introduction

The I-87211W-G, a new GPS solution for GPS Receiver module of I-87K family in ICP DAS, featuring high sensitivity, low power consumption and ultra small form factor with DCON and GPS protocols. This powerful item provides you with superior sensitivity and outstanding performance even in the harshest environment. The I-87211W-G provides extra 2-channel DO and 1-channel PPS for users. PPS signals can be used for precise timekeeping and time measurement. One can combine the PPS functionality with another as time synchronization source. Therefore, the I-87211W-G can be a powerful GPS module as well as a general purpose GPS module with RS232 interface in PACs and remote I/O expansion units. It can also be applied in automotive navigation, Personal positioning and navigation, Marine navigation, Satellite time correction and etc…

Features

Support PACs and Remote I/O expansion units of ICP DAS
Support 32-channel GPS and NMEA v0183 v3.01(Baudrate 9600 bps)
RS-232 supports NMEA v0183 v3.01 format or DCON protocol
Built-in 2-channel DO, 1-channel PPS(1 pulse per second), 1 RS-232 port
PPS: 100 ms pulse output/sec for precise timekeeping and time measurement
With various system LED indicators
DIN Rail mounting

RoHS WEEE

Applications

Automotive navigation
Personal positioning and navigation
Marine navigation
Satellite time correction
Precise timekeeping and time measurement

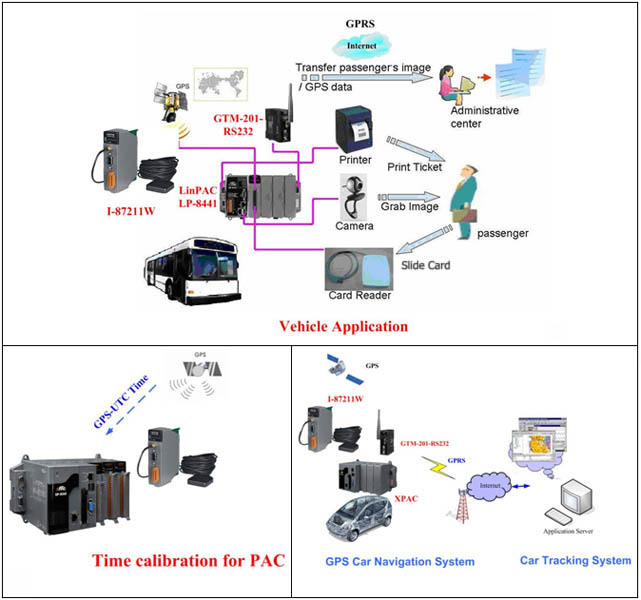

I87211 application

Specifications

LED Indicators
Status	1 x Power/Communication 3 x Digital Output 8 x GPS

GPS/GNSS
Acquisition Time	Cold Start (Open Sky)=42 s (typical)
Chip	MediaTek solution
Frequency	L1 1575.42 MHz, C/A code
Max. Altitude	<18,000 m
Max. Velocity	<515 m/s
Position Accuracy	Capable of SBAS (WAAS, EGNOS, MSAS)
Protocol	NMEA 0183 version 3.01 (Baudrate 9600 bps)
Sensitivity	Tracking: Up to -158 dBm Cold start: Up to -142 dBm
Support Channels	32

Digital Output
Channels	2 (Sink)
Type	Non-isolated Open Collecto
Load Voltage	+5 VDC ~ +30 VDC
Load Current	100 mA

COM Ports
Ports	1 x PPS (Pulse per second output (Default 100 ms pulse/sec)) 1 x RS-232 Interface (GPS information output)

Power
Consumption	0.75 W (max.)

Mechanical
Dimensions (mm)	30 x 91 x 114 (W x L x D)

Environment
Operating Temperature	-25 ~ +75°C
Storage Temperature	-40 ~ +85°C
Humidity	10 ~ 90% RH, Non-condensing
