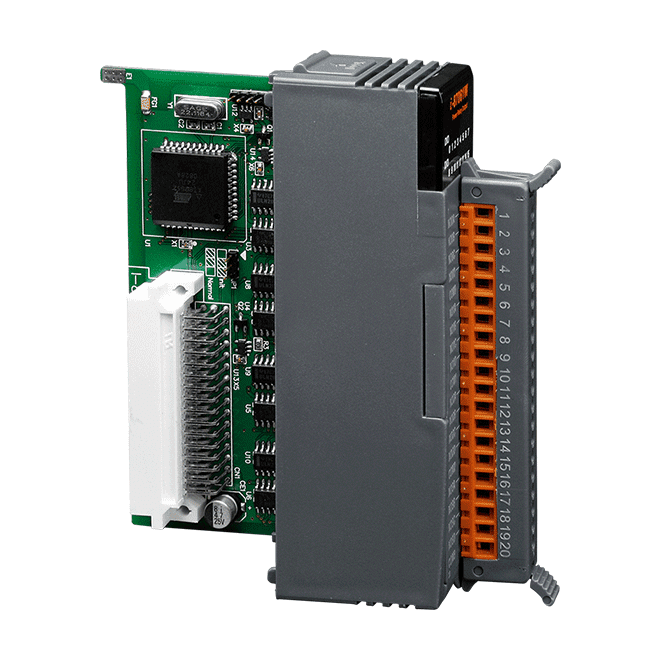

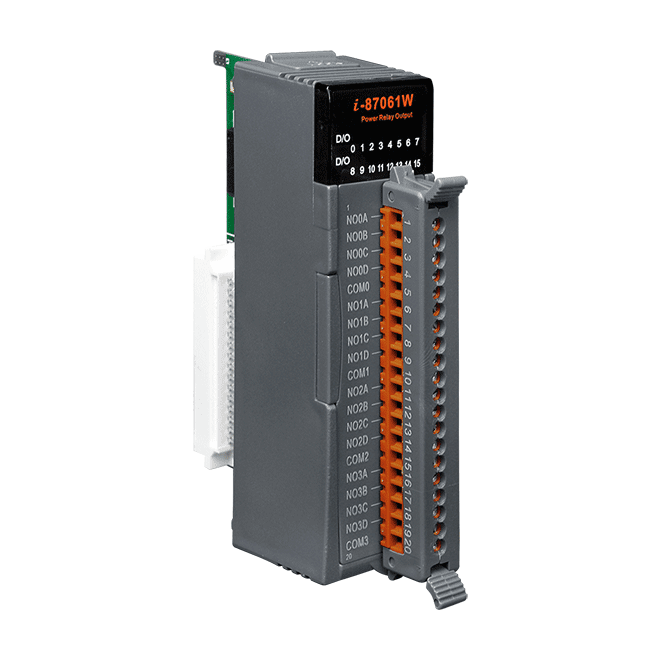

The I-87061W is a 16-channel power relay output module with the output channels partitioned into four groups, where each group provides four channels that share a single COM point. The I-87061W modules include 16 LED indicators that can be used to monitor the status of the relay output, and options for configuring both power-on and safe relay output values are also available. 4 kV ESD protection and 3750 VDC intra-module isolation are provided as standard to enhance the noise protection capabilities in harsh industrial environments.
• 16-channel Power Relay Output partitioned into four groups, where each group provides four channels that share a single COM point.
• Configurable Power-on Value Settings
• Configurable Safe Value Settings
• Dual Watchdog
| CPU Module | |
|---|---|
| Watchdog Timer | Yes, Module (1.6 Seconds), Communication (Programmable) |
| Isolation | |
|---|---|
| Intra-module Isolation | 3750 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | ± 4 kV Contact for Each Terminal ±8 kV Air for Random Point |
| LED Indicators | |
|---|---|
| Status | 1 x Power and Communication 16 x I/O |
| Relay Output | |
|---|---|
| Channels | 16 (Form A) |
| Type | Power Relay |
| Contact Material | Silver Tin Alloy |
| Contact Rating | Form A: 10 A @ 250 VAC/per Module COM point 10 A @ 24 VDC/per Module COM point Max. Single Relay Load Current 5 A at 25°C Min. Contact Load: 10 mA @ 5 V |
| Operate Time | 10 ms (Max.) |
| Release Time | 5 ms (Max.) |
| Electrical Endurance | 1 105 ops. |
| Mechanical Endurance | 2 107 ops. |
| Power on Value | Yes |
| Safe Value | Yes |
| COM Ports | |
|---|---|
| Ports | 1 x RS-485 |
| Baud Rate | 1200 ~ 115200 bps |
| Data Format | N, 8, 1 |
| Protocol | DCON |
| Power | |
|---|---|
| Consumption | 1.9 W Max. |
| Mechanical | |
|---|---|
| Dimensions (mm) | 30 x 114 x 110 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
