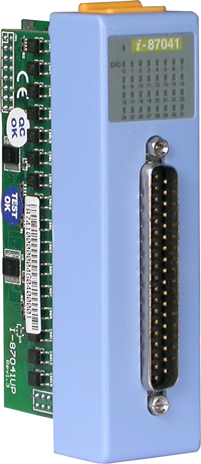

The I-87041 has officially been phased out and will no longer be available. It has now been replaced by I-87041W.
I-87041 has a serial bus (RS-485) communication interface with DCON protocol. It can be plugged into our WinCon, LinCon, I-8000 controllers and I-87K, RF-87K I/O expansion units. I-87041 is an Isolated Digital Input Module with 32 channels. It's input type is Isolated digital input. I-87041 is a serial cartridge based I/O module that offers the ultimate in cost effective flexibility.I-87041 |
|
Digital Output Channels |
32 (Sink) |
Digital Output Type |
Isolated Open-collector |
Max Load Current |
100 mA/ Channel |
Load Voltage |
5Vdc to 30Vdc |
Intra-module Isolation, Field to Logic |
3750Vrms |
LED Display |
1 LED as Power/ Communication Indicator |
| 32 LEDs as Digital Output Indicators | |
Power Consumption |
1.5W |
Operating Temperature |
-25°C to 75 °C |
Storage Temperature |
-30°C to 75 °C |
Humidity |
5% to 95%, Non-condensing |
| Dimensions | 31mm x 67mm x 114mm (W x D x H) |
