I-8212W-3GWA

$0.00

Industrial Tri-band 3G/GSM/GPRS module. Supports operating temperatures from -25°C ~ +75°C. I-8212W is phased out and replaced by I-8213W-4GE.

Product Unavailable

Share On:
Categories:	I-8000W High Performance Modules \| Industrial GPS Receivers
Review:	Write your review
Resources:	User's Manual Data Sheet Quick Start Software PIN Assignment SIM Card How to Get a Data Plan AT&T Compatibility Certification

The I-8212W-3GWA has officially been phased out and will no longer be available. It has now been replaced by I-8213W-4GE.

The I-8212W-3GWA is an industrial Tri-band 3G module that work on frequencies of WCDMA 2100/1900/850 MHz and GSM 850/900/1800/1900 MHz. These modules utilize the 2G/3G network for convenient and inexpensive data transfer from remote instruments, meters, computers or control systems in either live data or packet data. These modules has the integrated TCP/IP stack so that even simple controllers with serial communications ports can be connected to the modem without the need for special driver implementation. With the features of theirs, the systems can be SMS and GPRS or 3G connection applications with our PAC series like iPAC-8000, WinPAC-8000, LinPAC-8000 or XP-8000.

Applications

Application 1:

Application 1

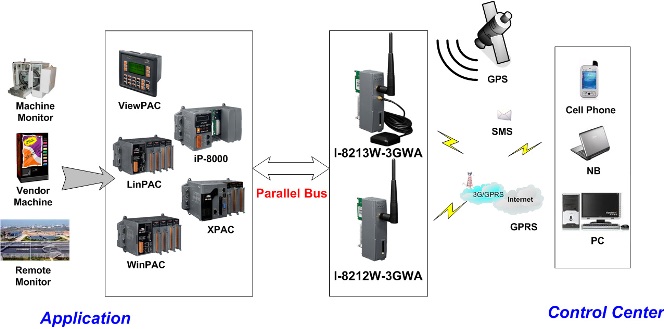

Application 2:

Application 2

Features

Supports Tri-band UMTS 2100/1900/850 MHz and Quad-band GSM 850/900/1800/1900 MHz
4 KV ESD Protection
Designed for WCDMA, GPRS and SMS Applications
Supports TCP Server, TCP Client, UDP Client Connection stack from 3G or GPRS
Support Standard AT Commands
High Reliability in Harsh Environment
Support XP-8000, WinPAC-8000, LinPAC-8000, ViewPAC, iPAC-8000

Specifications

3G System
Frequency Band	UMTS : 2100/1900/850 MHz
Data Transmission	UMTS / HSDPA / HSUPA Downlink transfer: Max. 7.2Mbps; Uplink transfer: Max 5.76Mbps
GSM/GPRS System
Frequency Band	850/900/1800/1900 MHz
GPRS connectivity	GPRS class 12/10; GPRS station class B
DATA GPRS	Downlink transfer: Max. 85.6 kbps; Uplink transfer: Max 42.8kbps
CSD	Max. download speed 85.6 kbps; Uplink transfer: Max 42.8 kbps
Coding Schemes	CS 1, CS 2, CS 3, CS 4
SMS System
SMS	MT, MO, CB, Text and PDU mode
LED Indicators
Power	Red color
GSM/GPRS	Yellow color
Power
Frame Ground Protection	ESD, Surge, EFT, Hi-Pot
Power Consumption	Idle: 0.16 A @ 5 VDC; Data Link: 0.2 ~ 1.64 A (peak) @ 5 VDC
Mechanical
Casing	Plastic
Dimensions (W x L x H)	30mm x 85mm x 114mm
Environmental
Operating Temperature	-25°C ~ +75 °C
Storage Temperature	-30°C ~ +80 °C
Humidity	5 ~ 95% RH, non-condensing
