I-8040W-G

$449.00
32-channel Isolated Digital Input Module. Replacement unit for I-8040.
Availability: IN STOCK | FASTEST DELIVERY : Saturday, Oct 10 | Enter ZIP below for shipping options
Get Shipping Options
QTY
-
+
Add to Quote
Buy With One Click
Share On:
Categories: I-8000W High Performance Modules
Review: Write your review
Resources:

32-channel Isolated Digital Input Module with 32 input channels, digital input and power LEDs

Specifications

Digital Input
Input Channels 32 (Sink/ source)
Input Type One Common for All Digital Inputs
On Voltage Level +10V ~ +30V
Off Voltage Level +4V max
Input Impedance 3K Ohms, 0.5W
Intra-module Isolation, Field to Logic 3750Vrms
4KV ESD Protection Contact for each channel
LED Display
1 LED as Power Indicator
32 LEDs as Digital Input Indicators
Power
Power Consumption 0.13A@5V = 0.65W ,+/- 5% For Hardware version 1.6
Environment
Operating Temperature -25 to 75 °C
Storage Temperature -30 to 85 °C
Humidity 5 to 95%, Non-condensing
Dimensions
30mm x 85mm x 114mm (W x L x H) Detail



Add a review

Your email address will not be published. Required fields are marked *

Overall ratings
Select Rating *
You must be signed in to review! Click here to sign in.
Related Products

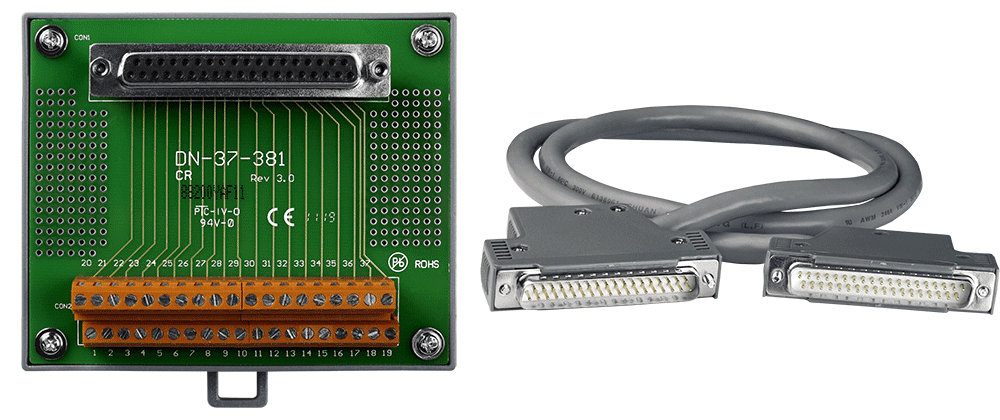

DN-37-381
